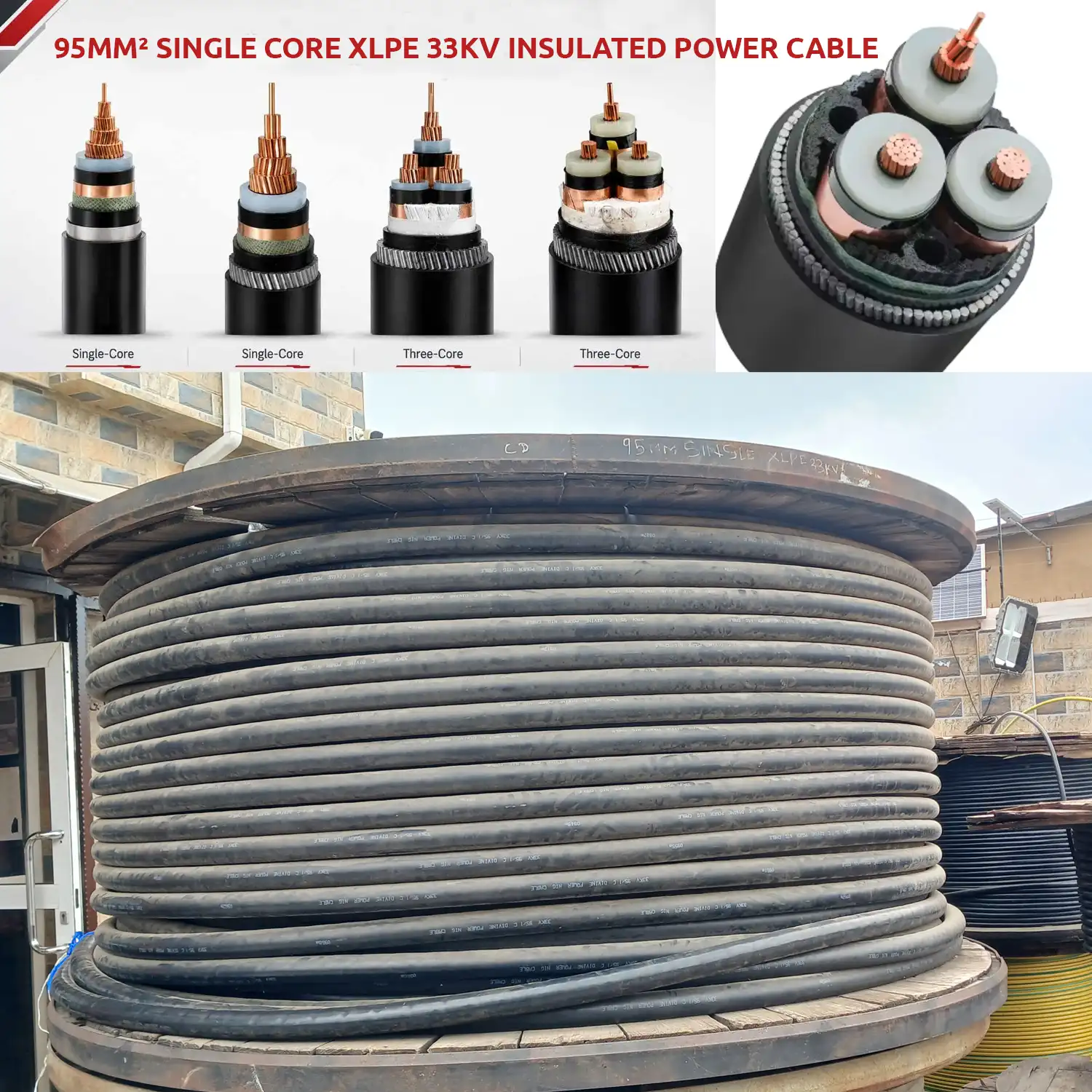

95mm² Single Core XLPE 33KV Insulated Power Cable – C.Divine

Buy 95mm² Single Core XLPE 33KV Power Cable in Nigeria

Choosing the correct cable is one of the most important decisions when designing and installing a high-voltage electrical distribution system. Cable conductor size, insulation, voltage rating, installation method, fault level, environmental conditions, and applicable standards must all be considered before a cable is specified.

The C.Divine 95mm² Single Core XLPE 33KV Insulated Power Cable is designed for applications requiring a substantial conductor cross-sectional area and 33kV-class insulation.

The 95mm² size is commonly considered for higher-load electrical distribution applications compared with smaller 50mm² and 70mm² conductors. Published 33kV cable data also shows 95mm² single-core cable constructions being used in high-voltage distribution applications, with the exact ampacity depending on the cable construction and installation conditions.

For customers in Nigeria looking for where to buy 95mm² XLPE 33KV power cable in Lagos, this product is suitable for consideration in professionally engineered electrical projects.

What Is a 95mm² Single Core XLPE 33KV Cable?

A 95mm² Single Core XLPE 33KV Power Cable is a high-voltage cable containing one electrical conductor with a nominal cross-sectional area of 95mm² and XLPE insulation designed for 33kV-class power distribution.

XLPE means Cross-Linked Polyethylene. It is widely used as an insulation material for medium-voltage and high-voltage power cables because of its electrical insulation properties and thermal characteristics.

A typical 33kV XLPE cable construction can include:

• Compacted stranded conductor
• Conductor screen
• XLPE insulation
• Insulation screen
• Metallic screen
• Protective bedding where required
• Armor where specified
• Outer sheath

The exact construction depends on the manufacturer’s design and applicable cable standard. Published 33kV cable constructions commonly use conductor screens, XLPE insulation, insulation screens, metallic screens and protective outer layers.

Key Features of C.Divine 95mm² XLPE 33KV Cable

1. 95mm² Single-Core Design

The 95mm² conductor size provides a substantial current-carrying path for high-voltage power distribution applications.

The actual allowable current depends on conductor material, cable construction, installation method, ambient temperature, grouping, soil conditions, and other engineering parameters.

2. XLPE Insulation

XLPE insulation provides reliable electrical separation around the conductor and is widely used for modern medium-voltage and high-voltage power cable systems.

For 33kV cable designs, published technical specifications commonly identify XLPE as the insulation system with a conductor operating temperature around 90°C under specified conditions.

3. 33KV Voltage Class

The 33kV class makes this cable suitable for appropriately designed high-voltage/medium-voltage distribution systems, substations, industrial facilities, transformers, and utility infrastructure.

4. Single-Core Configuration

The single-core configuration is particularly relevant to high-capacity power distribution systems where individual phase conductors are installed as part of the complete electrical system.

5. Suitable for Industrial Applications

The cable can be considered for factories, industrial estates, substations, power infrastructure, large commercial developments, utility projects, and other professional electrical installations.

Applications of 95mm² Single Core XLPE 33KV Cable

The C.Divine 95mm² XLPE 33KV cable can be considered for a variety of professionally engineered applications, including:

• 33kV electrical distribution networks
• Electrical substations
• Transformer connections
• Industrial power distribution
• Factory power systems
• Manufacturing facilities
• Utility power networks
• Power generation infrastructure
• Industrial estates
• Commercial infrastructure
• Construction projects
• Mining operations
• Processing facilities
• Infrastructure developments
• Underground power distribution
• Cable trench installations
• Power distribution stations
• Renewable-energy infrastructure
• Large electrical engineering projects

The final application must be confirmed by the responsible electrical engineer based on the cable’s complete technical specification.

95mm² 33KV XLPE Cable for Nigerian Electrical Projects

Nigeria has significant demand for reliable electrical infrastructure across industrial, commercial, construction, manufacturing, utility, telecommunications, oil and gas, mining, and renewable-energy projects.

The 95mm² Single Core XLPE 33KV Cable can be considered where the electrical design requires a 95mm² conductor within the applicable 33kV cable specification.

For Nigerian electrical contractors and project engineers, cable selection should consider the actual operating conditions rather than relying on conductor size alone.

Important factors include:

• Electrical load
• Cable length
• Voltage drop
• Installation method
• Ambient temperature
• Cable grouping
• Ground thermal conditions
• Short-circuit current
• Earthing arrangement
• Cable screen configuration
• Armor requirements
• Applicable standards

This ensures that the selected cable is appropriate for the specific project.

C.Divine XLPE 33KV Cable Size Chart

Below is a useful product comparison chart for commonly requested single-core XLPE 33kV cable sizes.

Cable Size	Cable Type	Voltage Class	Typical Application
50mm²	Single Core XLPE Power Cable	33kV	Industrial and power distribution
70mm²	Single Core XLPE Power Cable	33kV	Industrial and utility distribution
95mm²	Single Core XLPE Power Cable	33kV	Higher-load distribution and substations
300mm²	Single Core XLPE Power Cable	33kV	High-capacity industrial and utility distribution

Important: Cable dimensions, current ratings, insulation thickness, screen configuration, armor, weight, and overall diameter vary according to the manufacturer’s construction and applicable standard. Always confirm the C.Divine technical datasheet before final project specification.

50mm² vs 70mm² vs 95mm² vs 300mm² XLPE Cable

Selecting the correct conductor size is important for electrical system performance.

50mm² 33KV XLPE Cable

The 50mm² option may be suitable for electrical circuits where the calculated load, installation conditions, and required short-circuit performance fall within the cable’s specified ratings.

70mm² 33KV XLPE Cable

The 70mm² option provides a larger conductor cross-sectional area than 50mm² and can be considered for circuits requiring higher ampacity under the applicable installation conditions.

95mm² 33KV XLPE Cable

The 95mm² cable provides a further increase in conductor size and is suitable for higher-load applications when supported by the electrical design.

300mm² 33KV XLPE Cable

The 300mm² option is a substantially larger conductor intended for high-capacity power distribution applications.

Published cable data illustrates that conductor size significantly affects current-carrying capability, but actual ratings vary according to installation method and cable construction.

95mm² Single Core XLPE 33KV Armored Cable

Many customers searching for high-voltage cable specifically use the term 95mm² Single Core XLPE 33KV Armored Cable.

Armor provides additional mechanical protection where required by the installation.

However, buyers should not assume that every single-core XLPE cable is armored. The armor type must be confirmed from the actual product specification.

For single-core AC cables, metallic armor selection is particularly important because magnetic effects and circulating currents can influence losses and cable performance. Published 33kV cable specifications commonly distinguish between aluminium wire armor for single-core cables and steel wire armor for multi-core constructions.

Therefore, if your project requires an armored 95mm² Single Core XLPE 33KV Cable, confirm the following before ordering:

• Armor material
• Armor construction
• Metallic screen
• Earthing arrangement
• Bonding method
• Installation method
• Cable standard
• Required short-circuit rating

XLPE Insulation Technology

XLPE is one of the commonly used insulation systems for modern power cables.

Electrical Insulation

XLPE provides electrical insulation between the conductor and metallic screen or other surrounding components.

Thermal Performance

XLPE cable systems are designed for continuous conductor operating temperatures within the limits specified by the applicable cable standard and manufacturer.

Long-Term Power Infrastructure

When correctly manufactured, selected, installed, terminated, and maintained, XLPE power cables can provide dependable long-term service in electrical distribution systems.

Suitable for High-Voltage Networks

XLPE technology is widely used in medium-voltage and high-voltage cable systems for utility, industrial and infrastructure applications.

Installation of 95mm² 33KV XLPE Cable

Installation of a 33kV cable should be performed by qualified electrical professionals.

Before installation, verify the following:

1. Voltage rating.
2. Conductor size.
3. Conductor material.
4. XLPE insulation specification.
5. Cable screen specification.
6. Armor construction, where applicable.
7. Installation route.
8. Minimum bending radius.
9. Cable pulling tension.
10. Cable spacing.
11. Earthing and bonding.
12. Short-circuit withstand capability.
13. Ambient temperature.
14. Soil thermal characteristics for buried cables.
15. Compatible termination kits.
16. Compatible jointing kits.
17. Testing requirements.
18. Commissioning requirements.

Published 33kV cable specifications provide specific bending-radius requirements depending on cable construction, demonstrating why the manufacturer’s installation instructions should always be followed.

33KV Cable Termination and Jointing

High-voltage cable termination and jointing require compatible accessories.

For a 95mm² 33kV XLPE cable, termination equipment should match the cable’s:

• Conductor size
• Voltage class
• Insulation system
• Screen construction
• Cable diameter
• Indoor or outdoor application
• Earthing arrangement

Specialist 33kV termination and joint kits are commercially available for cable ranges covering 50mm²–95mm², illustrating the importance of matching accessories to cable size and voltage class.

Improper termination can compromise the reliability of a high-voltage installation, so qualified cable jointers and electrical professionals should be used.

Where to Buy 95mm² XLPE 33KV Power Cable in Lagos Nigeria

If you are searching for where to buy 95mm² Single Core XLPE 33KV Insulated Power Cable in Lagos Nigeria, the C.Divine range is intended for professional electrical material sourcing.

Online listings in Lagos show active demand for 95mm² single-core 33kV XLPE cables, including listings in Ojo and other Lagos locations.

When purchasing high-voltage cable, however, buyers should verify the actual product specification rather than relying only on an online listing or product name.

Before ordering, confirm:

• 95mm² conductor size
• Single-core configuration
• 33kV voltage class
• Conductor material
• XLPE insulation
• Metallic screen
• Armor requirements
• Outer sheath
• Cable standard
• Drum length
• Technical datasheet
• Project requirements

Who Can Buy C.Divine 95mm² 33KV Cable?

This product is suitable for consideration by:

• Electrical contractors
• Electrical engineers
• EPC contractors
• Power system engineers
• Engineering consultants
• Industrial companies
• Factory owners
• Manufacturing companies
• Utility contractors
• Construction companies
• Infrastructure developers
• Substation contractors
• Power distribution contractors
• Electrical material distributors
• Electrical wholesalers
• Government projects
• Institutional projects
• Renewable-energy contractors

Why Choose C.Divine 95mm² XLPE Power Cable?

When sourcing electrical materials for major projects, buyers need products that match the engineering specification.

The C.Divine 95mm² Single Core XLPE 33KV Insulated Power Cable is positioned for customers looking for:

• 95mm² high-voltage cable
• 33kV XLPE cable
• Single-core power cable
• Industrial electrical cable
• Power distribution cable
• High-voltage electrical materials
• XLPE insulated cable
• Electrical cable in Lagos
• Electrical cable in Nigeria

For project applications, always request and verify the complete cable construction and technical documentation before purchase.

Order 95mm² Single Core XLPE 33KV Power Cable

The C.Divine 95mm² Single Core XLPE 33KV Insulated Power Cable is a high-voltage cable solution for appropriately engineered industrial, utility, infrastructure, substation, transformer, and power distribution applications.

Whether you need 50mm², 70mm², 95mm², or 300mm² Single Core XLPE 33KV Power Cable, the correct cable should be selected based on the project’s electrical load, installation conditions, fault requirements, cable construction, and applicable standards.

For customers searching Google for 95mm² Single Core XLPE 33KV Cable in Nigeria, 95mm² 33kV XLPE power cable in Lagos, 95mm² high-voltage cable, Single Core XLPE 33KV Armored Cable, or C.Divine electrical power cable, this product is designed for professional electrical power applications.

Choose the correct specification, use compatible 33kV accessories, and ensure installation, testing, termination, and commissioning are carried out by qualified electrical professionals.
