Description

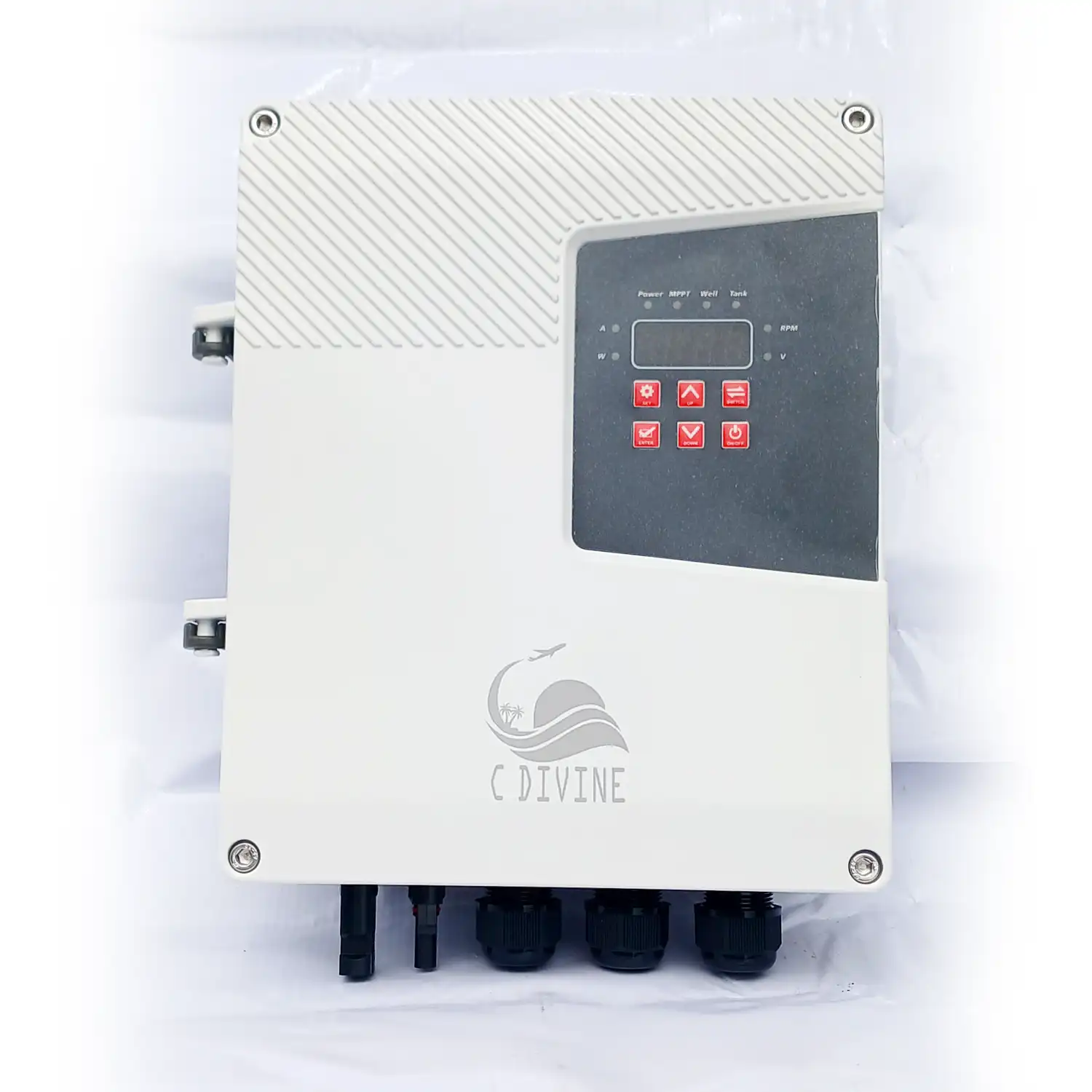

AC & DC Switching MPPT Solar Pump Controller – C.DIVINE

The AC & DC Switching MPPT Solar Pump Controller – C.DIVINE is a smart solar water-pumping controller designed to manage compatible AC and DC solar water pumps while maximising available solar energy through MPPT (Maximum Power Point Tracking) technology.

It is suitable for properly matched solar submersible pumps, deep-well pumps, borehole pumps, irrigation pumps and other compatible water-pumping systems. The AC/DC switching capability provides greater flexibility by allowing the pumping system to use solar power as the primary energy source and an appropriate AC electricity supply when required.

A typical hybrid solar pump controller receives DC electricity from solar panels, performs MPPT, and controls the pump output. Depending on the design, AC/grid or generator power can also be incorporated as a backup.

For customers in Lagos and across Nigeria searching for an AC/DC solar pump controller, MPPT solar pump controller, automatic solar pump controller, solar borehole pump controller, solar submersible pump controller or hybrid solar water pump controller, the C.DIVINE controller is designed for this application.

Important: The exact C.DIVINE controller’s supported pump horsepower, PV voltage range, AC voltage, DC voltage, output current, frequency and maximum PV capacity should be confirmed from the product nameplate/datasheet before installation. Do not assume that every AC or DC pump is compatible.

What Is an AC & DC Switching Solar Pump Controller?

An AC & DC Switching MPPT Solar Pump Controller is the control unit between the power source and a compatible solar water pump.

In a solar-powered system, the solar panels produce variable DC electricity. The controller manages this power and, where applicable, converts and regulates it to operate an AC pump. MPPT technology continuously tracks the solar array’s maximum power point so the system can make better use of available solar energy.

A hybrid controller can also incorporate an AC supply, such as utility electricity or a compatible generator, allowing the system to continue pumping when solar power is insufficient. Similar commercial hybrid controllers are designed to prioritise PV power while providing AC/grid backup.

Typical System

Solar Panels → C.DIVINE AC/DC Switching MPPT Controller → Solar Water Pump → Borehole/Well → Water Tank

With AC backup:

Solar PV + AC Supply → C.DIVINE Controller → Compatible AC/DC Pump

Key Features

1. AC & DC Power Switching

The C.DIVINE controller is designed for compatible systems requiring both solar DC and AC power.

This provides flexibility for installations where solar energy is the preferred power source but an AC backup is required.

Depending on the controller configuration, switching may be automatic or manually selected. Confirm the exact switching mode of your C.DIVINE model before installation.

Hybrid solar pumping controllers commonly provide automatic or manual transition between solar and AC sources.

2. MPPT Solar Technology

Maximum Power Point Tracking (MPPT) helps optimise the electrical operating point of the solar PV array.

Because solar irradiance changes throughout the day, the voltage and current available from solar panels are not constant.

MPPT technology allows the controller to track the PV array’s available maximum power within its specified operating range.

3. Intelligent Pump Control

The controller regulates the electrical power supplied to the compatible pump.

Depending on the exact C.DIVINE model, available control functions may include pump speed regulation, soft starting, soft stopping and automatic operation.

Modern solar pump controllers can use variable-frequency or motor-control techniques to adjust pump operation according to available solar power.

4. Solar Priority Operation

Solar energy can be prioritised during suitable sunlight conditions.

This allows users to utilise renewable energy for water pumping before relying on an available AC backup, where the controller is configured for that operating mode.

5. Pump Protection

Depending on the specific C.DIVINE model, protection functions may include:

• Over-voltage protection
• Under-voltage protection
• Over-current protection
• Overload protection
• Over-temperature protection
• Dry-run protection
• Short-circuit protection
• Low-solar protection
• Phase-loss protection

Protection features vary between controller models, so verify the actual specification before purchase.

Benefits of C.DIVINE AC & DC Switching MPPT Solar Pump Controller

1. Maximise Solar Energy Utilisation

The MPPT function helps the controller extract usable power from the solar PV array according to changing sunlight conditions.

This is particularly useful for water pumping because solar output varies from morning to afternoon and during cloudy conditions.

2. AC Backup Flexibility

One of the major advantages of an AC/DC switching controller is the ability to incorporate an alternative AC power source where supported.

This may include:

• Utility electricity
• Compatible generator
• Other approved AC source

Therefore, the water-pumping system does not necessarily have to depend entirely on solar generation.

3. Reduce Generator Fuel Consumption

Solar energy can be used as the primary energy source for water pumping.

This can reduce generator operating hours and potentially lower fuel consumption for farms, businesses and residential properties.

4. Suitable for Borehole Water Pumping

The controller can form part of a compatible solar borehole pumping system.

A typical arrangement is:

Solar PV → C.DIVINE Controller → Deep-Well Pump → Borehole → Storage Tank

This is suitable for properly designed residential, agricultural and commercial borehole applications.

5. Suitable for Solar Irrigation

The controller can be used with a compatible pump in irrigation applications such as:

• Vegetable farming
• Crop irrigation
• Greenhouse farming
• Orchard irrigation
• Nursery farming
• Drip irrigation
• Sprinkler irrigation
• Livestock watering

6. Supports Off-Grid Water Systems

Solar water pumping is particularly useful in locations where grid electricity is unavailable or unreliable.

A properly sized system can pump water directly from a borehole or well using solar energy.

7. Battery-Free Solar Pumping Option

A direct solar water-pumping system does not necessarily require batteries.

Instead of storing electricity, the system can pump water into a storage tank or reservoir:

Solar Energy → Pump → Stored Water

This can reduce system complexity and eliminate battery replacement for the pumping application.

Whether batteries can be incorporated depends on the specific C.DIVINE controller and pump architecture.

C.DIVINE Controller for Solar Borehole Pumps

The C.DIVINE AC & DC Switching MPPT Solar Pump Controller can be considered for compatible borehole and deep-well submersible pumps.

Potential applications include:

• Residential boreholes
• Estate water supply
• Agricultural boreholes
• Commercial water systems
• Livestock farms
• Rural water projects
• Industrial water supply
• Large water storage systems

The controller should be matched to the pump’s actual electrical and hydraulic requirements.

C.DIVINE Controller for Solar Submersible Pumps

The controller is particularly useful as part of a properly configured solar submersible pumping system.

It can potentially be used with compatible C.DIVINE solar pumps, including different horsepower classes.

However, do not select the controller based on the pump’s HP rating alone.

The following must be matched:

• Motor type
• Rated power
• Operating voltage
• Maximum current
• Frequency
• Phase
• PV voltage
• MPPT voltage range
• Maximum PV voltage
• PV current
• Controller output capacity

This is important because AC and DC solar pumps can have substantially different electrical requirements.

Solar Pump Controller for Farming

The C.DIVINE controller can form part of a solar-powered agricultural water system.

Vegetable Farming

Provide water from a borehole to irrigation lines for vegetable production.

Greenhouse Farming

Operate a compatible pump to supply controlled water to greenhouse irrigation systems.

Livestock Farming

Pump borehole water to elevated tanks for cattle, poultry and other livestock.

Orchard Irrigation

Move water from underground sources to orchard irrigation systems.

Large Farms

High-capacity compatible pumps can be used with appropriately sized controllers for large agricultural water requirements.

How the AC/DC Switching Works

The basic operating concept is:

During Strong Sunlight

Solar Panels → MPPT → Pump

The controller extracts available solar power and operates the compatible pump.

During Weak Solar Conditions

The controller may reduce pump speed or stop the pump depending on available power and configuration.

When AC Backup Is Required

Where supported:

AC Supply → Controller → Pump

The controller can switch to the compatible AC source according to its programmed operating mode.

This type of hybrid arrangement is used in commercial solar pumping systems to maintain water supply when solar energy is inadequate.

MPPT Solar Pump Controller vs Standard Solar Charge Controller

A solar pump controller is not the same thing as a conventional solar charge controller.

A normal MPPT charge controller is primarily designed to:

Solar Panels → Charge Controller → Battery

A solar pump controller is designed around:

Solar Panels → Pump Controller → Water Pump

The pump controller manages motor operation and may include MPPT, variable-speed control and pump-specific protection.

Therefore, a standard battery charge controller should not be substituted for a dedicated pump controller unless the manufacturer specifically approves the configuration.

AC Solar Pump Controller

When operating an AC water pump from solar panels, the controller may perform several functions:

1. Receive DC power from the solar PV array.
2. Track the PV maximum power point.
3. Convert/regulate the DC energy.
4. Produce controlled AC output for the compatible motor.
5. Adjust motor operation.
6. Protect the pump against specified electrical faults.

Solar/hybrid pump controllers can convert PV DC power into regulated AC output for standard AC pump motors.

DC Solar Pump Controller

For compatible DC pumps, the controller manages the DC power supplied to the motor.

This can be particularly useful for brushless DC or permanent-magnet pump motors designed for solar operation.

Some AC/DC hybrid controllers are specifically designed for BLDC and PMSM pump motors.

Suitable Solar Pump Applications

The C.DIVINE AC & DC Switching MPPT Solar Pump Controller can be considered for compatible:

• Solar submersible pumps
• Borehole pumps
• Deep-well pumps
• Surface water pumps
• Irrigation pumps
• Agricultural pumps
• Livestock water pumps
• Residential water pumps
• Commercial water pumps
• Rural water systems
• Off-grid water systems

Solar Water Pumping in Nigeria

For Nigerian customers, the C.DIVINE controller is particularly relevant to solar pumping systems used in:

Lagos

Ogun State

Oyo State

Kwara State

Abuja/FCT

Kano

Kaduna

Rivers State

Delta State

and other parts of Nigeria where borehole water and solar power are widely used.

Solar water pumping can be particularly valuable for farms and remote properties where reliable grid electricity is unavailable.

What You Need for a Complete Solar Pump System

The controller is only one part of the complete system.

A typical installation may require:

1. Solar Panels

The PV array provides the DC electricity.

2. C.DIVINE AC/DC Switching MPPT Controller

Controls the solar and AC power supplied to the pump.

3. Compatible Solar Water Pump

The pump must match the controller’s electrical output.

4. Solar Cables

Properly sized cables are required between the PV array, controller and pump.

5. Borehole Cable

Suitable submersible pump cable is required for deep-well installations.

6. Water Pipe

The pipe must be appropriately sized for the required flow and pressure.

7. Storage Tank

Stores pumped water for later use.

8. Protection Equipment

Depending on the system:

• DC isolator
• AC breaker
• Surge protection
• Earthing
• Overcurrent protection
• Water-level protection

How to Size the C.DIVINE Controller

Correct controller selection requires both electrical and hydraulic calculations.

Electrical Requirements

Determine:

Pump Power

Pump Voltage

Pump Current

Motor Type

AC/DC Requirement

Frequency

Phase

Solar PV Voltage

Solar PV Current

PV Wattage

MPPT Voltage Range

Hydraulic Requirements

Determine:

Borehole Depth

Dynamic Water Level

Required Flow Rate

Total Dynamic Head

Pipe Length

Pipe Diameter

Required Daily Water Volume

The controller should then be selected according to the manufacturer’s compatibility specifications.

Important: Do Not Oversize or Undersize the Controller

A controller that is too small may experience overloads, excessive heating or repeated shutdowns.

A controller that is incompatible with the pump’s voltage, motor type or phase can cause startup problems or motor damage.

Before installation, verify the:

Pump + Controller + Solar Panels + AC Supply

as one complete electrical system.

Installation and Safety

Professional installation is recommended for high-power solar pumping systems.

Ensure:

• Correct PV polarity
• Correct AC wiring
• Correct pump wiring
• Proper earthing
• Correct cable sizing
• Suitable circuit protection
• Adequate ventilation where required
• Appropriate environmental protection
• Correct pump parameters
• Correct motor parameters
• Correct MPPT settings

The pump should also be protected against dry running, especially in deep borehole installations.

Modern solar pump controllers can incorporate dry-run, over-current, over-voltage and temperature protection, although the exact protection functions depend on the controller.

Why Choose C.DIVINE AC & DC Switching MPPT Solar Pump Controller?

The C.DIVINE AC & DC Switching MPPT Solar Pump Controller provides a flexible control solution for compatible solar water pumping systems.

Its key value is the combination of:

Solar Power + MPPT + AC/DC Switching + Pump Control

This makes it suitable for customers who want to use solar energy for water pumping while maintaining an alternative AC power source where required.

For Nigerian customers searching Google for AC/DC solar pump controller, MPPT solar pump controller, solar borehole controller, solar submersible pump controller, hybrid solar pump controller, automatic solar pump controller or solar water pump controller in Lagos, this product is highly relevant to those search intents.

Product Benefits Summary

• AC & DC power switching capability
• MPPT solar energy optimisation
• Designed for compatible solar water pumps
• Suitable for compatible AC pumps
• Suitable for compatible DC pumps
• Suitable for borehole systems
• Suitable for deep-well pumps
• Suitable for submersible pumps
• Suitable for agricultural irrigation
• Suitable for livestock watering
• Suitable for residential water supply
• Suitable for commercial water supply
• Suitable for off-grid pumping
• Can reduce generator dependence
• Can reduce fuel consumption for water pumping
• Supports solar-priority operation where configured
• Can operate battery-free in suitable direct-solar systems
• Designed for controlled pump operation
• May include pump protection functions depending on model
• Suitable for solar pumping systems in Nigeria
