Description

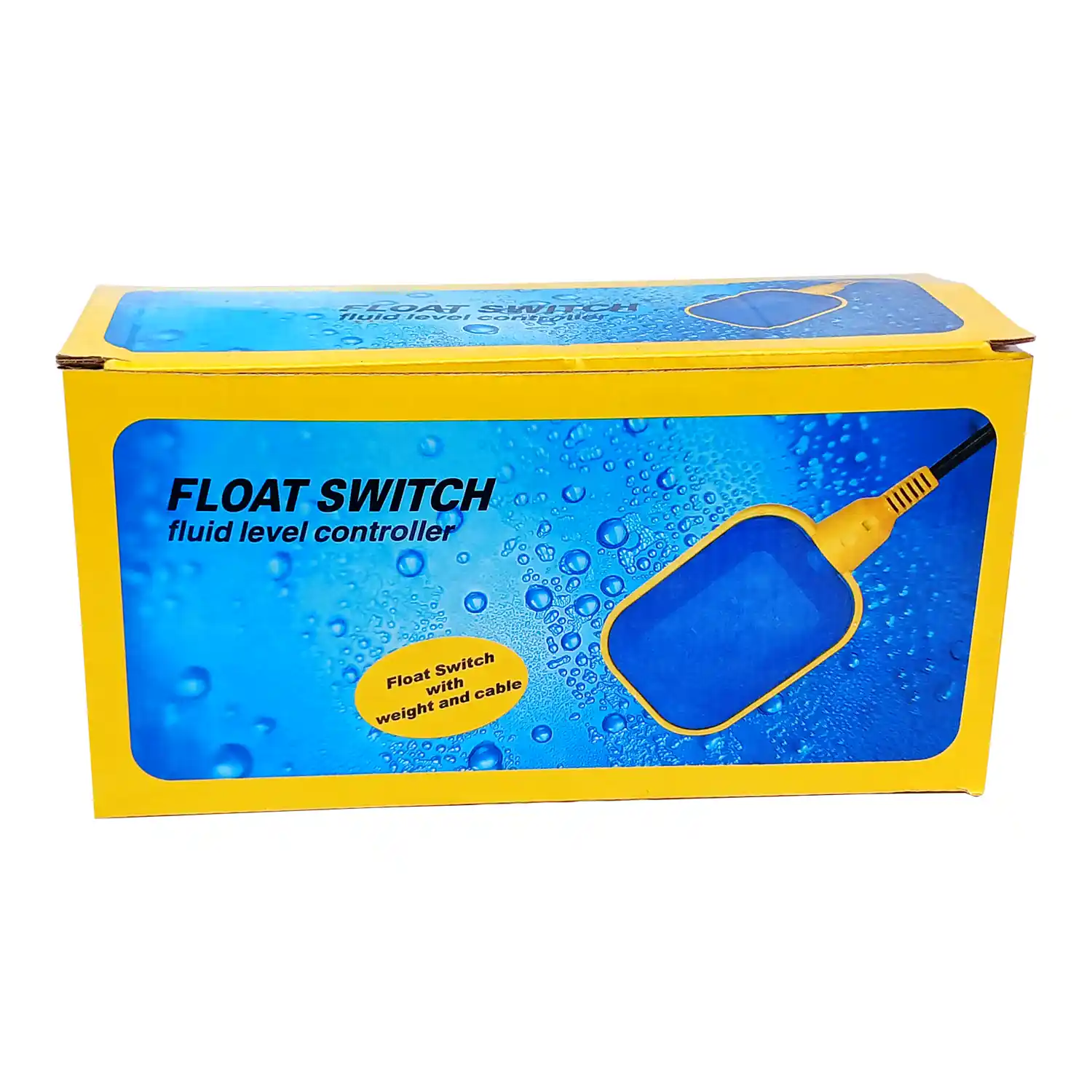

C.DIVINE Floating Switch Fluid Level Controller

The C.DIVINE Floating Switch Fluid Level Controller is an automatic water level control switch designed to monitor liquid levels and control compatible water pumps according to the level of water in a tank, reservoir, well or other suitable container.

Also known as a float switch, floating water level controller, automatic water tank float switch or pump float switch, this device uses buoyancy to detect whether the liquid level is high or low. As the float rises or falls, its internal switching mechanism changes the electrical circuit, allowing a connected pump or control system to start or stop according to the configured level.

For Nigerian customers searching for a water tank level controller, automatic water pump controller, float switch for overhead tank, borehole pump float switch, water level sensor, solar water pump float switch or fluid level controller in Lagos Nigeria, the C.DIVINE Floating Switch is designed for these applications.

Important: The exact electrical rating, cable length, switching configuration and maximum direct-load capacity of the C.DIVINE model should be confirmed from the product label or datasheet. Some float switches are intended to control pumps directly only within a specified electrical rating, while larger pumps may require a properly rated contactor or relay.

What Is a Floating Switch Fluid Level Controller?

A floating switch is a simple automatic device that follows the changing level of liquid.

As water rises, the float rises.

As water falls, the float falls.

This movement operates an internal switch that can be connected to a pump-control circuit.

For example:

Water Level Low → Float Drops → Pump ON

Water Level High → Float Rises → Pump OFF

This basic principle is widely used for automatic water tank filling and pump control.

The C.DIVINE Floating Switch can therefore help automate water pumping without requiring someone to manually switch the pump on and off every time the tank needs water.

Key Features of C.DIVINE Floating Switch

1. Automatic Water Level Detection

The float continuously responds to changes in liquid level.

This allows the connected control circuit to determine whether the water level has reached the selected switching position.

2. Automatic Pump Control

When correctly wired into a compatible pump system, the float switch can automatically control pump operation.

A typical tank-filling application works as follows:

Tank Water Low → Pump Starts

Tank Water Full → Pump Stops

This helps automate water supply and reduces the need for manual monitoring.

3. Helps Prevent Tank Overflow

One of the major advantages of a float switch is automatic pump shutdown when the tank reaches the configured high-water level.

This can help reduce:

• Water wastage
• Tank overflow
• Wet floors
• Unnecessary pump operation
• Manual supervision

4. Helps Protect Against Unnecessary Pump Operation

When the water reaches the required level, the switch can signal the pump-control circuit to stop pumping.

This prevents the pump from continuing to operate when the tank is already full.

5. Simple Operating Principle

The device operates through a straightforward buoyancy-based mechanism.

This makes a float switch relatively simple compared with more complex electronic water-level monitoring systems.

6. Suitable for Water Tanks and Reservoirs

The C.DIVINE Floating Switch can be considered for compatible:

• Overhead tanks
• Ground tanks
• Water reservoirs
• Storage tanks
• Drums
• Sumps
• Borehole water systems
• Irrigation tanks

Float switches are widely used in tanks and other containers for automatic pump and fluid-level control.

Benefits of C.DIVINE Floating Switch Fluid Level Controller

1. Automatic Water Tank Filling

The C.DIVINE float switch can automate the process of filling a water tank.

Instead of manually checking the tank, the float can signal the pump to start when the water level falls and stop when the desired level is reached.

This is especially useful for homes, offices, hotels, schools and commercial properties.

2. Helps Prevent Water Overflow

A full overhead tank can easily overflow when a pump is left running.

The float switch can interrupt the pump-control circuit when the water reaches the high-level position, helping prevent unnecessary water loss.

3. Saves Water

By stopping pumping at the required water level, the float switch helps prevent water from continuously flowing into an already-full tank.

This can be particularly beneficial where borehole pumping or treated water is involved.

4. Reduces Manual Monitoring

Without automatic level control, someone may need to monitor the tank and switch the pump off manually.

The C.DIVINE floating switch can automate this routine task.

This is convenient for:

• Homes
• Hostels
• Hotels
• Restaurants
• Offices
• Schools
• Churches
• Factories
• Farms

5. Helps Reduce Pump Wear

A pump operating unnecessarily after a tank is full wastes energy and increases operating time.

Automatic pump shutdown can reduce unnecessary running hours and may help reduce mechanical and electrical wear over time.

6. Useful for Solar Water Pump Systems

The C.DIVINE Floating Switch can form part of an appropriately designed solar water pumping system.

For example:

Solar Panels → Solar Pump Controller → Solar Submersible Pump → Water Tank

The float switch can provide the tank-level signal that tells the pump-control system when the tank has reached its desired level.

Some solar pump controllers specifically support float-switch inputs for stopping a pump when a reservoir is full and restarting it when the level falls.

7. Suitable for Borehole Pumping

A float switch can be used as part of a borehole water system where a submersible pump transfers water from the borehole or ground tank to an overhead tank.

Example:

Borehole → Submersible Pump → Storage Tank → Float Switch

When the storage tank becomes full, the pump-control system stops the pump.

8. Helps Automate Water Supply

Once correctly installed, the system can automatically maintain water in a storage tank within the selected operating range.

This is particularly useful for properties where regular water availability is important.

C.DIVINE Float Switch for Overhead Water Tank

The C.DIVINE Floating Switch Fluid Level Controller can be used as part of an automatic overhead-tank filling system.

Basic Operation

1. Water Level Falls

The float moves downward.

2. Low-Level Switching Point Is Reached

The switch changes state.

3. Pump Starts

The connected control circuit activates the pump.

4. Tank Fills

Water is pumped into the overhead tank.

5. Water Level Rises

The float moves upward.

6. High-Level Switching Point Is Reached

The switch changes state again.

7. Pump Stops

The tank stops receiving water.

This type of pump-up level control is a common application of float switches.

C.DIVINE Float Switch for Borehole Pump

For a borehole installation, the float switch can be positioned in the receiving tank rather than inside the borehole itself.

A typical system is:

Borehole → Solar/AC Pump → Pipe → Overhead Tank

The float switch monitors the overhead tank.

When the tank is full, it signals the control system to stop pumping.

When the water level drops, the pump can restart if the control system is configured accordingly.

Important

A tank float switch primarily monitors the receiving tank level. It should not automatically be considered a substitute for a borehole low-water/dry-run sensor.

For borehole protection, the pumping system may require a separate low-water probe or compatible dry-run protection. Some solar pump controllers provide dedicated low-water detection as well as tank float-switch inputs.

C.DIVINE Float Switch for Solar Water Pump

The C.DIVINE float switch can be particularly useful when combined with:

• Solar submersible water pumps
• Solar borehole pumps
• Solar deep-well pumps
• Solar irrigation pumps
• Solar pump controllers
• AC/DC solar pumping systems

A typical system can be:

Solar Panels → C.DIVINE Solar Pump Controller → Solar Pump → Water Tank

Water Tank → C.DIVINE Float Switch → Pump Control

This arrangement can automate the pumping cycle according to the water level.

C.DIVINE Float Switch for Irrigation

The float switch can also be incorporated into agricultural water-storage systems.

For example:

Borehole → Solar Pump → Storage Reservoir → Irrigation System

The float switch can help maintain a predetermined water level in the reservoir.

Applications include:

• Vegetable farms
• Greenhouses
• Crop irrigation
• Nurseries
• Orchards
• Livestock farms
• Drip irrigation systems
• Sprinkler irrigation systems

C.DIVINE Float Switch for Commercial Properties

Automatic water-level control is useful in properties where water demand is high.

Potential applications include:

Hotels

Automatically maintain water in overhead tanks.

Restaurants

Help maintain water availability while reducing overflow.

Schools

Automate water storage for student and staff facilities.

Hostels

Reduce the need for manual pump operation.

Offices

Maintain water supply to building storage tanks.

Churches

Automate water filling for large premises.

Factories

Control compatible water-storage and pumping systems.

Suitable Applications

The C.DIVINE Floating Switch Fluid Level Controller can be considered for:

• Overhead water tanks
• Ground water tanks
• Reservoirs
• Drums
• Sumps
• Borehole systems
• Solar water pumping systems
• Irrigation systems
• Livestock water systems
• Residential water systems
• Commercial buildings
• Industrial water systems

Float switches are also used for controlling pumps, valves and alarms depending on the application.

Why Use a Float Switch Instead of Manual Pump Control?

Manual control requires someone to monitor the water level.

For example:

Check Tank → Turn Pump ON → Wait → Check Tank → Turn Pump OFF

This can be inconvenient and creates the possibility of forgetting to switch off the pump.

With an automatic float switch:

Low Water → Pump ON

Full Tank → Pump OFF

The system can therefore reduce routine manual intervention.

Float Switch vs Water Level Sensor

A float switch and an electronic water-level sensor can perform similar control functions but operate differently.

Float Switch

Uses physical movement caused by buoyancy to operate a switch.

Advantages:

• Simple
• Easy to understand
• Generally inexpensive
• Easy to install
• Suitable for many tank applications

Electronic Level Sensor

Uses electrical or electronic sensing technology to detect liquid level.

Advantages may include:

• More advanced monitoring
• Multiple level points
• Digital control
• Integration with automation systems

For simple automatic pump control, a float switch can be an effective solution.

Installation Considerations

Correct installation is important for reliable operation.

The float should have enough space to move freely with the changing water level.

Avoid installing it where it can become trapped against:

• Tank walls
• Pipes
• Pump cables
• Structural supports
• Other equipment

The switching positions should also be selected according to the required minimum and maximum tank levels.

Electrical Safety

The float switch should only be connected within its specified electrical rating.

If the pump’s electrical load exceeds the float switch’s rated switching capacity, use an appropriately rated contactor, relay or pump-control device rather than switching the pump directly through the float.

For example, one commonly sold float switch specifies direct motor use below 750 W and recommends an AC contactor for larger motors. This illustrates why the actual C.DIVINE rating must be checked before installation.

For larger solar or AC water pumps, professional electrical installation is strongly recommended.

C.DIVINE Floating Switch for Nigerian Water Systems

The product is relevant to Nigerian homes and businesses that use:

• Borehole water
• Overhead tanks
• Ground reservoirs
• Submersible pumps
• Surface pumps
• Solar water pumps
• Generator-powered pumps
• Grid-powered water pumps

For customers in Lagos and across Nigeria, an automatic float switch can make a water pumping system more convenient by helping maintain water levels without continuous manual supervision.

Product Benefits Summary

• Automatic water-level control
• Helps control compatible water pumps
• Helps prevent tank overflow
• Reduces water wastage
• Reduces unnecessary pump operation
• Minimises manual monitoring
• Suitable for overhead tanks
• Suitable for reservoirs
• Suitable for drums and containers
• Suitable for borehole systems
• Suitable for solar water pumps
• Suitable for irrigation systems
• Suitable for residential applications
• Suitable for commercial applications
• Suitable for industrial water systems
• Simple buoyancy-based operation
• Easy to integrate into compatible pump-control systems
• Useful for automatic water supply systems
