Gear Switch 100A TPN

Description

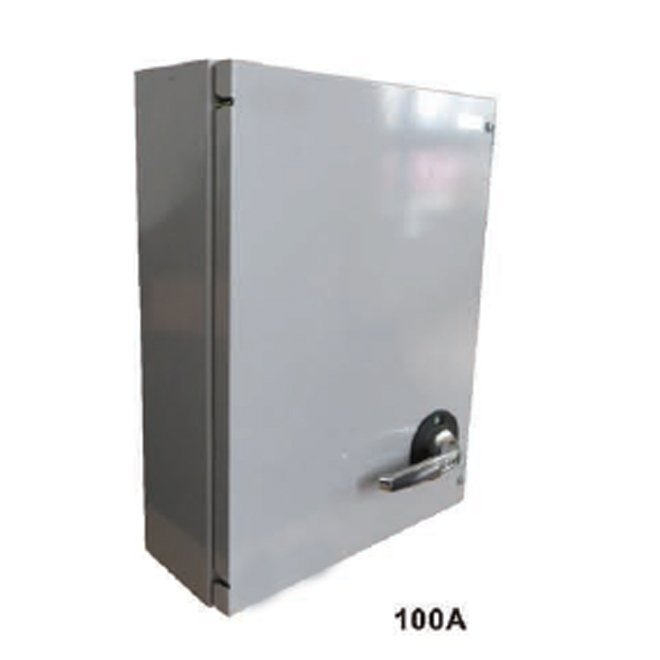

Gear Switch 100A TPN

The Gear Switch 100A TPN is a heavy-duty electrical switching and isolation device designed for compatible three-phase electrical systems. With a 100A rated current and TPN (Triple Pole and Neutral) configuration, it provides a practical method for manually controlling and isolating compatible electrical circuits, equipment, and distribution systems.

For electricians, electrical contractors, builders, property developers, facility managers, factories, workshops, offices, hotels, warehouses, and businesses searching for quality electrical accessories in Lagos Nigeria, the Gear Switch 100A TPN is a suitable option for compatible three-phase electrical installations requiring a higher current-rated switching device.

The switch should always be selected according to the electrical system voltage, connected load, current requirements, switching duty, installation environment, and manufacturer’s specifications.

What Is a Gear Switch 100A TPN?

A Gear Switch 100A TPN is a manually operated electrical switch designed for compatible three-phase AC electrical installations.

The 100A designation indicates the rated current of the switch, while TPN means Triple Pole and Neutral. This configuration is designed to switch or isolate the three phase conductors and neutral together in compatible electrical systems.

Gear switches are commonly used for manual switching and isolation in electrical distribution systems, commercial buildings, workshops, industrial facilities, machinery installations, and control applications.

Benefits of Gear Switch 100A TPN

1. Designed for Three-Phase Applications

The TPN configuration makes the gear switch suitable for compatible three-phase electrical systems where three phases and neutral require coordinated switching or isolation.

2. 100A Rated Current

The 100A rating makes the switch suitable for compatible electrical circuits and equipment designed around a 100-ampere switching requirement.

3. Convenient Manual Isolation

The gear switch provides a practical method of manually disconnecting compatible electrical circuits or equipment during maintenance, servicing, inspection, or authorized electrical work.

4. Supports Electrical Maintenance

A dedicated isolation point can make it easier for qualified electricians to disconnect electrical equipment before carrying out maintenance or repairs.

5. Suitable for Higher-Load Applications

Compared with lower-rated gear switches, the 100A configuration can be considered for compatible electrical systems requiring a higher current-rated switching device.

6. Useful for Commercial and Industrial Projects

The gear switch can be used in suitable factories, workshops, warehouses, offices, commercial buildings, hotels, and other facilities.

7. Practical Electrical Control

The manual switching mechanism provides a straightforward way to control or isolate compatible electrical equipment and circuits.

Applications of Gear Switch 100A TPN

The Gear Switch 100A TPN can be considered for compatible applications such as:

• Three-phase electrical installations
• Commercial buildings
• Industrial facilities
• Factories
• Workshops
• Warehouses
• Offices
• Hotels
• Restaurants
• Shops
• Electrical distribution systems
• Machinery isolation
• Control panels
• Industrial equipment
• Building construction projects
• Electrical maintenance installations

The actual suitability depends on the switch’s complete technical specifications and the requirements of the electrical installation.

100A TPN Gear Switch for Electrical Distribution

Three-phase electrical distribution systems often require suitable switching and isolation equipment. A 100A TPN gear switch can provide a dedicated manual isolation point where the three phase conductors and neutral need to be switched or isolated in accordance with the system design.

This makes the switch useful for compatible commercial and industrial distribution applications.

The 100A rating should not be interpreted as a recommendation for every 100A circuit. Cable capacity, connected load, protective-device coordination, fault levels, and installation conditions must all be considered when selecting electrical equipment.

Benefits for Nigerian Electrical Contractors

Electrical contractors and electricians working in Lagos and across Nigeria require dependable electrical accessories for commercial, industrial, residential, and construction projects.

The Gear Switch 100A TPN can be considered for compatible three-phase installations where a 100A manual switching and isolation device is required.

It can be useful for electrical distribution upgrades, machinery installations, workshops, factories, commercial properties, and building construction projects.

Important Specifications to Check

Before purchasing a Gear Switch 100A TPN, verify the following:

Rated Current

The switch has a 100A rated current. The circuit and connected equipment must be suitable for this rating.

Rated Voltage

Confirm the manufacturer’s rated voltage and ensure compatibility with the electrical supply.

Pole Configuration

Verify that the TPN configuration meets the requirements of the intended three-phase installation.

Switching Capacity

Check that the switch is suitable for the intended load and switching duty.

Enclosure Protection

For dusty, damp, outdoor, or industrial environments, check the switch’s IP or enclosure protection rating.

Mounting Type

Confirm whether the gear switch is suitable for surface mounting, panel mounting, enclosure installation, or another configuration.

Terminal Capacity

Check that the terminals can accommodate the required cable size and connection arrangement.

Gear Switch vs Circuit Breaker

A gear switch is primarily intended for manual switching and isolation, while a circuit breaker provides protection against specified electrical fault conditions such as overload and short circuit.

A properly designed electrical system may use both devices. A circuit breaker or fuse can provide appropriate overcurrent protection, while the gear switch provides a convenient manual isolation point.

The gear switch should not be treated as a substitute for required circuit protection unless the manufacturer specifically confirms that it provides the necessary protective function.

100A TPN Gear Switch for Industrial Applications

Factories, workshops, warehouses, and commercial facilities often use three-phase electrical equipment that requires suitable switching and isolation arrangements.

The Gear Switch 100A TPN can be suitable for compatible machinery, electrical distribution systems, control equipment, and industrial installations where its voltage, current, enclosure, and switching specifications meet the project requirements.

For equipment with high starting currents or demanding switching duties, the electrician should verify that the gear switch is specifically rated for the intended application.

Professional Installation Recommended

Three-phase electrical systems can involve hazardous voltages and currents. The Gear Switch 100A TPN should therefore be installed by a qualified electrician or competent electrical professional.

Before installation, verify the current rating, voltage rating, pole configuration, cable size, connected load, switching duty, enclosure rating, and compatibility with other protection devices.

The electrical installation should be inspected and tested appropriately after completion.

Why Choose a Quality 100A TPN Gear Switch?

A properly selected gear switch provides a convenient manual method of controlling and isolating compatible three-phase electrical circuits and equipment.

The Gear Switch 100A TPN combines a 100A current rating with a Triple Pole and Neutral configuration, making it a practical choice for compatible higher-load commercial, industrial, machinery, and electrical distribution applications.

For electricians, contractors, facility managers, and businesses searching for electrical accessories in Lagos Nigeria, choosing a correctly rated gear switch can contribute to a more organized and maintainable electrical system.
