Description

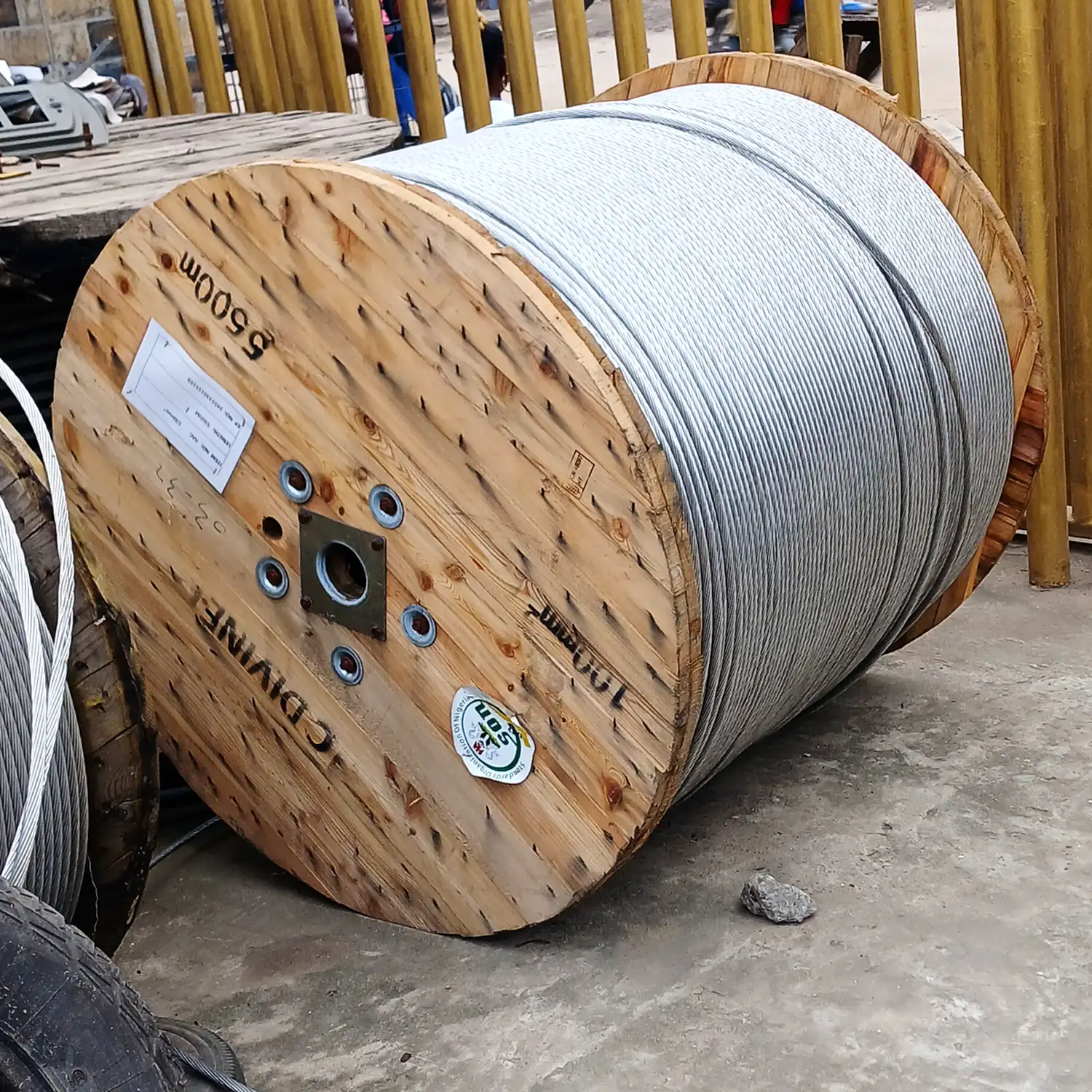

120mm² Aluminium Conductor Cable – C.Divine

The C.Divine 120mm² Aluminium Conductor Cable is designed for overhead electrical power distribution and infrastructure projects requiring a larger conductor cross-sectional area.

Aluminium is extensively used in overhead electrical networks because it combines useful electrical conductivity with relatively low density. Compared with copper conductors, aluminium offers lower weight, which can provide practical advantages during transportation, handling and overhead-line installation.

A 120mm² aluminium conductor has a nominal cross-sectional area of approximately 120 square millimetres. It represents a larger conductor size than 35mm², 50mm², 70mm² and 100mm² conductors and can be considered for electrical networks with greater conductor capacity requirements, subject to proper engineering calculations.

C.Divine Aluminium Conductor Cable products are available in different constructions, including AAC (All Aluminium Conductor), AAAC (All Aluminium Alloy Conductor), and ACSR (Aluminium Conductor Steel Reinforced) where specified.

For customers searching Google for 120mm² aluminium cable, 120mm² aluminium conductor, AAC overhead wire, AAAC conductor, ACSR cable, aluminium overhead line wire, high-tension electrical materials and electrical equipment in Lagos Nigeria, C.Divine offers a practical option for suitable electrical infrastructure applications.

What Is a 120mm² Aluminium Conductor Cable?

A 120mm² Aluminium Conductor Cable is an aluminium overhead electrical conductor with a nominal cross-sectional area of approximately 120 square millimetres.

The conductor cross-sectional area is an important parameter when designing power distribution and transmission systems. However, the size alone should not be used to determine the conductor’s suitability.

Electrical engineers should also consider:

• System voltage
• Expected load
• Current-carrying capacity
• Conductor construction
• Operating temperature
• Ambient conditions
• Span length
• Sag and tension
• Wind loading
• Mechanical strength
• Required electrical clearances
• Applicable technical standards

AAC – All Aluminium Conductor

AAC means All Aluminium Conductor. It consists of stranded aluminium wires and is commonly used in suitable overhead distribution applications where electrical conductivity and low conductor weight are important.

AAAC – All Aluminium Alloy Conductor

AAAC means All Aluminium Alloy Conductor. It consists of aluminium alloy strands and offers different mechanical properties from conventional AAC.

ACSR – Aluminium Conductor Steel Reinforced

ACSR means Aluminium Conductor Steel Reinforced. It combines aluminium conducting strands with a steel reinforcing core to provide greater mechanical strength for suitable overhead-line applications.

Key Features of C.Divine 120mm² Aluminium Conductor Cable

1. 120mm² Conductor Size

The 120mm² conductor provides a larger cross-sectional option for suitable electrical distribution and overhead power applications.

2. Aluminium Conductive Material

Aluminium provides useful electrical conductivity and relatively low density, making it an important material for overhead electrical conductors.

3. Lightweight Construction

The lower density of aluminium can provide practical advantages for transportation, handling and overhead-line installation.

4. Multiple Conductor Configurations

AAC, AAAC and ACSR constructions allow the conductor to be selected according to the electrical and mechanical requirements of a particular project.

5. Suitable for Utility and Industrial Applications

The 120mm² conductor can be considered for suitable utility, industrial, commercial and electrical infrastructure projects.

6. Suitable for Nigerian Electrical Projects

C.Divine 120mm² Aluminium Conductor Cable is suitable for electrical contractors, engineers, distributors and project suppliers sourcing overhead conductors in Nigeria.

Bare Conductor Types
(1) all aluminum conductor (AAC)
AAC used in overhead electric power transmission and distribution lines with various grade voltages.
Mainly used in urban areas for electricity transfer where the spacing is short and the supports are closer together. Apart
from that, these conductors are also extensively used in coastal area because of their corrosion resistance properties

(2) all aluminum alloy conductor(AAAC)
The aluminum alloy conductors are used in replace of single-layer ACSR conductors to reduce power
loss in overhead distribution and transmission lines,when replacing the aluminum conductor steel reinforced , the AAAC
can save 5-8% of the construction cost.

(3) aluminum conductor steel reinforced (ACSR)
Used as bare overhead transmission conductor and as primary and secondary distribution conductor
andmessenger support. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength
to be achieved without sacrificing ampacity.

(4)aluminum conductor aluminum alloy reinforced(ACAR)

ASTM B232 Standard:

AAC vs AAAC vs ACSR Aluminium Conductors

Selecting the correct conductor construction is important because AAC, AAAC and ACSR have different characteristics.

Conductor Type	Full Name	General Characteristics	Typical Consideration
AAC	All Aluminium Conductor	Aluminium strands with good conductivity and relatively low weight	Suitable overhead distribution applications
AAAC	All Aluminium Alloy Conductor	Aluminium alloy strands with different mechanical characteristics	Overhead lines requiring enhanced mechanical performance
ACSR	Aluminium Conductor Steel Reinforced	Aluminium strands surrounding a steel reinforcing core	Longer spans and applications requiring greater mechanical strength

The appropriate conductor should be selected according to the project’s ampacity, voltage, mechanical loading, span, sag and tension, environmental conditions and applicable engineering standards.

Applications of 120mm² Aluminium Conductor Cable

The C.Divine 120mm² Aluminium Conductor Cable can be considered for various suitable electrical infrastructure applications, including:

• Overhead electrical distribution lines
• Utility power distribution networks
• Industrial power distribution
• Commercial electrical infrastructure
• Rural electrification projects
• Electrical network extensions
• Power utility projects
• Overhead line construction
• Industrial estates
• Infrastructure development
• Distribution network upgrades
• Electrical engineering projects
• Power network expansion
• High-tension electrical infrastructure where technically appropriate
• Electrical contractor installations

The final application and conductor selection should be determined according to the project’s electrical and mechanical design.

Aluminium Conductor Cable Sizes

C.Divine Aluminium Conductor Cable products are available in multiple sizes and constructions for different overhead electrical requirements.

Aluminium Conductor Size	Conductor Type	General Application
35mm²	AAC / AAAC / ACSR*	Overhead distribution and suitable electrical network applications
50mm²	AAC / AAAC / ACSR*	Overhead distribution and utility applications
70mm²	AAC / AAAC / ACSR*	Distribution and higher-capacity overhead applications
100mm²	AAC / AAAC	Larger overhead distribution applications
100mm² ACSR	ACSR	Overhead lines requiring enhanced mechanical strength
120mm²	AAC / AAAC	Distribution and power network applications
120mm² ACSR	ACSR	Longer-span overhead line applications
150mm²	AAC / AAAC	Higher-capacity overhead electrical networks
150mm² ACSR	ACSR	Applications requiring higher tensile/mechanical performance

*Specific conductor construction and availability should be confirmed according to the required C.Divine product specification.

Benefits of 120mm² Aluminium Conductor

Good Electrical Conductivity

Aluminium is widely used for overhead electrical conductors because it provides useful electrical conductivity combined with low density.

Lower Conductor Weight

Aluminium is significantly lighter than copper, which can be advantageous for overhead electrical infrastructure and conductor handling.

Larger Cross-Sectional Area

The 120mm² size provides a larger conductor option than 35mm², 50mm², 70mm² and 100mm² conductors for applications requiring an appropriately sized conductor.

Practical Overhead Power Solution

Aluminium conductors can provide a practical balance of electrical performance, weight and project economics when correctly specified.

Multiple Conductor Types

AAC, AAAC and ACSR options allow engineers to select an appropriate conductor construction based on electrical and mechanical requirements.

120mm² Aluminium Conductor Cable for Nigeria

Nigeria’s power infrastructure requires a broad range of electrical materials for utility distribution, industrial projects, commercial developments, rural electrification and network expansion.

The C.Divine 120mm² Aluminium Conductor Cable is intended for customers looking for suitable aluminium overhead conductors for electrical infrastructure projects.

For customers in Lagos, Nigeria, selecting the correct conductor should involve more than choosing a cross-sectional area. The conductor construction, strand configuration, system voltage, expected load and mechanical requirements should also be considered.

If you are searching Google for where to buy 120mm² aluminium conductor cable in Nigeria, provide the required conductor type and project specifications when requesting a quotation.

120mm² AAC Aluminium Conductor

120mm² AAC means 120mm² All Aluminium Conductor. It consists of stranded aluminium wires and is commonly considered for suitable overhead electrical distribution applications.

AAC can be an appropriate choice where the required electrical conductivity, span and mechanical characteristics meet the project design.

Before installation, the conductor ampacity and mechanical characteristics should be verified against the applicable engineering requirements.

120mm² AAAC Aluminium Conductor

120mm² AAAC means 120mm² All Aluminium Alloy Conductor.

AAAC uses aluminium alloy strands and offers different mechanical properties from conventional AAC. It can be considered for overhead power systems where enhanced mechanical performance is required.

The exact conductor specification should be confirmed before purchasing to ensure compatibility with the project design.

120mm² ACSR Aluminium Conductor

120mm² ACSR combines aluminium conducting strands with a steel reinforcing core.

The steel core provides additional mechanical strength, making ACSR suitable for particular overhead-line applications requiring increased tensile performance.

For long-span installations, engineers should consider span length, sag, tension, wind loading, conductor temperature and mechanical loading when selecting the appropriate ACSR conductor.

Installation Considerations

Correct installation is essential for safe and reliable overhead electrical operation.

Before installation, qualified electrical professionals should verify:

1. Required conductor size.
2. AAC, AAAC or ACSR construction.
3. System voltage.
4. Required current-carrying capacity.
5. Maximum operating temperature.
6. Pole or tower spacing.
7. Span length.
8. Sag and tension.
9. Wind and environmental loading.
10. Electrical clearances.
11. Connector and fitting compatibility.
12. Applicable local and international standards.

All installation work should be carried out by appropriately qualified electrical professionals using suitable tools, fittings and approved procedures.

High-Tension Electrical Materials for Nigerian Projects

A complete overhead electrical installation normally requires several components besides the conductor.

Depending on the project, customers may require:

• High-voltage insulators
• Crossarms
• Electrical poles
• Transmission towers
• Line clamps
• Compression connectors
• Earthing materials
• Transformers
• Switchgear
• Surge protection equipment
• Electrical protection devices
• Overhead line accessories

C.Divine aluminium conductor products can form part of an electrical-material procurement package for suitable utility, industrial and infrastructure projects.

Buying 120mm² Aluminium Conductor Cable in Lagos Nigeria

When purchasing 120mm² Aluminium Conductor Cable in Lagos, buyers should confirm the complete technical specification before placing an order.

Important information includes:

• Conductor size: 120mm²
• Conductor type: AAC, AAAC or ACSR
• Required strand configuration
• System voltage/application
• Required conductor length
• Current/load requirements
• Project specifications
• Applicable technical standard
• Required fittings and accessories

Providing this information helps suppliers identify the appropriate conductor for the intended project.

C.Divine Aluminium Conductor Cable for Electrical Contractors

Electrical contractors, engineers, utility companies, distributors and construction companies require properly specified conductors for overhead power projects.

The C.Divine 120mm² Aluminium Conductor Cable provides a larger aluminium conductor option for suitable power distribution and electrical infrastructure applications.

Whether you require 120mm² AAC, 120mm² AAAC, 120mm² ACSR, aluminium overhead line wire or high-tension electrical materials, confirm the complete technical specification before purchase.

Why Choose C.Divine 120mm² Aluminium Conductor Cable?

C.Divine 120mm² Aluminium Conductor Cable provides a practical option for customers sourcing aluminium overhead conductors for Nigerian electrical projects.

Key benefits include:

• 120mm² aluminium conductor size
• Suitable for overhead electrical applications
• Lightweight aluminium construction
• AAC and AAAC options
• ACSR option where specified
• Suitable for utility and industrial projects
• Practical for electrical contractors and engineers
• Suitable for power distribution infrastructure
• Available for electrical-material sourcing in Nigeria
• Appropriate for projects where technical requirements are satisfied

Order 120mm² Aluminium Conductor Cable – C.Divine

If you are searching for 120mm² Aluminium Conductor Cable in Nigeria, C.Divine provides an option for electrical contractors, engineers, distributors, construction companies, utility projects and industrial customers.

For customers in Lagos and across Nigeria searching for 120mm² aluminium cable, 120mm² aluminium conductor, AAC overhead wire, AAAC conductor, ACSR cable, aluminium overhead line wire, high-tension electrical materials or electrical power equipment, provide your required specifications when requesting a quotation.

When ordering, specify whether you require AAC, AAAC or ACSR, together with the required conductor size, length, construction, technical standard and intended application.

Frequently Asked Questions

What is 120mm² Aluminium Conductor Cable?

120mm² Aluminium Conductor Cable is an overhead electrical conductor with a nominal cross-sectional area of 120 square millimetres. Depending on the project specification, it may be supplied as AAC, AAAC or ACSR.

What is 120mm² AAC?

120mm² AAC means 120mm² All Aluminium Conductor. It consists of stranded aluminium wires and is suitable for overhead applications where its electrical and mechanical characteristics meet the project requirements.

What is 120mm² AAAC?

120mm² AAAC means 120mm² All Aluminium Alloy Conductor. It uses aluminium alloy strands and offers different mechanical characteristics from conventional AAC.

What is 120mm² ACSR?

120mm² ACSR is an Aluminium Conductor Steel Reinforced construction that combines aluminium conducting strands with a steel reinforcing core for increased mechanical strength.

Where can 120mm² Aluminium Conductor Cable be used?

It can be considered for suitable overhead electrical distribution, utility, industrial, rural electrification and infrastructure projects. Final suitability depends on the engineering design.

Is 120mm² aluminium conductor suitable for high-tension applications?

It can be suitable for specific overhead electrical applications depending on conductor construction, voltage, current requirements, span, mechanical loading and applicable standards. A qualified electrical engineer should confirm suitability.

Where can I buy 120mm² Aluminium Conductor Cable in Nigeria?

Customers searching for 120mm² Aluminium Conductor Cable in Lagos and across Nigeria can contact C.Divine electrical-material suppliers to confirm availability, technical specifications, pricing and delivery options.
