Description

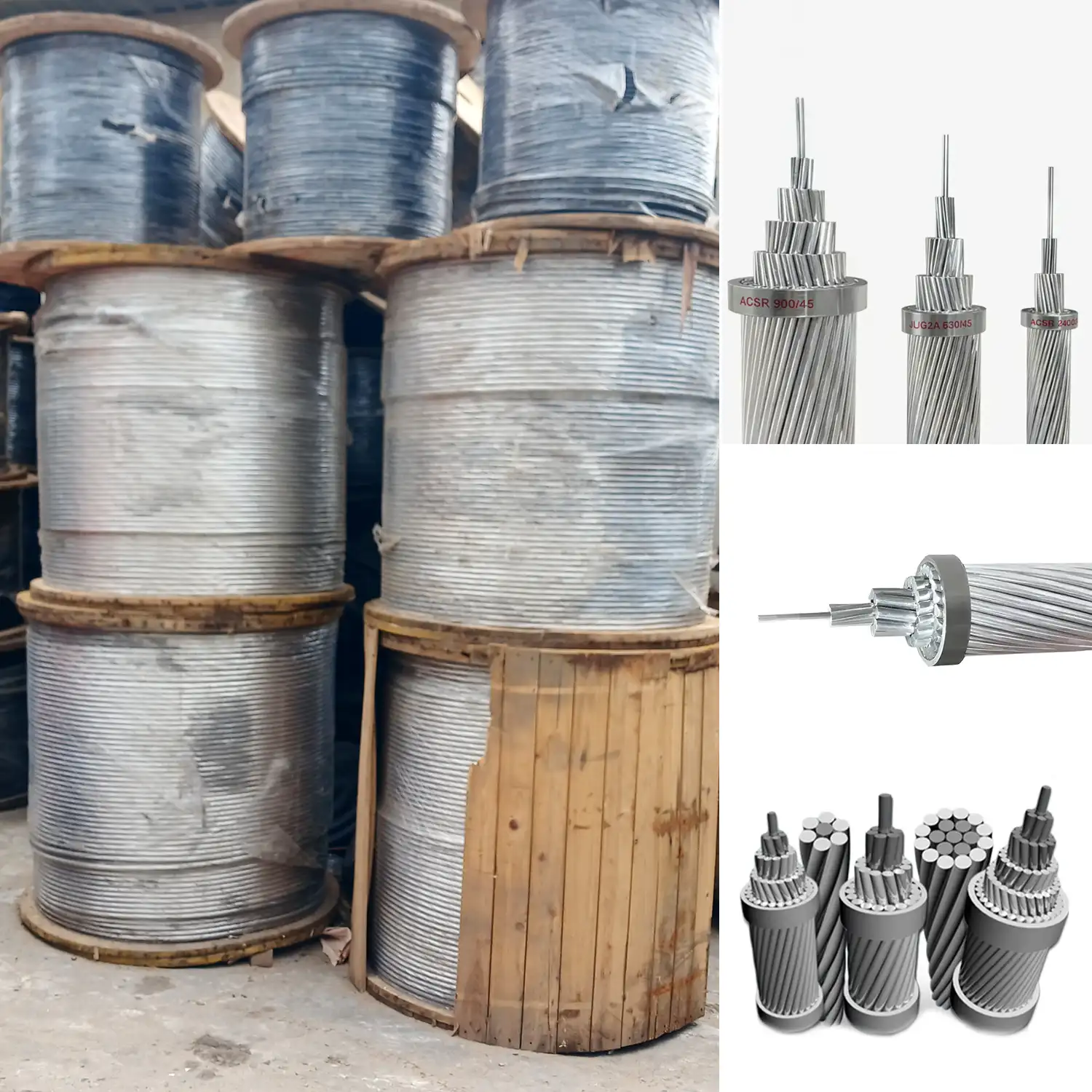

C.DIVINE 120mm² ACSR Aluminium Conductor Cable AAC AAAC ACSR Overhead Line Conductor

The C.DIVINE 120mm² ACSR Aluminium Conductor Cable is a professional overhead electrical conductor designed for power transmission, power distribution, utility networks, industrial electrical infrastructure, and overhead line projects.

ACSR stands for Aluminium Conductor Steel Reinforced. This conductor construction combines aluminium strands for electrical conductivity with a steel-reinforced core for enhanced mechanical strength. The combination makes ACSR a widely used conductor type for overhead electrical systems where both current-carrying performance and mechanical strength are important.

The 120mm² ACSR Aluminium Conductor Cable – C.DIVINE is suitable for electrical contractors, engineers, utility companies, EPC contractors, industrial facilities, electrical material wholesalers, distributors and project procurement teams looking for quality aluminium overhead line conductors in Nigeria.

For customers searching Google for 120mm² ACSR cable in Lagos Nigeria, aluminium conductor cable, AAC AAAC ACSR overhead line conductor, aluminium overhead line wire, C.DIVINE aluminium conductor cable and high-tension electrical materials, this product provides a practical option for professionally specified overhead electrical projects.

Important: Actual conductor construction, strand arrangement, diameter, weight, resistance, breaking strength and ampacity depend on the specific ACSR design and applicable standard. Always confirm the technical datasheet before using the conductor in a project.

What Is a 120mm² ACSR Aluminium Conductor?

A 120mm² ACSR Aluminium Conductor is an overhead conductor based on an aluminium conductive section with a nominal cross-sectional area of approximately 120mm², combined with a steel reinforcement core.

The aluminium strands are primarily responsible for carrying electrical current. The steel core provides mechanical reinforcement, helping the conductor withstand tensile forces during installation and operation.

This combination is particularly useful in overhead electrical networks where conductors must span between poles or towers while maintaining suitable electrical and mechanical characteristics.

The exact construction of a 120mm² ACSR conductor may vary according to manufacturer specifications and applicable standards. For this reason, buyers should specify the required conductor standard, construction and technical characteristics when ordering.

Key Features of C.DIVINE 120mm² ACSR Cable

1. 120mm² Aluminium Conductor Size

The product is designed around a 120mm² nominal aluminium conductor size, making it suitable for projects where this conductor cross-sectional area is specified.

2. Aluminium Current-Carrying Strands

Aluminium provides the primary electrical conducting path. Aluminium conductors are commonly used in overhead electrical infrastructure because of their combination of conductivity, relatively low weight and material economy.

3. Steel Reinforced Core

The ACSR construction includes a steel reinforcement component that provides additional mechanical strength compared with an equivalent all-aluminium conductor construction.

4. Suitable for Overhead Line Applications

The conductor is intended for professionally designed overhead electrical systems, including suitable distribution and transmission applications.

5. Multiple Sizes Available

C.DIVINE aluminium overhead conductors can be supplied in various sizes depending on product availability and project requirements, including 35mm², 50mm², 70mm², 100mm², 120mm² and 150mm², as well as ACSR variants.

Bare Conductor Types
(1) all aluminum conductor (AAC)
AAC used in overhead electric power transmission and distribution lines with various grade voltages.
Mainly used in urban areas for electricity transfer where the spacing is short and the supports are closer together. Apart
from that, these conductors are also extensively used in coastal area because of their corrosion resistance properties

(2) all aluminum alloy conductor(AAAC)
The aluminum alloy conductors are used in replace of single-layer ACSR conductors to reduce power
loss in overhead distribution and transmission lines,when replacing the aluminum conductor steel reinforced , the AAAC
can save 5-8% of the construction cost.

(3) aluminum conductor steel reinforced (ACSR)
Used as bare overhead transmission conductor and as primary and secondary distribution conductor
andmessenger support. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength
to be achieved without sacrificing ampacity.

(4)aluminum conductor aluminum alloy reinforced(ACAR)

ASTM B232 Standard:

AAC vs AAAC vs ACSR

When purchasing an aluminium overhead conductor, customers should understand the differences between AAC, AAAC and ACSR.

Conductor Type	Full Name	Main Construction	Typical Consideration
AAC	All Aluminium Conductor	Aluminium strands	High conductivity and suitable mechanical applications
AAAC	All Aluminium Alloy Conductor	Aluminium alloy strands	Different mechanical and electrical characteristics
ACSR	Aluminium Conductor Steel Reinforced	Aluminium strands + steel core	Higher mechanical reinforcement for overhead lines

The correct conductor should be selected according to the project’s electrical loading, voltage, span, sag, mechanical requirements, environmental conditions and applicable standards.

Applications of 120mm² ACSR Aluminium Conductor Cable

The C.DIVINE 120mm² ACSR Aluminium Conductor Cable can be used in properly engineered overhead electrical infrastructure.

Typical applications include:

• Overhead power distribution
• Electrical utility networks
• Power transmission lines
• High-tension overhead line projects
• Rural electrification projects
• Industrial power distribution
• Commercial electrical infrastructure
• Utility feeder systems
• Pole-mounted distribution networks
• Electrical network expansion
• Overhead line rehabilitation
• Power infrastructure construction
• Electrical engineering projects
• EPC electrical projects
• Government electrical infrastructure projects

The conductor should always be selected based on the complete electrical and mechanical design requirements rather than conductor size alone.

120mm² ACSR for Overhead Power Distribution

Overhead electrical networks require conductors that can provide suitable electrical performance while also handling mechanical stresses.

The 120mm² ACSR conductor combines aluminium conductivity with steel reinforcement. This construction can be advantageous in overhead systems where mechanical strength and conductor tension are important considerations.

During project design, engineers may need to consider:

• System voltage
• Design current
• Conductor ampacity
• Span length
• Sag and tension
• Wind loading
• Ambient temperature
• Operating temperature
• Pole or tower configuration
• Short-circuit requirements
• Conductor fittings
• Applicable electrical standards

A properly selected conductor helps ensure that the overhead electrical system is designed around appropriate electrical and mechanical parameters.

Aluminium Conductor Cable Sizes

C.DIVINE aluminium conductor products are available in different conductor sizes and constructions depending on project requirements and availability.

Aluminium Conductor Size	Type	Product Description	Typical Use
35mm²	AAC / AAAC	35mm² Aluminium Conductor	Overhead distribution
50mm²	AAC / AAAC	50mm² Aluminium Conductor	Distribution networks
70mm²	AAC / AAAC	70mm² Aluminium Conductor	Power distribution
100mm²	AAC / AAAC	100mm² Aluminium Conductor	Utility networks
120mm²	AAC / AAAC	120mm² Aluminium Conductor	Overhead power networks
150mm²	AAC / AAAC	150mm² Aluminium Conductor	Power distribution
100mm²	ACSR	100mm² ACSR Aluminium Conductor	Reinforced overhead lines
120mm²	ACSR	120mm² ACSR Aluminium Conductor	Utility and power networks
150mm²	ACSR	150mm² ACSR Aluminium Conductor	Higher-strength overhead lines

Note: The table is intended as a product-size guide. Actual strand configuration, conductor diameter, aluminium/steel ratio, DC resistance, mass, breaking load and current-carrying capacity should be confirmed from the applicable C.DIVINE technical specification.

Why Choose C.DIVINE 120mm² ACSR Conductor?

Choosing the correct overhead conductor is important for electrical infrastructure projects. C.DIVINE’s 120mm² ACSR conductor is intended for customers seeking an aluminium conductor solution with reinforced mechanical construction.

Electrical Conductivity

The aluminium strands provide the primary current-carrying function of the conductor.

Mechanical Reinforcement

The steel core provides additional mechanical support, making the ACSR design suitable for overhead applications where tensile performance is important.

Professional Electrical Infrastructure

The product is suitable for appropriately engineered power distribution and overhead electrical applications.

Range of Conductor Sizes

Customers can select from different aluminium conductor sizes depending on their project requirements.

Suitable for Nigerian Projects

The product is positioned for electrical contractors, distributors and project buyers sourcing overhead electrical conductors for projects in Lagos and across Nigeria.

120mm² ACSR Aluminium Conductor Cable in Nigeria

Nigeria has significant requirements for electrical distribution infrastructure, industrial development, construction, utility networks and power-related projects.

Electrical contractors and project procurement teams often need to source AAC, AAAC and ACSR aluminium conductors for overhead electrical installations.

The C.DIVINE 120mm² ACSR Aluminium Conductor Cable can be considered by customers searching for:

• 120mm² ACSR cable Nigeria
• 120mm² ACSR cable Lagos
• 120mm² aluminium conductor cable
• 120mm² overhead line conductor
• ACSR aluminium conductor
• AAC aluminium conductor
• AAAC aluminium conductor
• Aluminium overhead line wire
• Aluminium conductor cable Nigeria
• Aluminium conductor cable Lagos
• High-tension electrical materials
• High-tension electrical equipment
• Overhead power line cable
• Power distribution conductor
• Electrical utility conductor
• C.DIVINE aluminium conductor

For Electrical Contractors and Project Procurement

The C.DIVINE 120mm² ACSR conductor can be suitable for professional procurement requirements.

Potential customers include:

• Electrical contractors
• Electrical engineers
• Power distribution contractors
• Transmission contractors
• EPC companies
• Industrial companies
• Construction companies
• Electrical wholesalers
• Electrical material distributors
• Utility contractors
• Government project contractors
• Infrastructure developers
• Industrial facility managers
• Electrical project procurement teams

For project quantities, customers should provide the required conductor size, conductor type, standard, quantity and intended application when requesting a quotation.

Installation and Handling

ACSR conductors should be installed by qualified electrical professionals using appropriate overhead line installation procedures.

Care should be taken during transportation, storage and installation to prevent unnecessary damage to the aluminium strands and steel reinforcement.

Project teams should also verify:

• Conductor specifications
• Span length
• Sag and tension requirements
• Pole or tower strength
• Insulator arrangement
• Clamps and fittings
• Connectors
• Earthing requirements
• Installation equipment
• Applicable safety procedures

For high-voltage electrical installations, qualified engineers should ensure that the complete system complies with relevant Nigerian and applicable international requirements.

Buy 120mm² ACSR Aluminium Conductor Cable in Lagos Nigeria

If you are searching for where to buy 120mm² ACSR Aluminium Conductor Cable in Lagos Nigeria, C.DIVINE aluminium conductor products are designed for professional electrical infrastructure and overhead line applications.

The product is relevant to buyers searching for original aluminium conductor cable, ACSR overhead line conductor, AAC conductor, AAAC conductor, aluminium overhead wire and high-tension electrical materials.

Before purchasing, provide the supplier with the required conductor type, size, quantity and technical specification to ensure the correct product is supplied for your project.

Frequently Asked Questions

What is 120mm² ACSR cable?

120mm² ACSR cable is an Aluminium Conductor Steel Reinforced overhead conductor with a nominal aluminium cross-sectional area of approximately 120mm² and a steel reinforcement core.

What does ACSR stand for?

ACSR stands for Aluminium Conductor Steel Reinforced.

What is the purpose of the steel core?

The steel core provides mechanical reinforcement, helping the conductor withstand tensile forces associated with overhead line installation and operation.

Is 120mm² ACSR suitable for overhead power lines?

It can be suitable for properly engineered overhead power line applications where its electrical and mechanical characteristics meet the project’s requirements.

What sizes of aluminium conductor are available?

Common sizes include 35mm², 50mm², 70mm², 100mm², 120mm² and 150mm². ACSR variants may include 100mm², 120mm² and 150mm², subject to specific product construction and availability.

What is the difference between AAC and ACSR?

AAC is an All Aluminium Conductor, while ACSR incorporates a steel-reinforced core within aluminium conductor strands. Their electrical and mechanical characteristics differ.

Can I use 120mm² ACSR for a high-tension electrical project?

The suitability depends on the project’s voltage, current, span, mechanical loading, environmental conditions and applicable standards. A qualified electrical engineer should confirm the conductor specification before installation.
