Description

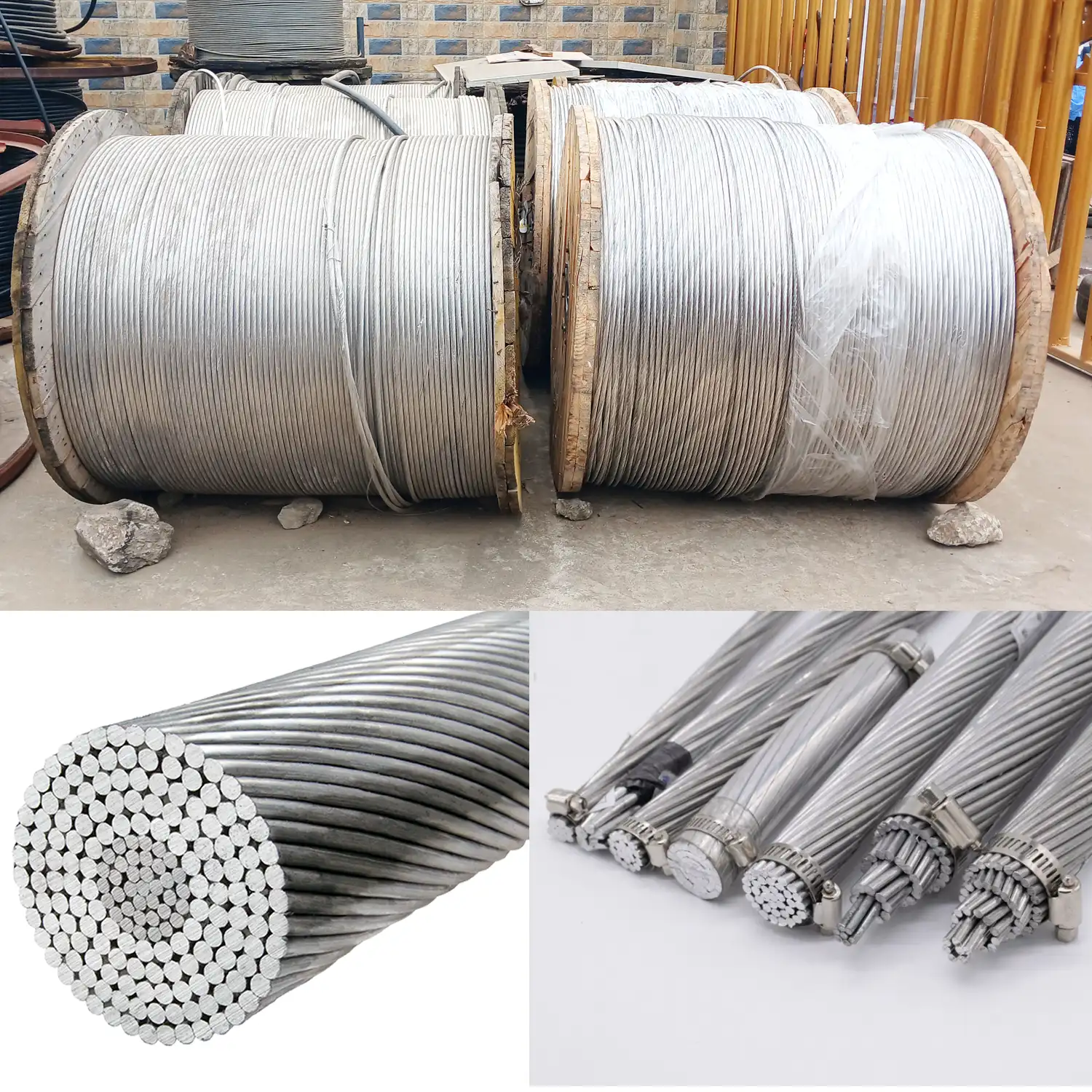

150mm² Aluminium Conductor Cable – C.Divine

The C.Divine 150mm² Aluminium Conductor Cable is designed for overhead electrical networks where a larger conductor cross-sectional area is required for the project’s electrical and mechanical design.
Aluminium is widely used in overhead power transmission and distribution because it provides useful electrical conductivity while weighing considerably less than copper. This lower density can offer practical benefits in transportation, handling and overhead-line installation.

A 150mm² aluminium conductor has a nominal cross-sectional area of approximately 150 square millimetres. It is a larger conductor size than 35mm², 50mm², 70mm², 100mm² and 120mm² options and may be considered for higher-capacity electrical distribution requirements, subject to proper engineering calculations.

C.Divine aluminium conductor products are available in different constructions, including AAC (All Aluminium Conductor), AAAC (All Aluminium Alloy Conductor), and ACSR (Aluminium Conductor Steel Reinforced) where specified.

For Nigerian customers searching online for 150mm² aluminium cable, 150mm² aluminium conductor, AAC conductor, AAAC conductor, ACSR cable, aluminium overhead line wire, high-tension electrical materials and electrical equipment in Lagos Nigeria, C.Divine provides a practical option for suitable electrical infrastructure projects.

What Is a 150mm² Aluminium Conductor Cable?

A 150mm² Aluminium Conductor Cable is an overhead electrical conductor with a nominal cross-sectional area of approximately 150 square millimetres.

The conductor cross-sectional area is an important parameter used when designing electrical transmission and distribution systems. However, selecting a conductor based only on its size is not sufficient.

A qualified electrical engineer should consider:

• System voltage
• Expected electrical load
• Current-carrying capacity
• Conductor construction
• Operating temperature
• Ambient conditions
• Span length
• Sag and tension
• Wind loading
• Mechanical strength
• Electrical clearances
• Applicable technical standards

AAC – All Aluminium Conductor

AAC stands for All Aluminium Conductor. It consists of stranded aluminium wires and is commonly used for suitable overhead distribution applications where conductivity and relatively low conductor weight are important.

AAAC – All Aluminium Alloy Conductor

AAAC means All Aluminium Alloy Conductor. It uses aluminium alloy strands and offers different mechanical characteristics from conventional AAC.

ACSR – Aluminium Conductor Steel Reinforced

ACSR means Aluminium Conductor Steel Reinforced. It combines aluminium conducting strands with a steel reinforcing core, providing increased mechanical strength for suitable overhead-line applications.

Key Features of C.Divine 150mm² Aluminium Conductor Cable

1. 150mm² Large Conductor Size

The 150mm² size provides a larger conductor option for suitable overhead power distribution and electrical infrastructure requirements.

2. Aluminium Conductive Material

Aluminium offers useful electrical conductivity combined with relatively low density, making it widely used in overhead electrical networks.

3. Lightweight Compared with Copper

The relatively low density of aluminium can provide advantages during transportation, handling and overhead-line installation.

4. AAC, AAAC and ACSR Options

Different conductor constructions provide flexibility for selecting the appropriate electrical and mechanical characteristics for a particular project.

5. Suitable for Higher-Capacity Applications

The 150mm² conductor can be considered for appropriate higher-capacity overhead distribution and electrical infrastructure projects.

6. Suitable for Nigerian Electrical Infrastructure

C.Divine 150mm² Aluminium Conductor Cable is suitable for electrical contractors, engineers, distributors, utility projects and industrial customers sourcing overhead electrical materials in Nigeria.

Bare Conductor Types
(1) all aluminum conductor (AAC)
AAC used in overhead electric power transmission and distribution lines with various grade voltages.
Mainly used in urban areas for electricity transfer where the spacing is short and the supports are closer together. Apart
from that, these conductors are also extensively used in coastal area because of their corrosion resistance properties

(2) all aluminum alloy conductor(AAAC)
The aluminum alloy conductors are used in replace of single-layer ACSR conductors to reduce power
loss in overhead distribution and transmission lines,when replacing the aluminum conductor steel reinforced , the AAAC
can save 5-8% of the construction cost.

(3) aluminum conductor steel reinforced (ACSR)
Used as bare overhead transmission conductor and as primary and secondary distribution conductor
andmessenger support. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength
to be achieved without sacrificing ampacity.

(4)aluminum conductor aluminum alloy reinforced(ACAR)

ASTM B232 Standard:

AAC vs AAAC vs ACSR Aluminium Conductors

The conductor construction is an important part of product selection.

Conductor Type	Full Name	General Characteristics	Typical Consideration
AAC	All Aluminium Conductor	Aluminium strands with good conductivity and relatively low weight	Suitable overhead distribution applications
AAAC	All Aluminium Alloy Conductor	Aluminium alloy strands with different mechanical characteristics	Overhead lines requiring enhanced mechanical performance
ACSR	Aluminium Conductor Steel Reinforced	Aluminium strands surrounding a steel reinforcing core	Longer spans and applications requiring greater mechanical strength

The final selection should be based on electrical calculations, mechanical loading, span length, sag and tension, environmental conditions and applicable engineering standards.

Applications of 150mm² Aluminium Conductor Cable

The C.Divine 150mm² Aluminium Conductor Cable can be considered for a range of suitable electrical infrastructure applications, including:

• Overhead electrical distribution lines
• Utility power distribution networks
• Industrial power distribution
• Commercial electrical infrastructure
• Rural electrification projects
• Electrical network extensions
• Power utility projects
• Overhead line construction
• Industrial estates
• Large infrastructure developments
• Distribution network upgrades
• Electrical engineering projects
• Power network expansion
• High-tension electrical infrastructure where technically appropriate
• Electrical contractor projects

The final application should be determined according to the electrical and mechanical design of the installation.

Aluminium Conductor Cable Sizes

C.Divine Aluminium Conductor Cable products are available in various sizes and constructions for different overhead electrical requirements.

Aluminium Conductor Size	Conductor Type	General Application
35mm²	AAC / AAAC / ACSR*	Overhead distribution and suitable electrical network applications
50mm²	AAC / AAAC / ACSR*	Overhead distribution and utility applications
70mm²	AAC / AAAC / ACSR*	Distribution and higher-capacity overhead applications
100mm²	AAC / AAAC	Larger overhead distribution applications
100mm² ACSR	ACSR	Overhead lines requiring enhanced mechanical strength
120mm²	AAC / AAAC	Distribution and power network applications
120mm² ACSR	ACSR	Longer-span overhead line applications
150mm²	AAC / AAAC	Higher-capacity overhead electrical networks
150mm² ACSR	ACSR	Applications requiring higher tensile/mechanical performance

*Specific conductor construction and availability should be confirmed according to the required C.Divine product specification.

Benefits of 150mm² Aluminium Conductor

Good Electrical Conductivity

Aluminium is extensively used in overhead electrical systems because of its useful electrical conductivity and relatively low density.

Reduced Conductor Weight

Compared with copper, aluminium has a significantly lower density. This can provide practical advantages for overhead power-line transportation, handling and structural design.

Larger Cross-Sectional Area

The 150mm² conductor provides a larger conductor option than 35mm², 50mm², 70mm², 100mm² and 120mm² sizes for applications requiring an appropriately larger conductor.

Practical Overhead Power Solution

When correctly specified, aluminium conductor can provide a practical balance between electrical performance, weight and project economics.

Multiple Conductor Constructions

AAC, AAAC and ACSR configurations provide options for different electrical and mechanical requirements.

150mm² Aluminium Conductor Cable for Nigeria

Nigeria’s electrical infrastructure requires a wide range of conductors and power equipment for utility distribution, industrial facilities, commercial developments, rural electrification and network expansion.

The C.Divine 150mm² Aluminium Conductor Cable is intended for customers sourcing larger aluminium overhead conductors for suitable electrical infrastructure projects.

For customers in Lagos, Nigeria, conductor selection should be based on the complete engineering specification rather than conductor size alone.

If you are searching Google for where to buy 150mm² aluminium conductor cable in Nigeria, specify the required conductor construction, length, voltage application and technical standard when requesting a quotation.

150mm² AAC Aluminium Conductor

150mm² AAC means 150mm² All Aluminium Conductor. It consists of stranded aluminium wires and can be considered for suitable overhead electrical distribution applications.

AAC can be appropriate where the required electrical conductivity and mechanical characteristics meet the project’s design.

Before installation, the conductor’s ampacity and mechanical properties should be verified against the applicable requirements.

150mm² AAAC Aluminium Conductor

150mm² AAAC means 150mm² All Aluminium Alloy Conductor.

AAAC uses aluminium alloy strands and provides different mechanical characteristics compared with conventional AAC. It can be considered for overhead power systems where particular mechanical performance is required.

The exact conductor construction and specification should be confirmed before ordering.

150mm² ACSR Aluminium Conductor

150mm² ACSR combines aluminium conducting strands with a steel reinforcing core.

The steel core provides additional mechanical strength, making ACSR suitable for particular overhead-line applications where increased tensile performance is required.

For longer spans, engineers should consider span length, sag, tension, wind loading, conductor temperature and mechanical loading when selecting the ACSR specification.

Installation Considerations

Proper installation is essential for safe and reliable overhead electrical operation.

Before installation, qualified electrical professionals should verify:

• Required conductor cross-sectional area.
• AAC, AAAC or ACSR construction.
• System voltage.
• Required current-carrying capacity.
• Maximum conductor operating temperature.
• Pole or tower spacing.
• Span length.
• Sag and tension requirements.
• Wind and environmental loading.
• Electrical clearances.
• Connector and fitting compatibility.
• Applicable electrical standards.

Installation should be carried out by qualified electrical professionals using appropriate tools, fittings and approved procedures.

High-Tension Electrical Materials for Nigerian Projects

A complete overhead electrical installation requires more than an aluminium conductor.

Depending on the project, electrical contractors may also require:

• High-voltage insulators
• Crossarms
• Electrical poles
• Transmission towers
• Line clamps
• Compression connectors
• Earthing materials
• Transformers
• Switchgear
• Surge protection equipment
• Electrical protection devices
• Overhead line accessories

C.Divine aluminium conductors can form part of a broader electrical-material procurement requirement for suitable utility, industrial and infrastructure projects.

Buying 150mm² Aluminium Conductor Cable in Lagos Nigeria

When purchasing 150mm² Aluminium Conductor Cable in Lagos, buyers should confirm the complete technical specification before placing an order.

Important information includes:

• Conductor size: 150mm²
• Conductor type: AAC, AAAC or ACSR
• Required strand configuration
• System voltage/application
• Required conductor length
• Current/load requirements
• Project specifications
• Applicable technical standard
• Required fittings and accessories

Providing these details helps suppliers identify the appropriate conductor for the intended installation.

C.Divine Aluminium Conductor Cable for Electrical Contractors

Electrical contractors, engineers, utility companies, distributors and construction companies require properly specified conductors for overhead electrical projects.

The C.Divine 150mm² Aluminium Conductor Cable provides a larger aluminium conductor option for suitable power distribution and electrical infrastructure applications.

Whether you require 150mm² AAC, 150mm² AAAC, 150mm² ACSR, aluminium overhead line wire or other high-tension electrical materials, confirm the complete technical specification before purchase.

Why Choose C.Divine 150mm² Aluminium Conductor Cable?

C.Divine 150mm² Aluminium Conductor Cable provides a practical option for customers sourcing larger aluminium overhead conductors in Nigeria.

Key benefits include:

• 150mm² aluminium conductor size
• Suitable for overhead electrical applications
• Lightweight aluminium construction
• AAC and AAAC options
• ACSR option where specified
• Suitable for utility and industrial projects
• Practical for electrical contractors and engineers
• Suitable for power distribution infrastructure
• Available for electrical-material sourcing in Nigeria
• Appropriate for projects where technical requirements are satisfied

Order 150mm² Aluminium Conductor Cable – C.Divine

If you are searching for 150mm² Aluminium Conductor Cable in Nigeria, C.Divine provides an option for electrical contractors, engineers, distributors, construction companies, utility projects and industrial customers.

For customers in Lagos and across Nigeria searching for 150mm² aluminium cable, 150mm² aluminium conductor, AAC overhead wire, AAAC conductor, ACSR cable, aluminium overhead line wire, high-tension electrical materials or electrical power equipment, provide your required technical specifications when requesting a quotation.

When ordering, specify whether you require AAC, AAAC or ACSR, together with the required conductor size, length, construction, technical standard and intended application.

Frequently Asked Questions

What is 150mm² Aluminium Conductor Cable?

150mm² Aluminium Conductor Cable is an overhead electrical conductor with a nominal cross-sectional area of 150 square millimetres. Depending on the project specification, it may be supplied as AAC, AAAC or ACSR.

What is 150mm² AAC?

150mm² AAC means 150mm² All Aluminium Conductor. It consists of stranded aluminium wires and is suitable for overhead applications where its electrical and mechanical characteristics meet the project requirements.

What is 150mm² AAAC?

150mm² AAAC means 150mm² All Aluminium Alloy Conductor. It uses aluminium alloy strands and provides different mechanical characteristics from conventional AAC.

What is 150mm² ACSR?

150mm² ACSR is an Aluminium Conductor Steel Reinforced construction that combines aluminium conducting strands with a steel reinforcing core for increased mechanical strength.

Where can 150mm² Aluminium Conductor Cable be used?

It can be considered for suitable overhead electrical distribution, utility, industrial, rural electrification and infrastructure projects. Final suitability depends on the engineering design.

Is 150mm² aluminium conductor suitable for high-tension applications?

It can be suitable for specific overhead electrical applications depending on conductor construction, system voltage, current requirements, span, mechanical loading and applicable standards. A qualified electrical engineer should confirm suitability.

Where can I buy 150mm² Aluminium Conductor Cable in Nigeria?

Customers searching for 150mm² Aluminium Conductor Cable in Lagos and across Nigeria can contact C.Divine electrical-material suppliers to confirm availability, technical specifications, pricing and delivery options.
