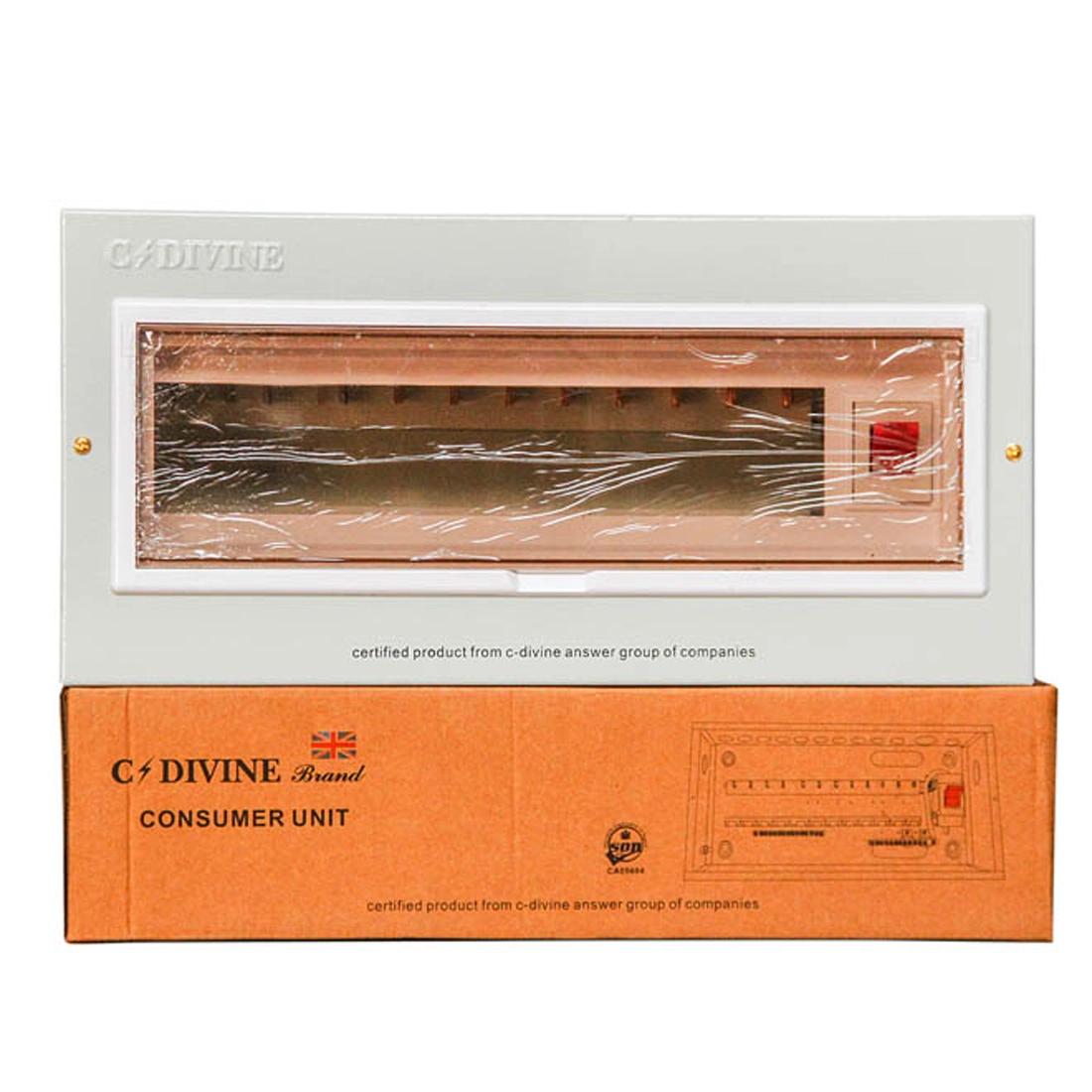

12way Single Phase – Consumer Unit Distribution Board CW MCB

Description

12-Way Single Phase Consumer Unit Distribution Board with MCB

The 12-Way Single Phase Consumer Unit Distribution Board with MCB is a practical electrical distribution solution designed for residential, commercial, office, and other compatible single-phase electrical installations. With 12 available ways, this consumer unit provides space for organising multiple outgoing circuits and installing suitable miniature circuit breakers (MCBs) for individual circuit protection.

For Nigerian customers searching online for quality consumer unit distribution boards, 12-way electrical distribution boards, single-phase consumer units, MCB distribution boards, and electrical materials in Lagos Nigeria, this product is a useful option for electricians, electrical contractors, homeowners, property developers, offices, shops, workshops, and businesses.

12-Way Single Phase Consumer Unit Overview

A consumer unit, also known as a distribution board or consumer panel, provides a central point for distributing electrical power to multiple circuits. The 12-Way Single Phase Consumer Unit Distribution Board is designed to accommodate multiple outgoing circuit protection devices, helping keep the electrical installation organised.

The board can be configured with appropriately rated MCBs to protect individual circuits against overload and short-circuit conditions. Depending on the installation design, circuits can include lighting, socket outlets, air-conditioning, water heaters, kitchen equipment, pumps, and other suitable loads.

The exact configuration should always be determined by a qualified electrical professional.

Key Features

• 12-way configuration
• Single-phase electrical application
• Designed for compatible MCB installation
• Multiple outgoing circuit positions
• Organised circuit distribution
• Suitable for individual circuit protection
• Practical consumer unit design
• Suitable for residential applications
• Suitable for offices, shops, and commercial spaces
• Useful for electricians and electrical contractors

Benefits of 12-Way Consumer Unit Distribution Board

12 Circuit Ways

The 12-way configuration provides more circuit capacity than smaller consumer units. This makes it suitable for buildings requiring several separately protected electrical circuits.

The available ways can be allocated according to the electrical design and load requirements.

Organised Circuit Distribution

A central consumer unit helps organise electrical circuits in one location. This can make individual circuits easier to identify, isolate, inspect, and maintain.

MCB Circuit Protection

Compatible Miniature Circuit Breakers (MCBs) can be used to provide individual overcurrent protection for outgoing circuits. Correctly selected MCBs can help disconnect circuits when an overload or short circuit occurs.

MCB ratings should correspond to the cable size, connected load, circuit design, and applicable electrical requirements.

Single-Phase Compatibility

The unit is designed for compatible single-phase electrical systems, making it suitable for many residential properties and smaller commercial installations.

Room for Multiple Electrical Circuits

With 12 ways available, the distribution board can accommodate a greater number of circuits than 4-way, 6-way, or 8-way consumer units. This can be useful for larger homes, offices, shops, and other properties with multiple electrical loads.

Applications

The 12-Way Single Phase Consumer Unit Distribution Board with MCB can be suitable for:

• Residential homes
• Apartments
• Offices
• Shops
• Restaurants
• Workshops
• Small commercial buildings
• Property developments
• Rental properties
• Renovation projects
• Suitable single-phase electrical installations

Potential circuits may include lighting, sockets, air conditioners, water heaters, pumps, kitchen appliances, and other compatible loads.

Why Choose a 12-Way Consumer Unit?

A 12-way consumer unit provides additional circuit capacity for electrical installations with numerous outgoing circuits. It can be particularly useful where several loads need separate circuit protection and isolation.

Compared with a smaller distribution board, the 12-way configuration provides greater flexibility for circuit organisation and may also provide additional space for future circuit requirements, subject to the board’s design.

Before installation, the electrical load should be calculated and the appropriate protective devices selected.

12-Way Consumer Unit in Lagos Nigeria

Customers searching online for a 12-Way Single Phase Consumer Unit Distribution Board with MCB in Lagos Nigeria can consider this product for suitable residential and commercial electrical projects.

It is relevant to electricians, electrical contractors, homeowners, construction companies, property developers, facility managers, offices, shops, workshops, and businesses looking for reliable electrical distribution equipment.

Before purchasing, confirm the number of ways, rated current, voltage, MCB compatibility, enclosure specifications, dimensions, incoming supply arrangement, neutral and earth configuration, and applicable electrical standards.

Installation should be performed by a qualified electrician.

Complementary Electrical Products

The 12-way consumer unit can be used alongside suitable MCBs, RCCBs, RCBOs, main switches, isolators, surge protection devices, electrical cables, cable glands, busbars, earthing accessories, sockets, switches, and other electrical protection equipment.

The correct combination should be determined according to the electrical design and required protection scheme.

Important Installation Considerations

Before installing the 12-Way Single Phase Consumer Unit, ensure that:

• The board is suitable for the incoming electrical supply.
• The total connected load is within the board’s rated capacity.
• Appropriate MCB ratings are selected for each circuit.
• Cable sizes match the circuit and protective-device ratings.
• Suitable main protection is provided.
• Neutral and earth connections are correctly arranged.
• RCD/RCCB or RCBO protection is installed where required.
• Circuits are clearly labelled.
• The board is securely mounted and accessible.
• The installation complies with applicable Nigerian electrical requirements.
• Installation and testing are carried out by a qualified electrician.

Never overload the consumer unit or use protective devices outside their specified ratings.

Product Specifications

Product Name: 12-Way Single Phase Consumer Unit Distribution Board with MCB
Product Type: Consumer Unit / Distribution Board
Configuration: 12 Way
Electrical System: Single Phase
Protection: MCB Compatible
Application: Electrical Distribution and Circuit Protection
Suitable For: Residential, Commercial and Other Compatible Single-Phase Installations
Primary Use: Circuit Distribution, Switching and Protection
