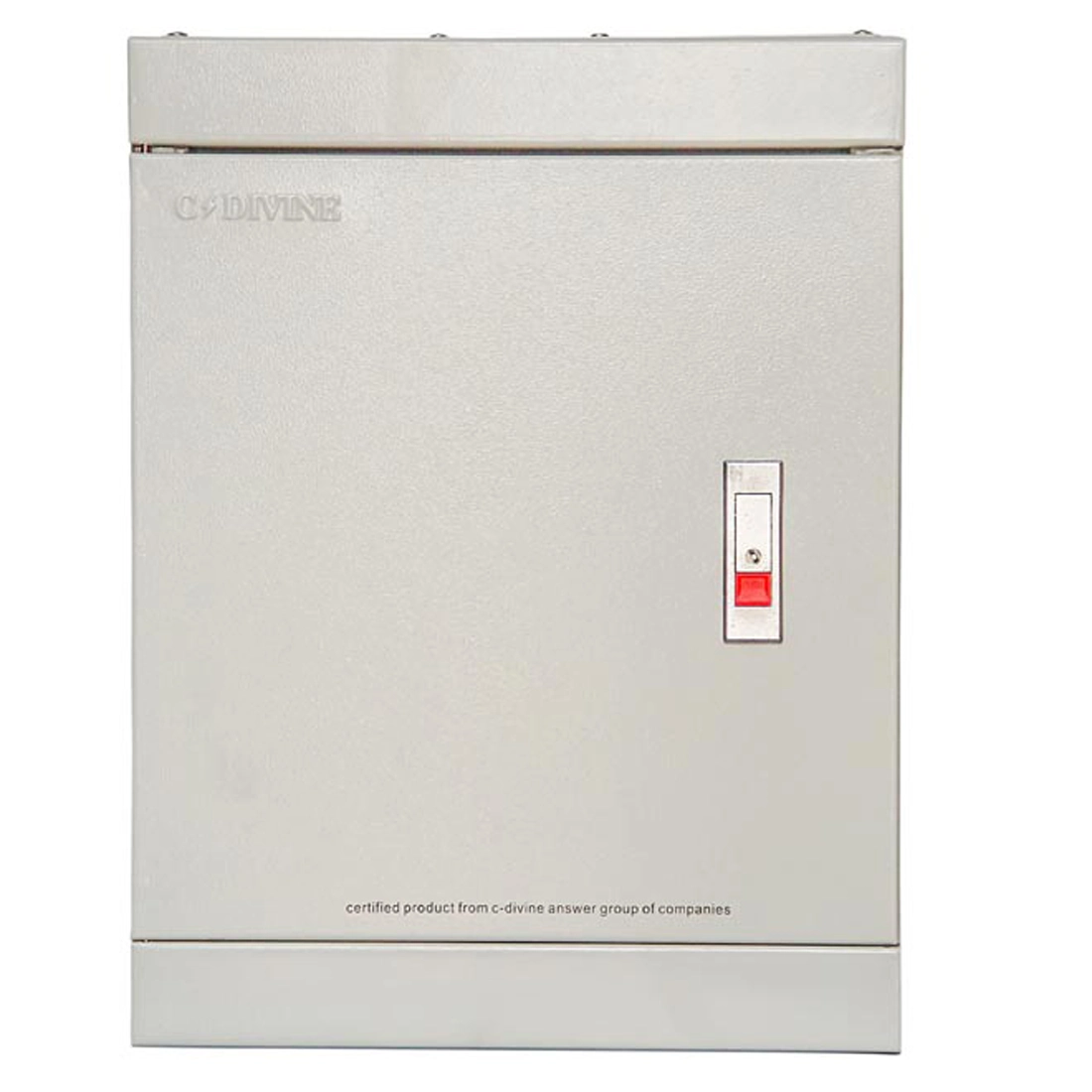

8 Way 63A Consumer Unit SPN Distribution Board

Description

8 Way 63A Consumer Unit SPN Distribution Board

The 8 Way 63A Consumer Unit SPN Distribution Board is a practical electrical distribution solution designed for suitable single-phase electrical installations requiring multiple protected outgoing circuits. With an 8-way configuration and 63A rating, this consumer unit can provide an organised central point for distributing electricity and installing appropriate circuit protection devices.

For Nigerian customers searching online for quality consumer units, 8-way distribution boards, 63A consumer units, SPN distribution boards, MCB distribution boards, and electrical materials in Lagos Nigeria, this product is suitable for electricians, electrical contractors, homeowners, offices, shops, property developers, workshops, and small commercial buildings.

8 Way 63A Consumer Unit SPN Distribution Board Overview

A consumer unit or distribution board provides a central location where electrical power can be distributed to individual circuits. The 8 Way 63A SPN Distribution Board is designed for single-phase applications and provides up to eight ways for compatible circuit protection devices, depending on the specific configuration.

The 63A rating makes it suitable for electrical systems designed within that rated capacity. Individual circuits can be protected using appropriately selected MCBs or other compatible protective devices.

A correctly configured consumer unit helps keep electrical circuits organised while making circuit isolation and maintenance more convenient.

Key Features

• 8-way configuration
• 63A rated capacity
• SPN single-phase design
• Suitable for compatible MCB installation
• Multiple outgoing circuit positions
• Organised electrical circuit distribution
• Suitable for residential installations
• Suitable for offices and shops
• Useful for small commercial properties
• Practical for electricians and electrical contractors

Benefits of 8 Way 63A Consumer Unit

Eight Circuit Ways

The 8-way configuration provides space for multiple outgoing circuits within a central enclosure. This can be useful for installations with separate lighting, socket, air-conditioning, water-heating, kitchen, or other suitable circuits.

The exact circuit arrangement should be determined by the electrical design.

63A Rated Capacity

The 63A rating provides a defined current capacity for the consumer unit. It should be used only in installations where the incoming supply, connected loads, protective devices, and conductors are appropriately rated.

Single-Phase Distribution

The SPN configuration is designed for compatible single-phase electrical systems, making it suitable for many homes and smaller commercial installations.

MCB Compatibility

Appropriately rated Miniature Circuit Breakers (MCBs) can be installed to provide individual overcurrent protection for outgoing circuits. Correct MCB selection helps protect circuits against overload and short-circuit conditions.

Organised Circuit Management

A consumer unit provides a central location for circuit distribution and protection. This makes it easier for electricians and authorised users to identify and isolate individual circuits during maintenance.

Applications

The 8 Way 63A Consumer Unit SPN Distribution Board can be suitable for:

• Residential homes
• Apartments
• Offices
• Shops
• Small businesses
• Workshops
• Rental properties
• Property developments
• Renovation projects
• Small commercial buildings
• Compatible single-phase electrical installations

The actual application should be based on the electrical load and protection requirements of the building.

Why Choose an 8-Way 63A Consumer Unit?

An 8-way consumer unit provides additional circuit capacity compared with smaller 4-way distribution boards. This can be useful when an installation requires several separately protected circuits or when some provision for future circuit additions is desirable.

The 63A SPN configuration makes it suitable for compatible single-phase systems where the incoming supply and total electrical load are within the specified limits.

A qualified electrician should calculate the expected demand and select the appropriate protective devices before installation.

8 Way 63A Consumer Unit in Lagos Nigeria

Customers searching online for an 8 Way 63A Consumer Unit SPN Distribution Board in Lagos Nigeria can consider this product for suitable residential, office, shop, workshop, and small commercial electrical installations.

It is relevant to electricians, electrical contractors, property developers, construction companies, facility managers, homeowners, businesses, and maintenance professionals.

Before purchasing, confirm the 63A rating, number of ways, SPN configuration, MCB compatibility, incoming supply requirements, enclosure dimensions, neutral and earth arrangements, and applicable electrical standards.

Installation should be carried out by a qualified electrician.

Complementary Electrical Products

The 8-way SPN distribution board can be used alongside suitable MCBs, RCCBs, RCBOs, main switches, isolators, surge protection devices, electrical cables, cable glands, busbars, earthing accessories, sockets, switches, and other electrical protection equipment.

The appropriate combination depends on the design and protection requirements of the electrical installation.

Important Installation Considerations

Before installing the 8 Way 63A Consumer Unit, ensure that:

• The unit is suitable for the incoming single-phase supply.
• The total electrical load is compatible with the 63A rating.
• Appropriate MCB ratings are selected for each circuit.
• Cable sizes correspond with circuit requirements.
• The incoming supply is adequately protected.
• Neutral and earth connections are correctly arranged.
• RCD/RCCB or RCBO protection is provided where required.
• Circuit identification is clearly maintained.
• The enclosure is securely mounted and accessible.
• The installation complies with applicable Nigerian electrical requirements.
• Installation and testing are performed by a qualified electrician.

The consumer unit should not be overloaded or operated outside its specified ratings.

Product Specifications

Product Name: 8 Way 63A Consumer Unit SPN Distribution Board
Product Type: Consumer Unit / Distribution Board
Configuration: 8 Way
Rated Current: 63A
Electrical System: Single Phase
Arrangement: SPN
Protection: MCB Compatible
Application: Electrical Distribution and Circuit Protection
Suitable For: Residential, Commercial and Compatible Single-Phase Installations
Primary Use: Circuit Distribution, Switching and Protection
