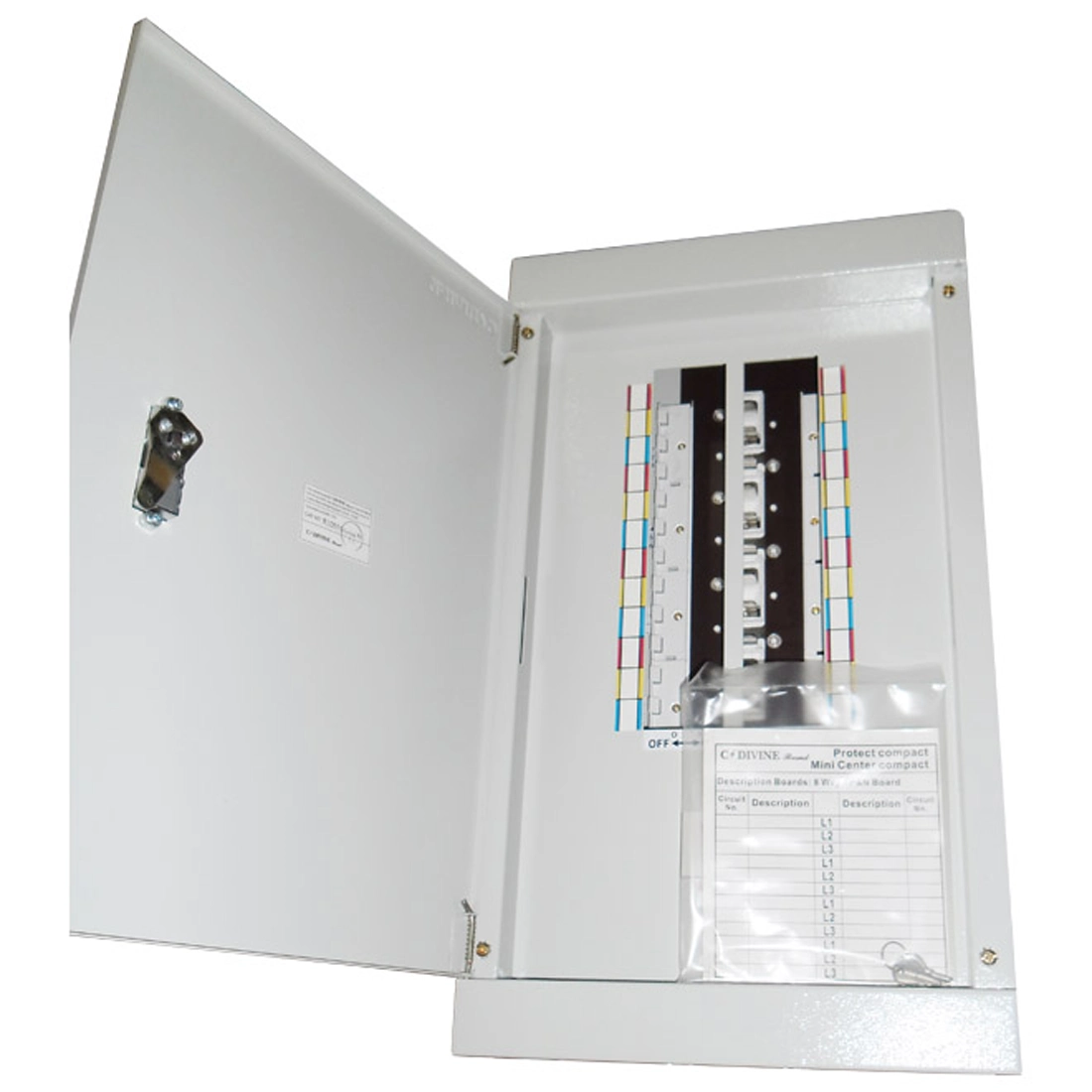

Distribution Board (D8) 8 Way TP&N Board

Description

Distribution Board (D8) 8 Way TP&N Board

The Distribution Board (D8) 8 Way TP&N Board is a practical electrical distribution solution designed for compatible three-phase and neutral (TP&N) electrical installations. With an 8-way configuration, it provides a central location for distributing electrical power to multiple outgoing circuits while accommodating suitable protective devices such as MCBs.

For Nigerian customers searching online for quality distribution boards, 8-way TP&N boards, three-phase distribution boards, MCB distribution boards, electrical panels, and electrical materials in Lagos Nigeria, the D8 8 Way TP&N Board is suitable for electricians, electrical contractors, construction companies, commercial properties, workshops, offices, and industrial installations.

D8 8 Way TP&N Distribution Board Overview

A TP&N distribution board is designed for electrical systems incorporating three phases and a neutral. It provides an organised point where incoming electrical power can be distributed to multiple outgoing circuits.

The D8 8 Way TP&N Board offers eight outgoing ways, allowing electrical circuits to be arranged and protected according to the requirements of the installation. Compatible circuit breakers and protective devices should be selected based on the electrical load, cable sizes, system voltage, and applicable installation requirements.

Its configuration makes it particularly useful for installations with multiple three-phase or single-phase outgoing circuits.

Key Features

• 8-way distribution configuration
• TP&N (Three Pole and Neutral) arrangement
• Designed for compatible three-phase electrical systems
• Suitable for MCB installation where specified
• Multiple outgoing circuit positions
• Organised electrical power distribution
• Suitable for commercial applications
• Suitable for industrial installations
• Useful for offices, workshops, and facilities
• Practical for electricians and electrical contractors

Benefits of D8 8 Way TP&N Board

Eight-Way Circuit Capacity

The 8-way configuration provides space for multiple outgoing circuits from a central distribution point. This makes the board suitable for electrical installations with several independent loads.

Individual ways can be allocated according to the electrical design, such as lighting, sockets, air-conditioning, pumps, machinery, and other suitable electrical circuits.

Three-Phase and Neutral Distribution

The TP&N configuration is designed for compatible three-phase systems where neutral distribution is required. It can support appropriately designed three-phase and single-phase outgoing circuits.

Proper phase allocation and load balancing are important when configuring a three-phase distribution system.

Supports Circuit Protection

Compatible Miniature Circuit Breakers (MCBs) and other protective devices can be used to provide appropriate protection for outgoing circuits. Correctly selected circuit breakers can help disconnect circuits during overload or short-circuit conditions.

Centralised Circuit Management

A distribution board provides a central location for circuit protection and distribution. This makes electrical circuits easier to identify, isolate, inspect, and maintain by qualified personnel.

Suitable for Commercial and Industrial Applications

An 8-way TP&N board can be useful in commercial and industrial environments where multiple electrical circuits require structured distribution and protection.

Applications

The Distribution Board D8 8 Way TP&N Board can be suitable for:

• Commercial buildings
• Industrial facilities
• Offices
• Shops
• Workshops
• Warehouses
• Hotels
• Schools and institutions
• Construction projects
• Property developments
• Machinery installations
• Three-phase electrical systems

The actual application should be determined according to the electrical design and the board’s technical specifications.

Why Choose an 8 Way TP&N Distribution Board?

A properly selected distribution board helps keep electrical circuits organised while providing a central location for circuit protection. The 8-way TP&N configuration provides multiple outgoing circuit positions and is suitable for installations requiring three-phase and neutral distribution.

It can also provide flexibility when distributing different electrical loads across the three phases. Proper phase balancing can help prevent excessive loading on an individual phase.

When selecting a distribution board, consider rated current, voltage, number of ways, phase configuration, breaker compatibility, short-circuit rating, enclosure requirements, and installation environment.

D8 8 Way TP&N Board in Lagos Nigeria

Customers searching online for a Distribution Board (D8) 8 Way TP&N Board in Lagos Nigeria can consider this product for suitable commercial, industrial, construction, and electrical installation projects.

It is relevant to electricians, electrical contractors, construction companies, property developers, facility managers, industrial businesses, offices, workshops, and commercial property owners.

Before purchasing, confirm the required rated current, system voltage, 8-way configuration, breaker compatibility, busbar arrangement, neutral and earth configuration, enclosure dimensions, and applicable electrical standards.

Installation should be carried out by a qualified electrician.

Complementary Electrical Products

The D8 TP&N distribution board can be used with compatible MCBs, MCCBs, RCCBs, RCBOs, main switches, isolators, surge protection devices, contactors, electrical cables, cable glands, earthing accessories, meters, sockets, switches, and other electrical protection equipment.

The correct combination depends on the electrical system design and protection requirements.

Important Installation Considerations

Before installing the D8 8 Way TP&N Distribution Board, ensure that:

• The board is suitable for the incoming three-phase supply.
• The rated current and voltage match the installation.
• Appropriate circuit breakers are selected for each outgoing circuit.
• Cable sizes correspond with the circuit and protective-device ratings.
• Electrical loads are correctly calculated.
• Three-phase loads are appropriately balanced.
• Neutral and earth connections are correctly arranged.
• Suitable RCD/RCCB/RCBO protection is provided where required.
• Adequate short-circuit protection is provided.
• The enclosure is properly mounted and accessible.
• The installation complies with applicable Nigerian electrical requirements.
• Installation and testing are performed by a qualified electrician.

Never exceed the distribution board’s specified electrical ratings.

Product Specifications

Product Name: Distribution Board (D8) 8 Way TP&N Board
Product Type: Three-Phase Distribution Board
Model: D8
Configuration: 8 Way
System: TP&N
Electrical Supply: Three Phase and Neutral
Protection: Compatible MCBs and Other Protective Devices, Subject to Model
Application: Electrical Distribution and Circuit Protection
Suitable For: Commercial, Industrial and Compatible Three-Phase Installations
Primary Use: Three-Phase Circuit Distribution and Protection
