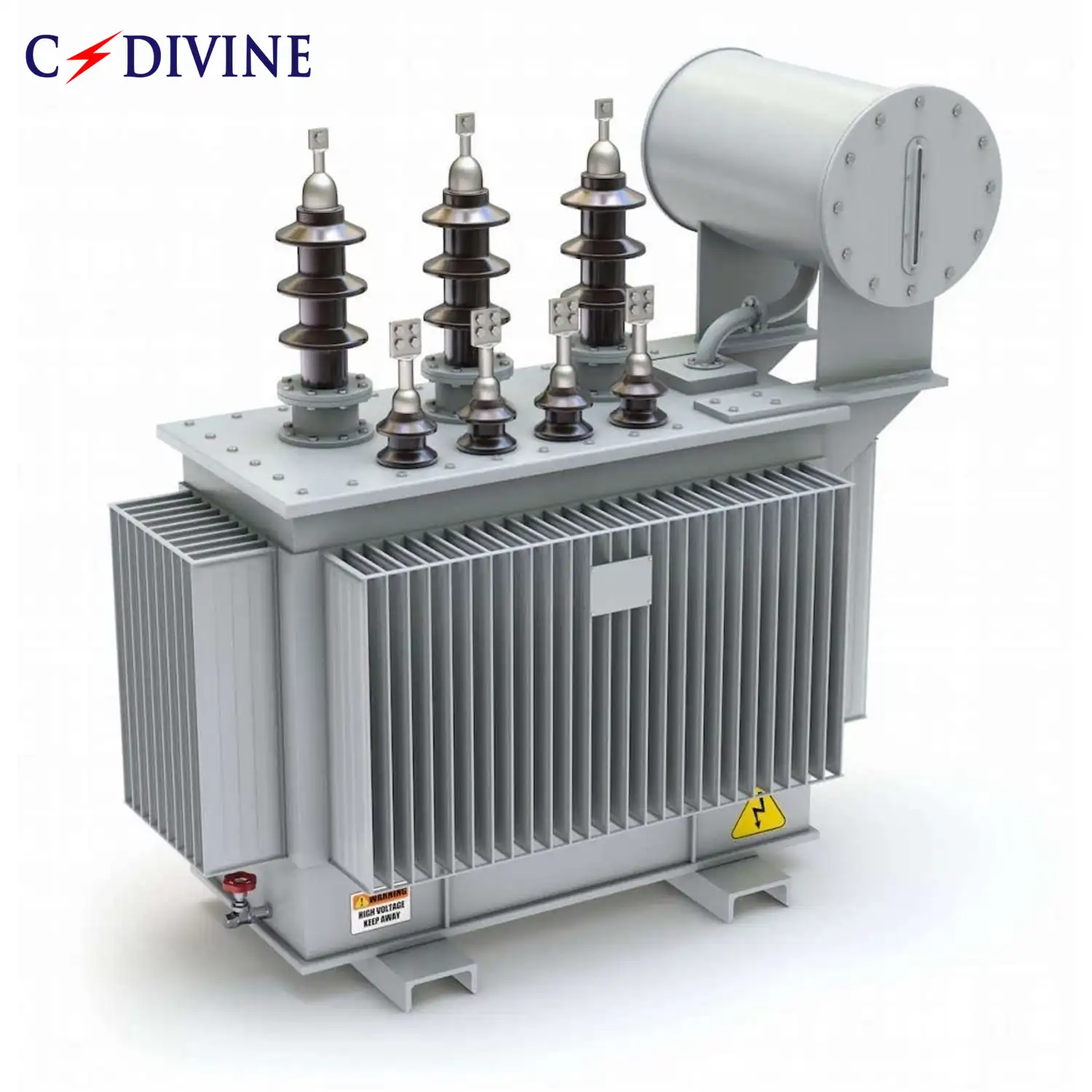

300kVA 33kV Oil Immersed Distribution Transformer

Reliable electrical power distribution requires a properly specified transformer capable of handling the required electrical load and operating voltage. The C.DIVINE 300kVA 33kV Oil Immersed Distribution Transformer is designed for medium-voltage distribution applications where dependable voltage transformation and continuous electrical service are important.

With a 300kVA rated capacity and 33kV high-voltage configuration, this transformer is suitable for electrical distribution systems requiring a 33kV-to-low-voltage transformation solution.

It can be specified for factories, industrial facilities, commercial properties, residential estates, warehouses, hotels, institutions, farms, infrastructure projects and private electrical substations.

For customers searching for an original 300kVA transformer in Lagos Nigeria, this C.DIVINE transformer can be specified according to the electrical requirements of the installation.

Technical specification note: Primary voltage, secondary voltage, frequency, vector group, impedance, insulation level, tap arrangement, cooling arrangement, bushings and other parameters should be confirmed before ordering.

What Is a 300kVA 33kV Transformer?

A 300kVA 33kV transformer is a distribution transformer with a rated apparent power capacity of 300kVA and a high-voltage winding designed for a 33kV electrical system.

The transformer transfers electrical energy between voltage levels through electromagnetic induction. In a typical distribution application, the 33kV incoming supply is stepped down to a lower voltage suitable for the facility’s electrical distribution system.

The actual secondary voltage must be specified according to the project requirements.

The 300kVA rating indicates the transformer’s apparent power capacity. Proper transformer sizing should be based on a professional load calculation, taking into consideration existing loads, maximum demand, diversity and possible future expansion.

Oil Immersed Distribution Transformer

The C.DIVINE 300kVA transformer uses an oil immersed construction. In this type of transformer, the active electrical components are immersed in insulating transformer oil.

Transformer oil performs two major functions:

Electrical Insulation

The insulating oil helps provide electrical insulation between the transformer windings, core and other internal components.

Heat Dissipation

Electrical losses generate heat during transformer operation. The transformer oil helps transfer heat away from the active components toward the transformer tank and cooling surfaces.

This makes oil immersed transformer technology widely suitable for distribution and substation applications.

33kV Distribution Transformer

A 33kV distribution transformer is designed for electrical systems operating at the corresponding medium-voltage level.

The C.DIVINE 300kVA 33kV transformer can be considered for applications involving:

• 33kV distribution networks
• Private substations
• Industrial power distribution
• Commercial power systems
• Residential estates
• Manufacturing facilities
• Warehouses
• Hotels
• Agricultural facilities
• Infrastructure projects

The transformer’s complete electrical specification should be coordinated with the incoming utility or private distribution network.

300kVA Transformer Applications

Industrial Power Distribution

Factories and manufacturing facilities often require dedicated transformers to supply production machinery, motors, lighting, HVAC systems and other electrical equipment.

A 300kVA transformer can be suitable where the calculated electrical demand is within its rated capacity and the transformer is correctly specified for the installation.

Commercial Buildings

Shopping centres, office buildings, hotels, warehouses and other commercial properties may use dedicated transformer installations to distribute electrical power.

Residential Estates

Large residential estates can require dedicated transformer capacity to distribute electrical energy to multiple buildings and associated facilities.

Private Substations

Industrial and commercial customers requiring dedicated medium-voltage infrastructure can incorporate a 300kVA oil immersed transformer into a private substation.

Infrastructure Projects

Transformers can also be used as part of electrical infrastructure for agricultural, water, construction and other development projects.

300kVA Transformer Capacity

The 300kVA capacity provides a substantial level of electrical distribution capacity for appropriately designed installations.

However, transformer capacity should not be selected based only on the total connected load. A professional electrical load assessment should consider:

• Connected load
• Maximum demand
• Diversity factor
• Motor starting requirements
• Power factor
• Existing transformer loading
• Future expansion
• Required reserve capacity
• Voltage regulation

Selecting the appropriate capacity helps prevent unnecessary overloading and improves the reliability of the electrical distribution system.

High Voltage Transformer Bushings

The 33kV side of the transformer requires appropriately rated high-voltage bushings for connection to the incoming electrical network.

Transformer bushings provide an insulated path through the transformer enclosure for electrical conductors while maintaining the necessary electrical insulation between energized components and the grounded tank.

Depending on the design, the transformer may incorporate:

• 33kV HV bushings
• Low-voltage bushings
• Neutral connection
• Phase terminals
• Cable termination arrangements
• External conductor connection points

The bushing specification must correspond to the transformer’s voltage class, current rating, insulation level and mechanical configuration.

Low Voltage Transformer Connections

The low-voltage side of the 300kVA transformer supplies the downstream electrical distribution system.

Appropriate LV bushings and terminals are required to connect the transformer to:

• Low-voltage switchboards
• Distribution boards
• Busbars
• Armoured cables
• Industrial electrical panels
• Building distribution systems

The low-voltage output should be confirmed before purchasing the transformer.

Advantages of a 300kVA Oil Immersed Transformer

The C.DIVINE 300kVA 33kV oil immersed transformer offers several advantages for appropriately designed electrical distribution systems:

• 300kVA rated capacity
• 33kV high-voltage configuration
• Three-phase distribution application
• Oil immersed construction
• Suitable for medium-voltage systems
• Suitable for industrial installations
• Suitable for commercial properties
• Suitable for residential estates
• Suitable for private substations
• Suitable for infrastructure projects
• HV and LV bushing connection options
• Designed for dependable power distribution

How to Choose the Right 300kVA Transformer

Before purchasing a 300kVA 33kV distribution transformer, confirm the following technical requirements.

1. Primary Voltage

Confirm that the incoming electrical supply is 33kV and that the transformer high-voltage winding is designed for the applicable system.

2. Secondary Voltage

Specify the required low-voltage output for the downstream electrical network.

3. Transformer Capacity

Confirm through load calculations that 300kVA is appropriate for the present and anticipated electrical demand.

4. Frequency

Confirm the required operating frequency according to the electrical network and project specification.

5. Vector Group

The required vector group should be selected according to the system configuration and protection requirements.

6. Impedance

Transformer impedance affects voltage regulation and available fault current and should be coordinated with the electrical protection design.

7. Tap Arrangement

Where voltage regulation is required, the appropriate transformer tap arrangement should be specified.

8. Bushings

Confirm the required HV and LV bushing specifications, terminal configuration and connection method.

Installation of a 300kVA 33kV Transformer

A 33kV transformer installation should be undertaken by appropriately qualified electrical engineers and technicians.

The installation may require associated equipment such as:

• 33kV switchgear
• Circuit breakers
• Ring main units
• Lightning arresters
• High-voltage cables
• Cable terminations
• Protective relays
• Earthing equipment
• Low-voltage switchgear
• Distribution boards
• Metering equipment

Before energization, the complete system should be inspected and tested according to the applicable engineering requirements and manufacturer’s recommendations.

Transformer Maintenance

Regular transformer inspection and maintenance are important for reliable operation.

Maintenance activities may include inspection of:

• Transformer oil
• Oil level
• HV bushings
• LV bushings
• Cable connections
• Earthing system
• Transformer tank
• Oil leakage
• Electrical terminals
• Protective equipment
• Abnormal temperature
• Unusual noise or vibration

Oil condition should be monitored according to the manufacturer’s recommended maintenance programme.

Any signs of oil leakage, damaged bushings, overheating, abnormal noise or other unusual operating conditions should be investigated by qualified personnel.

300kVA 33kV Transformer for Nigeria

The 300kVA 33kV oil immersed distribution transformer can be suitable for Nigerian electrical distribution projects where a 33kV medium-voltage supply needs to be transformed to an appropriate low-voltage distribution level.

It can be considered for installations in:

• Lagos
• Industrial estates
• Commercial centres
• Residential estates
• Factories
• Warehouses
• Construction sites
• Agricultural facilities
• Hotels
• Institutions
• Private substations

For installations in Lagos and other parts of Nigeria, transformer selection should take into account the local electrical network, environmental conditions, installation location and applicable electrical requirements.

Buy 300kVA 33kV Oil Immersed Transformer in Lagos Nigeria

If you are searching for where to buy a 300kVA 33kV oil immersed distribution transformer in Lagos Nigeria, C.DIVINE provides transformer solutions for commercial, industrial and private electrical distribution applications.

The 300kVA 33kV transformer is suitable for projects requiring medium-voltage power transformation and can be integrated into a properly designed electrical substation.

When requesting a quotation, provide the required:

• Transformer capacity: 300kVA
• High-voltage rating: 33kV
• Low-voltage rating: Specify required output
• Phase configuration
• Frequency
• Vector group
• Impedance
• Tap arrangement
• HV/LV bushing requirements
• Installation conditions

Providing these details helps ensure that the transformer supplied matches the project’s electrical requirements.

Order C.DIVINE 300kVA 33kV Distribution Transformer

The C.DIVINE 300kVA 33kV Oil Immersed Distribution Transformer is designed for dependable medium-voltage electrical power distribution in industrial, commercial, residential and infrastructure applications.

Its 300kVA capacity, 33kV high-voltage configuration and oil immersed construction make it suitable for appropriately engineered private substations and distribution systems.

C.DIVINE — 300kVA 33kV Oil Immersed Distribution Transformer for reliable electrical power distribution in Lagos and across Nigeria.
