Description

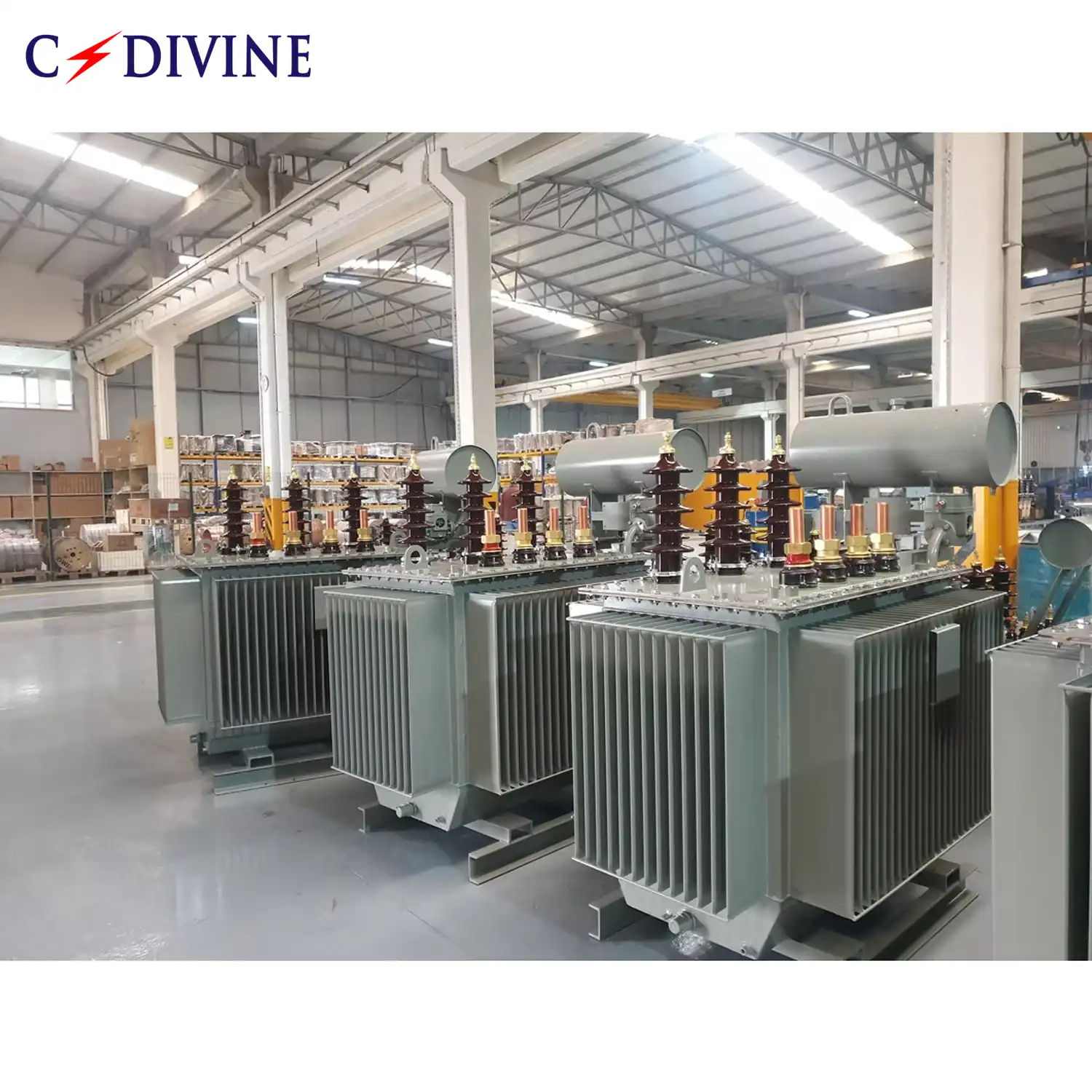

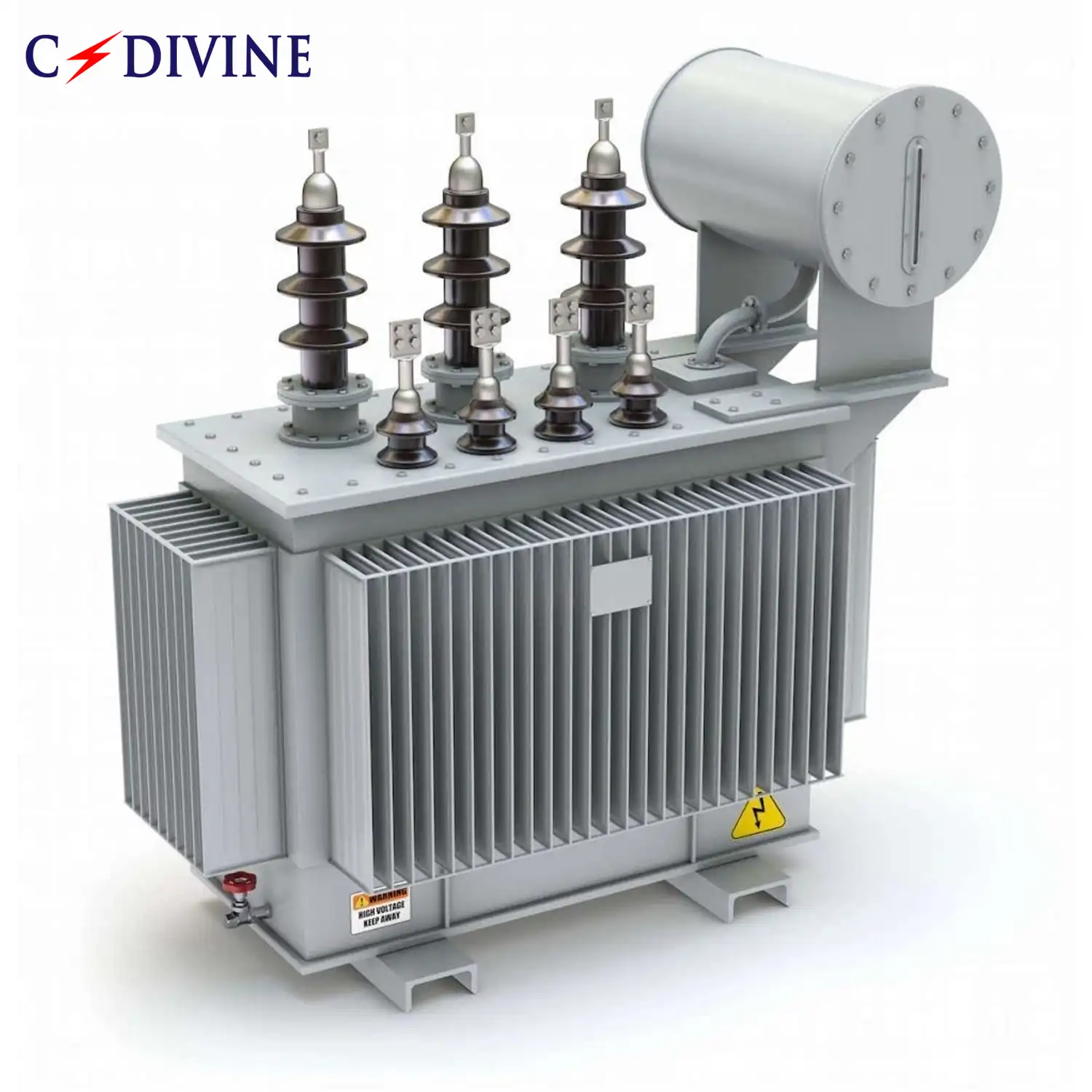

6kV 11kV 15kV 30kVA–1600kVA Three Phase Oil Immersed Distribution Power Electrical Transformer

Reliable electrical power distribution requires a transformer that can safely and efficiently step voltage up or down according to the requirements of the electrical network. The C.DIVINE Three Phase Oil Immersed Distribution Power Electrical Transformer is designed for electrical power distribution applications where durability, dependable performance and efficient voltage transformation are essential.

Available in 6kV, 11kV and 15kV high-voltage configurations, with transformer capacities ranging from 30kVA to 1600kVA, this oil immersed distribution transformer can be specified for different commercial, industrial, residential, utility and infrastructure projects.

If you are searching online for an original electrical power transformer in Lagos Nigeria, a three phase oil immersed transformer, high tension transformer, 11kV distribution transformer, or high-voltage transformer equipment, C.DIVINE provides transformer solutions suitable for a wide range of electrical distribution applications.

Available Transformer Ratings

The transformer can be supplied in different power capacities to accommodate different electrical loads and distribution requirements.

Voltage options can include 6kV, 11kV and 15kV, depending on the electrical network and project specification.

Important: Transformer voltage, vector group, impedance, frequency, insulation level, tap arrangement and other technical specifications should be confirmed against the project’s electrical design before ordering.

What Is an Oil Immersed Distribution Transformer?

An oil immersed distribution transformer is an electrical transformer in which the active transformer components, including the windings and magnetic core assembly, operate within insulating transformer oil.

The insulating oil performs two important functions: electrical insulation and heat dissipation. During transformer operation, losses in the core and windings generate heat. The oil helps transfer this heat away from the active components to the transformer tank and surrounding environment.

This construction makes oil immersed transformers widely suitable for outdoor electrical distribution systems, industrial installations, substations and utility applications.

The three-phase configuration is particularly suitable for three-phase electrical networks because it allows balanced three-phase power transformation within a single transformer unit.

High Voltage 6kV, 11kV and 15kV Transformer Options

Electrical distribution networks operate at different voltage levels depending on the location, utility network and project requirements.

The C.DIVINE transformer range can be specified for applications involving:

• 6kV high-voltage systems
• 11kV high-voltage distribution systems
• 15kV high-voltage systems
• Three-phase electrical distribution
• Commercial power networks
• Industrial power distribution
• Private substations
• Infrastructure projects
• Utility distribution applications

The 11kV transformer configuration is particularly relevant to many medium-voltage distribution applications, while 6kV and 15kV options can be selected where required by the electrical network.

Three Phase Oil Immersed Power Transformer

A three phase oil immersed power transformer is designed to transform electrical voltage within a three-phase power system.

Depending on the required design, the transformer can be used to reduce medium/high voltage to a lower utilization voltage for supplying:

• Factories
• Warehouses
• Shopping complexes
• Hotels
• Office buildings
• Residential estates
• Hospitals
• Schools
• Construction projects
• Manufacturing facilities
• Industrial plants
• Commercial properties
• Electrical substations

The correct transformer capacity should be selected based on the connected load, maximum demand, future expansion requirements, diversity factor and other relevant electrical design considerations.

30kVA to 1600kVA Transformer Capacity Range

Choosing the correct kVA rating is essential when purchasing an electrical power transformer.

The C.DIVINE range covers smaller distribution requirements beginning at 30kVA, through intermediate capacities such as 100kVA, 160kVA, 250kVA and 400kVA, up to high-capacity 630kVA, 1250kVA and 1600kVA transformer configurations.

30kVA Transformer

A 30kVA three-phase transformer can be suitable for smaller electrical distribution installations where the calculated load falls within its designed capacity.

50kVA Transformer

The 50kVA transformer provides additional capacity for commercial, residential and light industrial electrical applications.

63kVA Transformer

A 63kVA distribution transformer is suitable for applications requiring a medium-capacity three-phase power supply.

100kVA Transformer

A 100kVA oil immersed transformer can be used for commercial buildings, workshops, institutional facilities and various industrial applications.

160kVA Transformer

The 160kVA transformer provides increased electrical capacity for larger commercial and industrial loads.

250kVA Transformer

A 250kVA three-phase transformer is suitable for larger facilities where greater power distribution capacity is required.

400kVA Transformer

The 400kVA oil immersed transformer can support substantial commercial and industrial electrical distribution requirements.

630kVA Transformer

A 630kVA transformer is designed for higher-capacity distribution systems, including demanding commercial and industrial applications.

1250kVA and 1600kVA Transformers

For large industrial facilities and high-load distribution networks, 1250kVA and 1600kVA transformer options provide substantially greater power-handling capacity.

The appropriate rating should always be determined from a properly calculated electrical load assessment rather than simply selecting the largest available transformer.

Transformer High Voltage and Low Voltage Bushings

Transformer bushings are important components of high-voltage and low-voltage transformer systems. They provide an insulated passage through the transformer tank for electrical conductors while maintaining electrical isolation between energized components and the grounded transformer enclosure.

Depending on the transformer design, bushings may be provided for:

• High-voltage connections
• Low-voltage connections
• Neutral connections
• Phase connections
• External cable or conductor termination
• Medium-voltage distribution systems

When searching for transformer bushing insulators in Nigeria, it is important to match the bushing’s electrical rating, insulation level, physical dimensions and connection arrangement with the transformer specification.

High Tension Electrical Equipment for Nigeria

For electrical contractors, engineering companies, facility managers, developers and industrial users, selecting appropriate high tension equipment is critical for safe and dependable power distribution.

A properly specified distribution transformer forms part of a broader electrical system that may include:

• High-voltage switchgear
• Ring main units
• Circuit breakers
• Disconnectors
• Lightning arresters
• Drop-out fuses
• Current transformers
• Voltage transformers
• Transformer bushings
• Earthing systems
• Low-voltage distribution boards
• Cables and cable accessories
• Protection and metering equipment

The transformer should therefore be integrated into the overall protection, earthing and distribution design by qualified electrical professionals.

Applications of 6kV–15kV Oil Immersed Transformers

C.DIVINE oil immersed distribution transformers can be specified for a wide range of applications, including:

Industrial Power Distribution

Factories and manufacturing plants often require dedicated transformers to supply production equipment, motors, lighting and other electrical loads.

Commercial Buildings

Shopping centres, office complexes, hotels, warehouses and commercial properties can use distribution transformers to provide the required electrical supply.

Residential Estates

Large residential developments may require dedicated transformer capacity to distribute electrical power efficiently to multiple buildings.

Infrastructure Projects

Transformers can form part of electrical infrastructure for construction, transportation, water treatment and other development projects.

Private Substations

Industrial and commercial customers requiring dedicated medium-voltage electrical infrastructure can incorporate oil immersed transformers into private substations.

Why Choose a C.DIVINE Distribution Transformer?

The C.DIVINE transformer range is designed around the requirements of electrical power distribution applications.

Key advantages include:

• Three-phase transformer configuration
• Oil immersed construction
• 6kV, 11kV and 15kV voltage options
• 30kVA–1600kVA capacity range
• Suitable for commercial and industrial applications
• Designed for dependable electrical power distribution
• High-voltage and low-voltage termination options
• Suitable for integration into substations
• Available for projects in Lagos and across Nigeria
• Suitable for professional electrical installation

How to Choose the Right Electrical Transformer

Before purchasing an 11kV, 15kV or 6kV electrical transformer, several parameters should be established.

1. Determine the Required kVA

Calculate the present and anticipated electrical load. Consider future expansion rather than selecting a transformer solely according to current consumption.

2. Confirm the Primary Voltage

The transformer’s high-voltage winding must match the voltage of the incoming electrical network. Common requirements may include 6kV, 11kV or 15kV.

3. Confirm the Secondary Voltage

The low-voltage output must correspond to the requirements of the downstream electrical system.

4. Confirm Phase Configuration

For a three-phase distribution system, select the appropriate three-phase transformer configuration.

5. Check Transformer Protection

The transformer should be coordinated with suitable high-voltage protection, low-voltage protection, earthing and surge protection equipment.

6. Confirm Installation Conditions

Outdoor temperature, altitude, ventilation, accessibility, environmental conditions and installation location can affect transformer selection and installation requirements.

Buy Electrical Power Transformer in Lagos Nigeria

If you are looking for where to buy an original electrical power transformer in Lagos Nigeria, the C.DIVINE range provides options for different medium-voltage and distribution applications.

Whether you require a 30kVA transformer for a smaller installation, a 100kVA or 250kVA transformer for commercial applications, or a 630kVA, 1250kVA or 1600kVA transformer for large industrial power distribution, the correct specification can be selected according to your electrical project requirements.

Customers in Lagos and other parts of Nigeria can request transformer specifications based on the required voltage, kVA rating, frequency, winding configuration, vector group, impedance, tap changer arrangement, insulation level and installation requirements.

Transformer Installation and Maintenance

Oil immersed transformers should be installed and commissioned by appropriately qualified electrical engineers or technicians.

Before energization, the installation should be checked for appropriate:

• Earthing
• Cable termination
• HV/LV connections
• Protection settings
• Insulation condition
• Oil condition
• Bushing condition
• Mechanical integrity
• Transformer clearances
• Surge protection
• Safety procedures

Regular inspection and maintenance can help identify potential problems before they develop into major electrical failures.

Order C.DIVINE Three Phase Oil Immersed Transformer

For reliable electrical distribution, selecting the correct transformer specification is essential. The C.DIVINE 6kV, 11kV and 15kV Three Phase Oil Immersed Distribution Power Electrical Transformer, available from 30kVA to 1600kVA, provides a flexible solution for commercial, industrial, residential and infrastructure power distribution requirements.

Whether your project requires a 30kVA, 50kVA, 63kVA, 100kVA, 160kVA, 250kVA, 400kVA, 630kVA, 1250kVA or 1600kVA oil immersed transformer, confirm the required transformer rating and electrical specifications before purchase.

For customers searching for high tension equipment, electrical power transformers, three-phase oil immersed transformers, single-phase oil immersed transformers, transformer bushing insulators, high-voltage equipment and low-voltage transformer accessories in Lagos Nigeria, C.DIVINE offers transformer solutions suitable for professional electrical distribution projects.
