Description

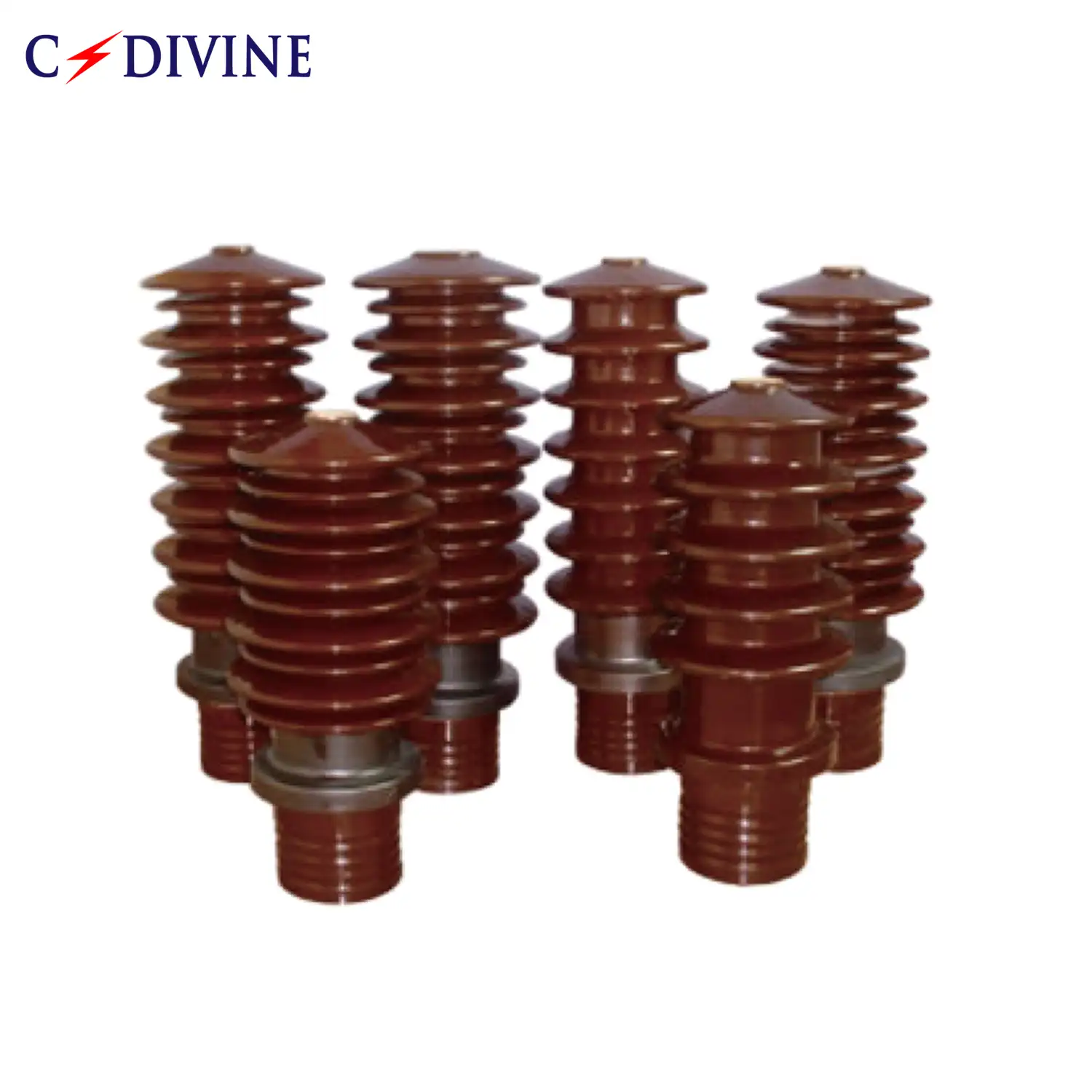

Transformer Bushing Insulator High Voltage and Low Voltage

A transformer bushing insulator is an essential component of an electrical power transformer. It provides an insulated passage for electrical conductors to enter or leave the transformer tank while maintaining electrical isolation between energized conductors and the grounded transformer enclosure.

The C.DIVINE High Voltage and Low Voltage Transformer Bushing Insulator is designed for use with electrical power transformers, oil immersed distribution transformers and substation equipment.

Transformer bushings are available in different voltage, current, insulation and mechanical configurations. Therefore, selecting the correct bushing requires matching its technical specifications with the transformer and electrical network.

For customers searching for transformer bushing insulators in Lagos Nigeria, C.DIVINE provides solutions for both high-voltage (HV) and low-voltage (LV) transformer connections.

What Is a Transformer Bushing?

A transformer bushing is an electrical insulation component that allows a conductor carrying electrical current to pass through a grounded transformer tank or enclosure.

Without an appropriately designed bushing, it would be difficult to bring electrical conductors from the internal transformer windings to external cables or busbars while maintaining the required insulation and safety clearances.

A transformer bushing therefore performs several important functions:

• Provides electrical insulation
• Allows conductors to pass through the transformer tank
• Maintains electrical clearance
• Supports external electrical connections
• Helps prevent unwanted electrical discharge
• Connects transformer windings to external circuits

High Voltage Transformer Bushing Insulator

High-voltage transformer bushings are designed for the HV side of electrical transformers.

They are commonly used on transformers connected to medium-voltage distribution networks and substations.

Depending on the transformer design, high-voltage bushings may be required for systems such as:

• 6kV
• 10kV
• 11kV
• 15kV
• 22kV
• 33kV

The actual bushing voltage rating must correspond to the transformer’s specified system voltage and insulation requirements.

For example, an 11kV transformer bushing should not be selected simply because it physically fits the transformer. Its electrical rating, insulation level, creepage distance, current rating and mechanical configuration must also be appropriate.

Low Voltage Transformer Bushing Insulator

Low-voltage transformer bushings are installed on the LV side of transformers to provide insulated electrical connections between the transformer windings and external low-voltage distribution equipment.

Depending on the transformer design, LV bushings may be used for:

• Phase connections
• Neutral connection
• Busbar connections
• Cable connections
• Distribution board connections
• Low-voltage switchgear

The correct LV bushing should be selected according to the transformer’s secondary voltage and rated current.

Transformer Bushing for Oil Immersed Transformers

Oil immersed transformers require properly designed bushings because the bushing forms part of the electrical and mechanical interface between the transformer’s internal components and the external electrical network.

C.DIVINE transformer bushings can be considered for applications involving:

• Oil immersed distribution transformers
• Three-phase transformers
• Single-phase transformers
• Power transformers
• Distribution substations
• Industrial transformers
• Commercial transformers

The bushing should be compatible with the transformer tank, mounting arrangement, conductor configuration and electrical ratings.

High Voltage and Low Voltage Transformer Applications

Transformer bushings are used across a wide range of electrical power systems.

Distribution Transformers

Bushings provide the external HV and LV connection points required for distribution transformers.

Power Transformers

Higher-capacity power transformers require appropriately rated bushing systems for their high-voltage and low-voltage connections.

Electrical Substations

Substations use transformer bushings as part of the interface between transformers and associated switchgear, cables and busbars.

Industrial Electrical Systems

Factories and industrial facilities with dedicated transformers may require replacement or maintenance of HV and LV bushings.

Commercial Buildings

Commercial properties with private transformers may also require appropriately specified transformer bushing components.

Transformer Bushing Insulator Sizes and Specifications

Transformer bushings are not selected solely by physical size. Electrical and mechanical specifications are equally important.

Important specifications can include:

The exact specifications should be confirmed before purchasing a replacement transformer bushing.

Transformer Bushing Replacement

Transformer bushings can require replacement due to ageing, physical damage, electrical stress, contamination, overheating or other operating conditions.

Signs that a bushing may require inspection include:

• Cracks
• Chipped insulation
• Oil leakage
• Overheating
• Discoloration
• Carbon tracking
• Abnormal electrical discharge
• Loose connections
• Damaged terminals
• Insulation deterioration

Bushing replacement should be carried out by qualified transformer technicians or electrical professionals.

Transformer Bushing for 11kV and 33kV Transformers

For customers working with 11kV and 33kV oil immersed transformers, the correct high-voltage bushing must be selected according to the transformer’s actual electrical specification.

An HV bushing for an 11kV transformer is not automatically suitable for a 33kV transformer.

Similarly, the low-voltage bushing must be selected according to the transformer’s secondary voltage and current rating.

When ordering a transformer bushing, provide the transformer nameplate information whenever possible. This makes it easier to determine compatibility.

Transformer Bushing for Three Phase Transformers

Three-phase transformers commonly require multiple HV and LV connection points.

Depending on the transformer configuration, the bushing arrangement may include:

• HV phase bushings
• LV phase bushings
• Neutral bushing
• Earth connection
• External terminal arrangement

The number and arrangement of bushings depend on the transformer’s winding configuration and design.

Why Choose C.DIVINE Transformer Bushings?

C.DIVINE transformer bushing insulators are suitable for customers requiring components for electrical transformer installation, maintenance and replacement.

Key features include:

• High-voltage bushing options
• Low-voltage bushing options
• Suitable for oil immersed transformers
• Suitable for distribution transformers
• Suitable for power transformers
• Suitable for three-phase transformers
• Suitable for single-phase transformer applications
• Suitable for substation installations
• Suitable for transformer maintenance
• Suitable for replacement applications
• Available for electrical projects in Nigeria

How to Choose the Correct Transformer Bushing

Before purchasing a high-voltage or low-voltage transformer bushing, confirm the following:

1. Transformer Voltage

Check the transformer’s primary and secondary voltage ratings.

2. Current Rating

The bushing must have an appropriate continuous current rating for the transformer connection.

3. Insulation Level

Verify the required insulation level and withstand characteristics.

4. Mounting Dimensions

Check the bushing mounting hole, flange, overall dimensions and installation arrangement.

5. Terminal Configuration

Confirm whether the transformer requires a specific terminal, stud, conductor or busbar arrangement.

6. Creepage and Clearance

For high-voltage applications, appropriate creepage distance and electrical clearance are essential.

7. Transformer Manufacturer and Model

Where possible, provide the transformer nameplate details, manufacturer information and existing bushing specifications when ordering a replacement.

Buy Transformer Bushing Insulator in Lagos Nigeria

If you are searching for where to buy transformer bushing insulators in Lagos Nigeria, C.DIVINE provides high-voltage and low-voltage bushing solutions for electrical power transformers and distribution systems.

These components can be used for oil immersed transformers, three-phase transformers, single-phase transformers, industrial transformers, commercial transformers and electrical substations, subject to correct technical specification.

Whether you require an HV transformer bushing for an 11kV or 33kV transformer, or an LV transformer bushing for the secondary side, ensure the replacement component matches the original transformer’s electrical and mechanical specifications.

Order High Voltage & Low Voltage Transformer Bushings

The C.DIVINE Transformer Bushing Insulator High Voltage and Low Voltage range is designed for electrical transformer connection, insulation, maintenance and replacement applications.

For accurate selection, provide the transformer voltage, kVA rating, current rating, bushing dimensions, mounting arrangement, conductor size and transformer nameplate information.

C.DIVINE — Transformer Bushing Insulators for High-Voltage and Low-Voltage Electrical Power Transformer Applications in Nigeria.
