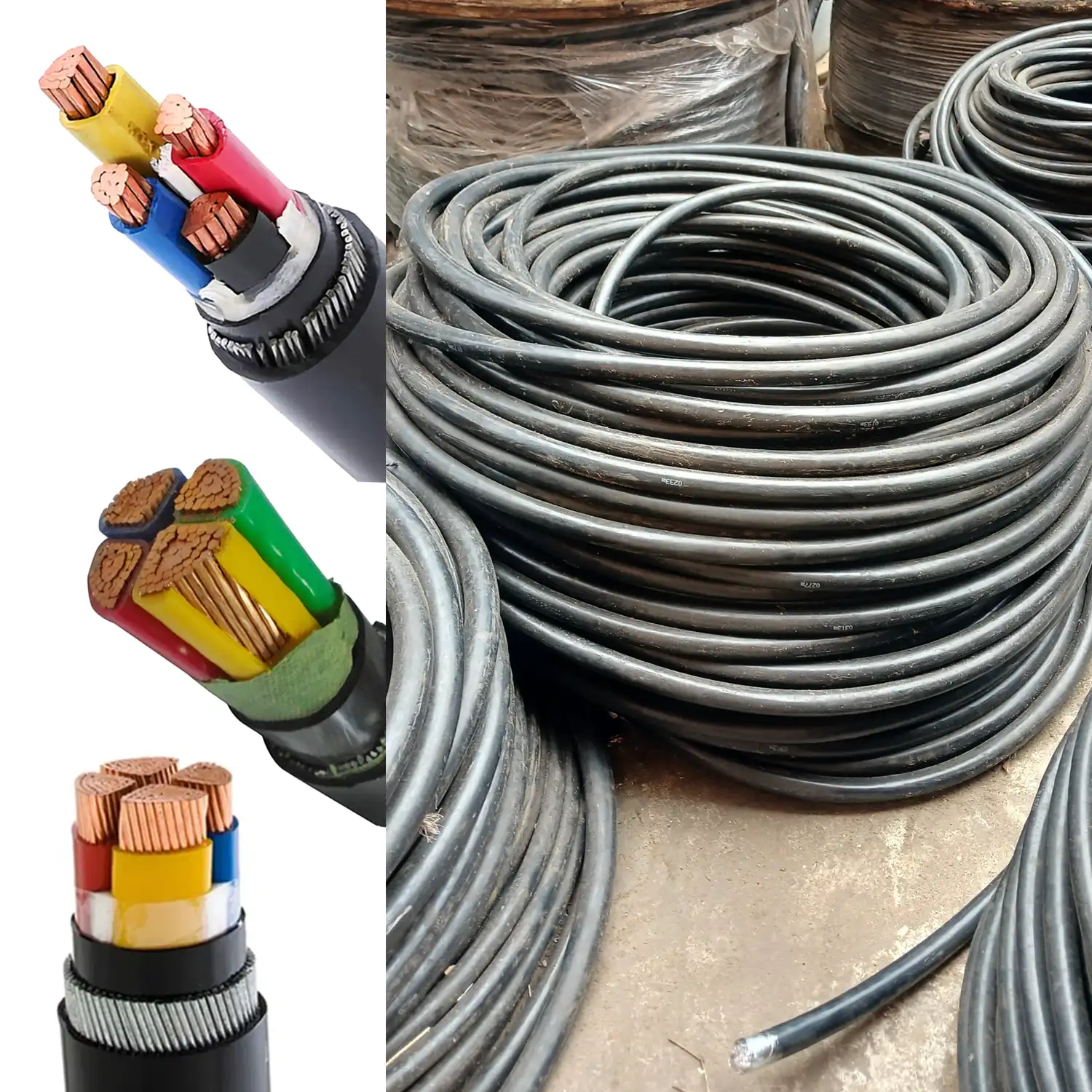

35mm² X 4 Core Armoured Cable – C.DIVINE

Reliable electrical power distribution requires a cable that is correctly selected for the connected load, installation environment, cable length, voltage drop, protection system, and applicable electrical standards.

The 35mm² X 4 Core Armoured Cable 600/1000V PVC/SWA/XLPE Power Cable – C.DIVINE CABLE is designed for electrical installations requiring a robust four-core copper armoured power cable.

The cable combines:

• 35mm² copper conductors
• 4-core configuration
• XLPE conductor insulation
• PVC bedding
• Steel Wire Armour (SWA)
• PVC outer sheath
• 600/1000V voltage rating

This type of CU/XLPE/PVC/SWA/PVC construction is widely used for low-voltage power-distribution systems and fixed electrical installations. Comparable 4 × 35mm² copper SWA cables are specified to IEC 60502-1 with XLPE insulation and galvanized steel-wire armour.

For Nigerian customers searching Google for 35mm² 4 Core Armoured Cable, 35mm² SWA Cable, 35mm² XLPE Copper Cable, 600/1000V Armoured Power Cable, or where to buy original armoured cable in Lagos Nigeria, C.DIVINE provides a suitable product option for appropriately designed electrical projects.

35mm² 4 Core Copper Armoured Cable

The 35mm² X 4 Core designation means the cable contains four individual conductors, with each conductor having a nominal cross-sectional area of 35mm².

Copper is widely used for power-cable conductors because of its high electrical conductivity and established performance in power-distribution systems.

A four-core cable can be used in suitable multi-conductor power systems, including appropriately designed three-phase distribution applications.

However, 35mm² does not by itself determine the allowable current. Cable ampacity depends on installation conditions, ambient temperature, grouping, cable length, voltage drop, protective devices, and other engineering parameters.

A comparable 4 × 35mm² copper XLPE/SWA/PVC cable lists its conductor as stranded copper and its standard as IEC 60502-1.

600/1000V XLPE Power Cable

The C.DIVINE cable is specified for 600/1000V, also commonly expressed as 0.6/1kV, low-voltage power systems.

The XLPE insulation surrounds the copper conductors and provides electrical insulation between the conductors and the other cable components.

XLPE means Cross-Linked Polyethylene. It is widely used in power cables because of its electrical insulation and thermal characteristics.

IEC 60502-1 covers power cables with extruded insulation for rated voltages including 1kV systems and addresses cable construction, dimensions, and testing for fixed installations.

For XLPE-insulated conductors in the 25mm² and 35mm² range, IEC 60502-1 specifies nominal insulation thickness requirements for 0.6/1kV cable designs.

PVC/SWA/XLPE Cable Construction

The PVC/SWA/XLPE terminology describes the principal materials used in the cable.

The construction can generally be understood as:

Copper Conductor → XLPE Insulation → PVC Bedding → Steel Wire Armour → PVC Outer Sheath

Copper Conductor

The copper conductor carries the electrical current.

XLPE Insulation

XLPE surrounds each conductor and provides electrical insulation.

PVC Bedding

PVC bedding or inner sheath forms a protective layer around the laid-up cores before the armour.

Steel Wire Armour

The SWA layer provides additional mechanical protection.

PVC Outer Sheath

The outer PVC sheath provides the external protective covering.

A comparable IEC 60502-1 cable construction uses copper conductors, XLPE insulation, extruded PVC bedding, galvanized steel-wire armour, and PVC outer sheath.

Steel Wire Armour – SWA Protection

One of the major characteristics of this cable is the Steel Wire Armour.

SWA provides mechanical reinforcement around the cable assembly and helps protect the insulated conductors from external mechanical stresses.

This makes armoured cable particularly useful for fixed installations where additional mechanical protection is required.

Potential applications include:

• Industrial power distribution
• Commercial buildings
• Factories
• Warehouses
• Construction projects
• Generator installations
• Residential estates
• Outdoor power distribution
• Cable trenches
• Suitable underground installations
• Workshops
• Industrial machinery
• Distribution systems

A comparable 4 × 35mm² copper SWA cable is described as having a single layer of round galvanized steel wires to provide mechanical protection against external pressures.

PVC Outer Sheath

The PVC outer sheath forms the external protective layer of the cable.

PVC provides a durable covering around the armoured construction and helps protect the internal components during handling, installation, and normal service conditions.

The complete multi-layer construction provides a combination of:

Electrical insulation + mechanical protection + external protection.

This makes the cable suitable for many fixed electrical power-distribution applications when correctly specified.

35mm² X 4 Core Armoured Cable Applications

Industrial Power Distribution

The cable can be considered for appropriately designed industrial electrical systems in factories, manufacturing facilities, workshops, warehouses, and production environments.

Commercial Buildings

Commercial properties such as offices, hotels, restaurants, shopping facilities, and business premises may require multi-core armoured power cables for selected distribution circuits.

Generator Power Distribution

The cable may be used in suitable generator distribution systems when the generator output, load current, cable length, voltage drop, installation method, and protection requirements have been properly calculated.

Construction Projects

Electrical contractors can use appropriately specified SWA cables in permanent electrical infrastructure for construction and building projects.

Residential Estates

Large residential developments, estates, apartment buildings, and associated infrastructure may require armoured power cables for suitable distribution systems.

Outdoor Electrical Installations

The armoured construction can be advantageous in suitable outdoor fixed installations where additional mechanical protection is required.

Industrial Machinery

The cable may be considered for selected fixed power connections to machinery and industrial equipment where its electrical characteristics match the equipment requirements.

PVC/SWA/XLPE Armoured Cable Sizes

C.DIVINE PVC/SWA/XLPE armoured cables can be supplied in different four-core conductor sizes for various electrical applications.

Armoured Cable Size	Core Configuration	Voltage Rating	Conductor	Construction
4mm² X 4 Core	4 Core	600/1000V	Copper	XLPE/PVC/SWA/PVC
6mm² X 4 Core	4 Core	600/1000V	Copper	XLPE/PVC/SWA/PVC
25mm² X 4 Core	4 Core	600/1000V	Copper	XLPE/PVC/SWA/PVC
35mm² X 4 Core	4 Core	600/1000V	Copper	XLPE/PVC/SWA/PVC
70mm² X 4 Core	4 Core	600/1000V	Copper	XLPE/PVC/SWA/PVC
95mm² X 4 Core	4 Core	600/1000V	Copper	XLPE/PVC/SWA/PVC
120mm² X 4 Core	4 Core	600/1000V	Copper	XLPE/PVC/SWA/PVC

Important: Cable current capacity should be taken from the applicable manufacturer’s technical data and installation calculations rather than estimated from conductor size alone.

Why Choose 35mm² X 4 Core C.DIVINE Armoured Cable?

1. 35mm² Copper Conductors

The cable provides four 35mm² copper conductors for appropriately designed power-distribution applications.

2. Four-Core Configuration

The four-core design provides four insulated conductors within one cable assembly.

3. XLPE Insulation

XLPE insulation provides electrical separation around each conductor and is widely used in low-voltage power cables.

4. Steel Wire Armour

SWA provides additional mechanical protection for fixed installations.

5. PVC Bedding

PVC bedding provides an additional layer between the laid-up insulated cores and the armour.

6. PVC Outer Sheath

The PVC outer sheath protects the cable externally.

7. 600/1000V Rating

The cable is designed for suitable low-voltage power systems within its specified voltage rating.

35mm² 4 Core SWA Cable for Nigerian Projects

Nigeria’s electrical infrastructure, construction, manufacturing, commercial, residential, and industrial sectors require cables in different conductor sizes.

The 35mm² X 4 Core Armoured Cable can be considered for applications where engineering calculations determine that this conductor size and cable construction are appropriate.

Customers in Lagos, Abuja, Port Harcourt, Kano, Ibadan, Benin City, Enugu, Kaduna, and other Nigerian cities can select different armoured cable sizes depending on the electrical requirements of their project.

For customers specifically searching for 35mm² 4 Core SWA Armoured Cable in Lagos Nigeria, the C.DIVINE cable is positioned as a professional electrical-material option.

Where to Buy 35mm² 4 Core Armoured Cable in Lagos

If you are searching Google for:

• 35mm² 4 Core Armoured Cable Lagos
• 35mm² SWA Cable Nigeria
• 35mm² XLPE Copper Cable
• 35mm² Copper Armoured Cable
• 600/1000V Armoured Cable
• 35mm² PVC SWA Cable
• 4 Core Armoured Power Cable
• SWA Cable Supplier Lagos
• Original Armoured Cable Nigeria
• Electrical Cable Lagos Nigeria
• C.DIVINE Armoured Cable

it is important to verify the complete cable specification before purchasing.

When buying 35mm² armoured cable, confirm:

• Conductor material
• Conductor size
• Number of cores
• Voltage rating
• Insulation type
• Armour type
• Outer sheath
• Applicable standard
• Manufacturer documentation
• Cable length
• Installation requirements

35mm² SWA Cable for Generator Installations

Generators are widely used throughout Nigeria for residential, commercial, industrial, construction, and institutional power applications.

A 35mm² four-core armoured cable may be suitable for certain generator distribution systems, but the cable must be correctly sized according to the generator’s electrical output.

Important factors include:

Generator Capacity

The generator’s kVA/kW rating and operating voltage determine the electrical current requirements.

Cable Length

Longer cable runs can increase voltage drop and may require engineering consideration.

Installation Method

The cable’s current-carrying capacity depends on whether it is installed underground, in ducts, on trays, in free air, or using another method.

Ambient Temperature

Temperature affects cable performance and may require derating.

Protective Devices

The breaker or protection system should be properly coordinated with the cable and load.

Earthing

The electrical system and cable armour must be incorporated into the appropriate earthing arrangement.

35mm² Armoured Cable for Industrial Electrical Systems

Industrial installations often require robust power cables capable of operating within demanding fixed-installation environments.

The SWA construction provides additional mechanical protection, while XLPE insulation is commonly used for power-cable applications requiring higher conductor operating temperatures.

Comparable IEC 60502-1 4-core 35mm² XLPE/SWA/PVC copper cables specify a 90°C maximum conductor operating temperature and 250°C maximum short-circuit conductor temperature under their stated design conditions.

These figures should not automatically be applied to every C.DIVINE cable unless confirmed by its specific manufacturer technical datasheet.

Professional Installation of 35mm² Armoured Cable

The cable should be installed by a qualified electrician or competent electrical professional.

Proper installation should consider:

Cable Glands

Use appropriate SWA glands compatible with the cable’s construction and dimensions.

Cable Lugs

Select lugs appropriate for the 35mm² copper conductors and the equipment terminals.

Armour Earthing

The armour should be incorporated into the appropriate earthing and bonding arrangement.

Cable Support

Ensure the cable is properly supported and protected from excessive mechanical stress.

Cable Bending Radius

Do not exceed the manufacturer’s minimum bending radius.

Circuit Protection

Protective devices must be appropriately coordinated with the cable’s characteristics and the connected load.

Testing and Commissioning

The completed installation should be inspected and electrically tested before being energized.

35mm² vs 25mm² 4 Core Armoured Cable

The 35mm² conductor is larger than 25mm², but the larger conductor should not automatically be considered the better choice.

The correct cable depends on the electrical design.

A 35mm² cable may be selected where the calculated requirements demand a larger conductor because of:

• Higher design current
• Longer cable run
• Voltage-drop requirements
• Installation conditions
• Ambient temperature
• Cable grouping
• Fault-current requirements

However, these factors must be calculated for the actual project.

35mm² vs 70mm² 4 Core Armoured Cable

Similarly, 70mm² is a larger conductor size than 35mm².

The choice between the two should be based on engineering calculations rather than simply choosing the larger cable.

For larger commercial and industrial loads, 70mm² may be required where the design current, voltage drop, installation method, or other conditions demand it.

Benefits of XLPE/SWA/PVC Cable

Strong Mechanical Construction

The steel wire armour provides additional mechanical protection.

High-Quality Electrical Insulation

XLPE provides reliable electrical insulation when operated within its specified parameters.

Copper Conductors

Copper provides high electrical conductivity.

Multi-Core Configuration

Four cores simplify suitable multi-conductor power-distribution installations.

PVC Protection

PVC bedding and outer sheath provide additional physical protection.

Suitable for Fixed Power Distribution

The construction is widely used for fixed low-voltage power applications.

Frequently Asked Questions

What is 35mm² X 4 Core armoured cable?

It is a four-core armoured power cable containing four 35mm² conductors. This C.DIVINE product is specified with copper conductors, XLPE insulation, SWA armour, and PVC outer protection.

What voltage is this cable rated for?

The product is specified for 600/1000V, also expressed as 0.6/1kV.

Is the conductor copper?

Yes. This product is specified as a copper conductor armoured cable.

What does SWA mean?

SWA means Steel Wire Armour, the steel-wire layer surrounding the cable’s insulated cores.

What does XLPE mean?

XLPE means Cross-Linked Polyethylene, an insulation material commonly used in modern power cables.

What does PVC/SWA/XLPE mean?

It describes the principal cable materials: XLPE insulation, PVC bedding/sheathing, and Steel Wire Armour around the conductor assembly.

Can 35mm² 4 Core SWA cable be used outdoors?

It can be suitable for appropriate outdoor fixed installations when the cable’s environmental rating and installation requirements are satisfied.

Can 35mm² SWA cable be buried underground?

SWA cables are commonly used for suitable underground installations. However, burial depth, soil conditions, mechanical protection, cable rating, drainage, installation method, and applicable standards must be considered.

Can it be used for a generator?

It may be suitable for generator distribution where the cable’s current capacity, voltage rating, length, voltage drop, installation method, and protective system meet the generator and load requirements.

Is 35mm² suitable for every industrial load?

No. Cable size must be selected according to the actual electrical design.

Where can I buy 35mm² 4 Core SWA cable in Lagos?

Customers searching for 35mm² X 4 Core Armoured Cable in Lagos Nigeria can contact a C.DIVINE electrical cable supplier to confirm product availability, technical specification, pricing, cable length, and delivery options.

Order 35mm² X 4 Core Armoured Cable – C.DIVINE

The 35mm² X 4 Core Armoured Cable 600/1000V PVC/SWA/XLPE Power Cable – C.DIVINE CABLE is a robust four-core power cable designed for suitable electrical installations requiring copper conductors, XLPE insulation, steel wire armour, and PVC protection.

Its 35mm² four-core copper construction, combined with XLPE insulation, SWA mechanical protection, PVC bedding, and PVC outer sheath, makes it a suitable option for appropriately designed industrial, commercial, construction, generator, residential estate, outdoor, and power-distribution applications.

If you are searching online for 35mm² 4 Core Armoured Cable in Lagos, 35mm² SWA Cable Nigeria, 35mm² XLPE Copper Cable, 600/1000V Armoured Power Cable, or original electrical cables and electrical materials in Nigeria, C.DIVINE is a product option to consider.

Before purchasing, confirm the manufacturer’s technical data, applicable standard, cable construction, conductor material, cable length, and certification or test documentation for the specific product batch.

Cable sizing, installation, termination, earthing, protection, and testing should be performed by a qualified electrical professional according to the project’s requirements and applicable electrical standards.
