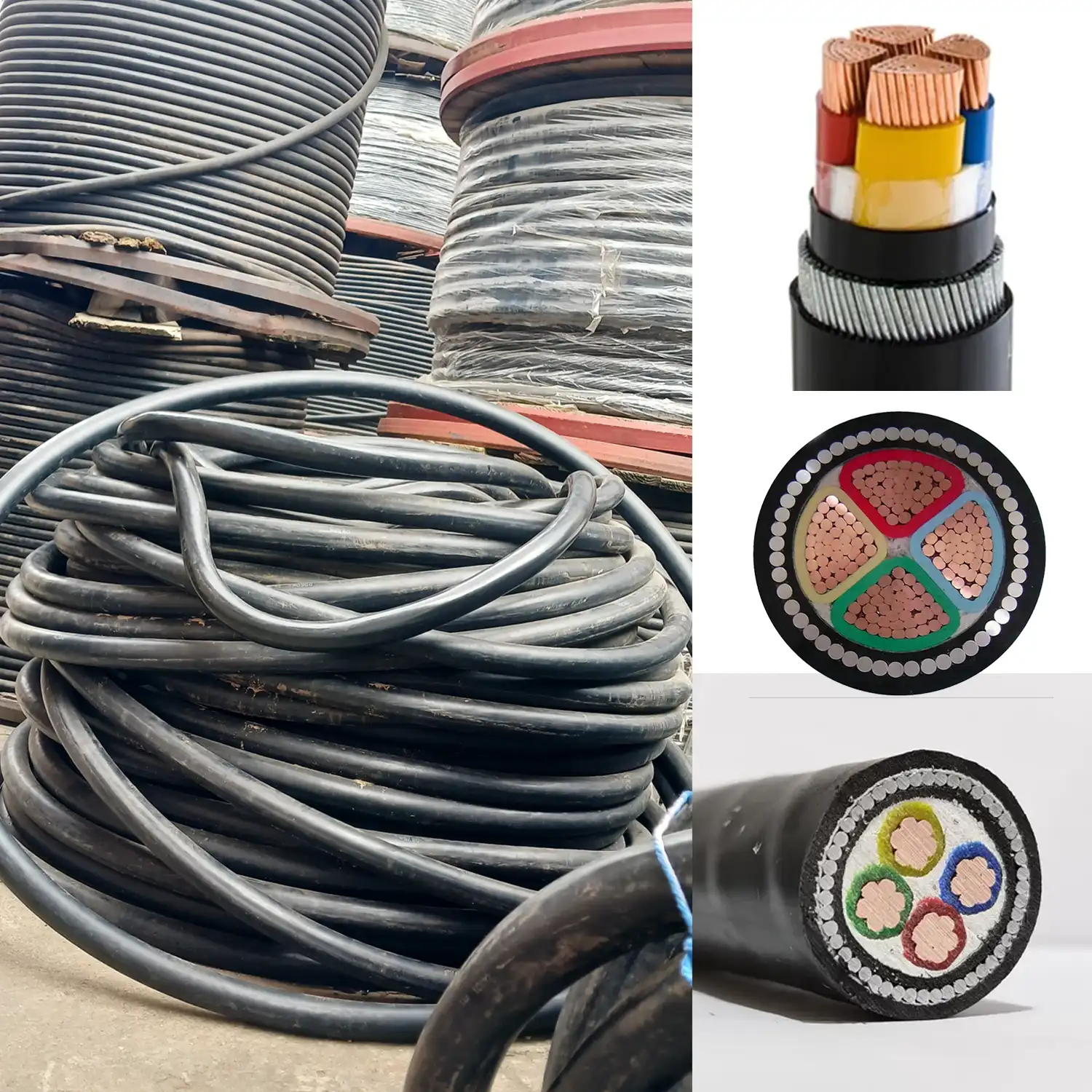

70mm² X 4Core Armoured Cable – C.Divine

The C.Divine 70mm² X 4Core Armoured Cable TRS XLPE SWA PVC CU Power Cable is designed for electrical installations requiring a larger copper conductor and additional mechanical protection.

The cable specification can be summarized as:

• Conductor size: 70mm²
• Number of cores: 4 Core
• Conductor material: Copper (CU)
• Insulation: XLPE
• Armour: Steel Wire Armour (SWA)
• Outer sheath: PVC
• Voltage: 600/1000V
• Cable type: Armoured power cable
• Application: Fixed electrical power distribution

The 70mm² X 4Core designation means that the cable contains four individual conductors, with each conductor having a nominal cross-sectional area of 70mm².

This larger conductor size makes it appropriate for electrical systems where calculations require a larger conductor than smaller 25mm², 35mm² or 50mm² 4-core cables.

However, the correct cable size must always be determined from the actual electrical design rather than conductor size alone.

70mm² 4 Core Copper Armoured Cable

The C.Divine cable uses copper (CU) conductors.

Copper is extensively used for electrical power cables because of its high electrical conductivity and established performance in power-distribution applications.

The four-core configuration provides four individually insulated conductors within one armoured cable assembly.

Potential applications include:

• Three-phase power distribution
• Commercial power systems
• Industrial electrical installations
• Generator distribution
• Building power distribution
• Factory installations
• Warehouse power systems
• Construction projects
• Residential estates
• Electrical infrastructure
• Suitable outdoor fixed installations

The actual application must be verified by an electrical professional based on the cable’s complete technical characteristics.

600/1000V XLPE Power Cable

The cable is specified as a 600/1000V power cable, commonly written as 0.6/1kV.

The insulation material is XLPE — Cross-Linked Polyethylene.

XLPE is widely used as insulation for low-voltage power cables because it provides electrical insulation and suitable thermal characteristics for power-distribution applications.

IEC 60502-1 covers power cables with extruded insulation for rated voltages up to and including 1kV for fixed installations, including distribution networks and industrial installations.

For this reason, customers searching for:

70mm² 600/1000V XLPE Cable

70mm² 4 Core XLPE Cable

70mm² Copper Armoured Cable

70mm² SWA Power Cable

are generally looking for this category of low-voltage armoured power cable.

The exact C.Divine product conformity and temperature ratings should be verified from the applicable manufacturer datasheet or certificate supplied with the cable.

XLPE/SWA/PVC Cable Construction

The principal construction of this type of cable can be represented as:

Copper Conductor → XLPE Insulation → Inner Bedding/Filler → Steel Wire Armour → PVC Outer Sheath

1. Copper Conductor

The copper conductor carries electrical current through the cable.

2. XLPE Insulation

XLPE surrounds each copper conductor and provides electrical insulation.

3. Bedding/Filler

An appropriate bedding or filler layer may be used around the laid-up cores before the armour.

4. Steel Wire Armour

The SWA layer provides additional mechanical protection.

5. PVC Outer Sheath

The PVC sheath forms the external protective covering.

This multi-layer construction makes armoured cable suitable for many fixed power-distribution installations where additional mechanical protection is required.

What Does SWA Mean?

SWA stands for Steel Wire Armour.

The steel-wire armour surrounds the insulated cores and provides additional mechanical protection.

This is particularly useful in electrical installations where the cable could experience mechanical impact, pressure, pulling forces, or other physical stresses.

SWA armoured cables are commonly considered for:

• Industrial installations
• Construction projects
• Cable trenches
• Underground installations
• Outdoor fixed installations
• Generator systems
• Commercial buildings
• Factories
• Warehouses
• Power-distribution networks

The specific installation must meet the cable manufacturer’s requirements and applicable electrical standards.

PVC Outer Sheath

The outer PVC sheath provides an external protective layer around the armoured cable construction.

It helps protect the cable’s internal components during transportation, handling, installation, and normal service conditions for which the cable is designed.

The combination of XLPE insulation + SWA armour + PVC sheath provides both electrical insulation and mechanical protection.

Applications of 70mm² X 4Core SWA Cable

Industrial Power Distribution

The 70mm² 4Core armoured cable can be considered for appropriately designed industrial power-distribution systems.

Potential locations include:

• Manufacturing plants
• Factories
• Industrial workshops
• Production facilities
• Warehouses
• Processing plants

Generator Power Distribution

The cable may be suitable for selected generator installations where engineering calculations confirm that the cable can accommodate the generator’s output and connected load.

Commercial Buildings

Commercial buildings can require larger armoured cables for selected electrical distribution systems.

Potential applications include:

• Hotels
• Shopping facilities
• Offices
• Restaurants
• Commercial complexes
• Business premises

Construction Projects

The robust construction of SWA cable makes it suitable for consideration in permanent electrical infrastructure for appropriately designed construction projects.

Residential Estates

Large residential developments and estates may require larger copper armoured cables for electrical distribution between suitable electrical equipment and distribution points.

Industrial Machinery

The cable may be considered for fixed power connections to appropriately rated industrial equipment and machinery.

Outdoor Power Distribution

The armoured construction can provide additional mechanical protection for suitable outdoor fixed electrical installations.

C.Divine 4 Core Armoured Cable Sizes

For customers looking for different cable sizes, the C.Divine 4-core armoured cable range can include the following sizes:

Note: This is a product-size comparison table, not an ampacity chart. Actual current-carrying capacity must be obtained from the applicable C.Divine technical datasheet and calculated according to the installation conditions.

Why Choose 70mm² X 4Core C.Divine Armoured Cable?

1. Large 70mm² Copper Conductors

The 70mm² conductor size is suitable for electrical designs requiring a larger conductor cross-sectional area.

2. Four-Core Construction

Four individual insulated conductors provide a practical configuration for suitable multi-conductor power systems.

3. XLPE Insulation

XLPE provides electrical insulation around the copper conductors.

4. Steel Wire Armour

SWA provides additional mechanical protection.

5. PVC Outer Sheath

PVC provides external protection around the armoured assembly.

6. 600/1000V Rating

The stated voltage rating makes the cable suitable for compatible low-voltage power systems within its specified operating limits.

7. Suitable for Large Electrical Projects

The cable can be considered for appropriately designed industrial, commercial, construction, generator, estate, and infrastructure projects.

70mm² SWA Cable for Generator Installation in Nigeria

Generators are widely used in Nigeria for:

• Homes
• Offices
• Hotels
• Factories
• Construction sites
• Shops
• Warehouses
• Hospitals
• Commercial facilities
• Industrial plants

A 70mm² X 4Core armoured cable may be used for suitable generator power-distribution applications.

However, selecting cable size based only on generator kVA is not sufficient.

The electrical designer should consider:

• Generator rated current
• Generator voltage
• Phase configuration
• Connected load
• Cable length
• Voltage drop
• Installation method
• Ambient temperature
• Cable grouping
• Protective devices
• Short-circuit withstand
• Earthing arrangement

For long cable runs, voltage drop can become an important factor even when the conductor’s current capacity appears adequate.

70mm² 4Core Armoured Cable for Industrial Use

Industrial electrical systems frequently require cables that combine electrical performance with mechanical protection.

The C.Divine 70mm² X 4Core XLPE/SWA/PVC cable is intended for consideration in suitable fixed electrical installations where the cable’s technical characteristics meet the design requirements.

Potential industrial applications include:

• Main distribution systems
• Factory electrical distribution
• Manufacturing facilities
• Industrial workshops
• Heavy electrical equipment
• Pumping systems
• Distribution boards
• Transformer connections
• Generator distribution
• Industrial buildings

The final cable selection should be based on professional electrical calculations.

70mm² Armoured Cable for Commercial Buildings

Large commercial buildings can have substantial electrical loads.

Examples include:

• Hotels
• Shopping centres
• Office buildings
• Supermarkets
• Restaurants
• Event centres
• Commercial warehouses
• Business complexes

A 70mm² four-core cable can be considered for suitable distribution circuits where the design calculations support its use.

The cable should be selected based on load demand, voltage drop, installation method, protection, and other relevant design criteria.

70mm² X 4Core SWA Cable for Construction

Construction projects often require temporary and permanent electrical infrastructure.

The cable can be considered for permanent fixed installations such as:

• Main distribution
• Sub-distribution
• Building electrical systems
• Estate infrastructure
• Commercial buildings
• Industrial facilities

Proper cable support, routing, termination, protection, and earthing are essential during installation.

Where to Buy 70mm² X 4Core Armoured Cable in Lagos Nigeria

If you are searching Google for:

• 70mm² X 4Core Armoured Cable Lagos
• 70mm² 4 Core SWA Cable Nigeria
• 70mm² XLPE Copper Cable
• 70mm² Copper Armoured Cable
• 70mm² PVC SWA Cable
• 600/1000V Armoured Cable Lagos
• 70mm² Power Cable Nigeria
• 4 Core Armoured Cable Supplier Lagos
• Original SWA Cable Nigeria
• Industrial Electrical Cable Lagos
• C.Divine Armoured Cable

it is important to verify the cable’s exact technical specification before purchasing.

For large electrical projects, buyers should confirm:

• Conductor material
• Conductor cross-sectional area
• Number of cores
• Voltage rating
• XLPE insulation
• SWA construction
• PVC sheath
• Cable diameter
• Cable weight
• Cable length
• Applicable standard
• Manufacturer documentation
• Test certificate where applicable

70mm² vs 50mm² 4Core Armoured Cable

A 70mm² conductor has a larger cross-sectional area than a 50mm² conductor.

This does not automatically mean that 70mm² is the correct choice.

The appropriate conductor size should be determined by:

• Design current
• Voltage drop
• Cable length
• Installation method
• Ambient temperature
• Grouping
• Fault-current requirements
• Protective-device coordination

A 70mm² cable may be selected where the electrical design requires a larger conductor.

70mm² vs 95mm² 4Core Armoured Cable

Similarly, 95mm² is larger than 70mm².

The choice between these sizes should be determined by the actual electrical load and installation requirements.

A larger cable can provide a lower conductor resistance and potentially lower voltage drop, but the complete electrical design must determine whether the additional conductor size is necessary.

Professional Installation of 70mm² SWA Cable

A 70mm² armoured cable should be installed by a qualified electrician or competent electrical professional.

Cable Glands

Use appropriately sized SWA glands compatible with the cable’s construction and outside diameter.

Cable Lugs

Use suitable lugs designed for the 70mm² copper conductors and connected equipment.

Armour Earthing

The steel armour should be incorporated into the appropriate earthing and bonding arrangement.

Cable Bending Radius

Follow the manufacturer’s specified minimum bending radius during installation.

Cable Support

Provide appropriate cable supports to prevent excessive mechanical stress.

Circuit Protection

The protective device should be correctly coordinated with the cable and connected load.

Testing

The completed installation should be inspected and electrically tested before energization.

Important Cable Selection Considerations

Choosing a 70mm² armoured cable should involve more than simply matching the conductor size to an appliance or generator.

Current-Carrying Capacity

Determine the design current and compare it with the cable’s applicable ampacity under the actual installation conditions.

Voltage Drop

For long cable runs, voltage drop should be calculated to ensure satisfactory equipment performance.

Short-Circuit Rating

The cable should have an appropriate short-circuit withstand capability for the electrical system.

Installation Method

Whether the cable is installed underground, in ducts, on trays, or in another configuration affects its rating.

Ambient Temperature

Temperature can influence the cable’s permissible operating current.

Cable Grouping

Multiple cables installed together may require derating.

Protection

Circuit breakers, fuses, and other protection must be coordinated with the cable.

Frequently Asked Questions

What is 70mm² X 4Core armoured cable?

It is a four-core armoured power cable with a nominal 70mm² conductor cross-sectional area per core. This C.Divine cable is specified with copper conductors, XLPE insulation, SWA armour, and PVC outer protection.

What does 70mm² mean?

70mm² refers to the nominal cross-sectional area of each conductor.

What does 4Core mean?

4Core means the cable contains four individual insulated conductors.

What does CU mean?

CU is the chemical/electrical abbreviation commonly used to identify copper.

What does SWA mean?

SWA means Steel Wire Armour, the steel-wire protective layer around the insulated cable assembly.

What does XLPE mean?

XLPE stands for Cross-Linked Polyethylene, a commonly used power-cable insulation material.

What does PVC mean?

PVC stands for Polyvinyl Chloride, commonly used for cable bedding and/or outer sheath protection.

What voltage is the cable rated for?

The product is specified as 600/1000V.

Can 70mm² SWA cable be used underground?

SWA cables can be suitable for appropriate underground fixed installations, provided the cable’s construction and environmental rating are suitable and the installation meets applicable requirements.

Can 70mm² 4Core cable be used for generators?

It may be suitable for generator distribution where the generator output, design current, cable length, voltage drop, installation method, protection, and earthing requirements have been properly assessed.

Is 70mm² suitable for industrial applications?

It can be suitable for industrial applications where professional electrical calculations confirm that the cable meets the required electrical and installation parameters.

Is 70mm² better than 50mm²?

Not necessarily. The correct cable depends on the electrical design. A larger conductor should be selected only where the project’s requirements justify it.

Where can I buy 70mm² 4Core SWA Cable in Nigeria?

Customers searching for 70mm² X 4Core Armoured Cable in Lagos Nigeria can contact C.Divine electrical cable suppliers to confirm availability, specifications, pricing, cable length, and delivery options.

Order 70mm² X 4Core Armoured Cable – C.Divine

The 70mm² X 4Core Armoured Cable TRS XLPE SWA PVC CU Power Cable – C.Divine is a heavy-duty four-core copper power cable designed for suitable fixed low-voltage electrical installations.

Its combination of 70mm² copper conductors, XLPE insulation, Steel Wire Armour, and PVC outer sheath provides a robust cable construction for appropriately engineered industrial, commercial, construction, generator, residential estate, outdoor, and power-distribution applications.

For customers searching online for 70mm² 4 Core Armoured Cable, 70mm² SWA Cable Nigeria, 70mm² XLPE Copper Cable, 600/1000V Armoured Cable, 70mm² Power Cable Lagos, or original electrical cables and electrical materials in Nigeria, C.Divine is a suitable product option to consider.

Before purchasing, confirm the exact manufacturer specification, applicable standard, cable construction, conductor material, certification/test documentation, cable length, and installation requirements.

Always have cable sizing, termination, earthing, circuit protection, installation, and testing carried out by a qualified electrical professional.
