120mm² X 4Core Armoured Cable – C.DIVINE
The C.DIVINE 120mm² X 4Core PVC SWA Armoured Cable 600/1000V XLPE CU Power Cable is a large-size armoured power cable developed for electrical systems requiring substantial conductor capacity and additional mechanical protection.
The cable specification includes:
- Conductor Size: 120mm²
- Core Configuration: 4 Core
- Conductor Material: Copper (CU)
- Insulation: XLPE
- Armour: Steel Wire Armour (SWA)
- Outer Sheath: PVC
- Voltage Rating: 600/1000V
- Cable Type: Low-Voltage Armoured Power Cable
The 120mm² X 4Core designation means the cable contains four individual conductors, each with a nominal cross-sectional area of 120mm².
This makes it one of the larger sizes in a typical 4-core C.DIVINE armoured cable range and a suitable option to consider when electrical calculations require a larger conductor.
120mm² 4 Core Copper Armoured Cable
The use of copper (CU) conductors makes this cable suitable for appropriately engineered electrical power-distribution systems.
Copper is widely used for power conductors because of its high electrical conductivity and established performance in electrical installations.
The four-core configuration provides four individually insulated conductors within one cable assembly.
Potential applications include:
- Main electrical distribution
- Industrial power distribution
- Generator power connections
- Factory installations
- Commercial buildings
- Large residential estates
- Construction projects
- Warehouses
- Industrial machinery
- Infrastructure projects
- Suitable outdoor fixed installations
The final application must be confirmed through proper electrical design and cable-sizing calculations.
600/1000V XLPE Power Cable
The cable is specified as 600/1000V, commonly expressed as 0.6/1kV.
It uses XLPE (Cross-Linked Polyethylene) as conductor insulation.
XLPE is widely used for power cables because it provides electrical insulation and suitable thermal characteristics for fixed power-distribution installations.
IEC 60502-1 covers power cables with extruded insulation for rated voltages up to and including 1kV for fixed installations.
The exact rating, construction, temperature characteristics, and standard conformity of the supplied C.DIVINE cable should be verified against the manufacturer’s technical documentation.

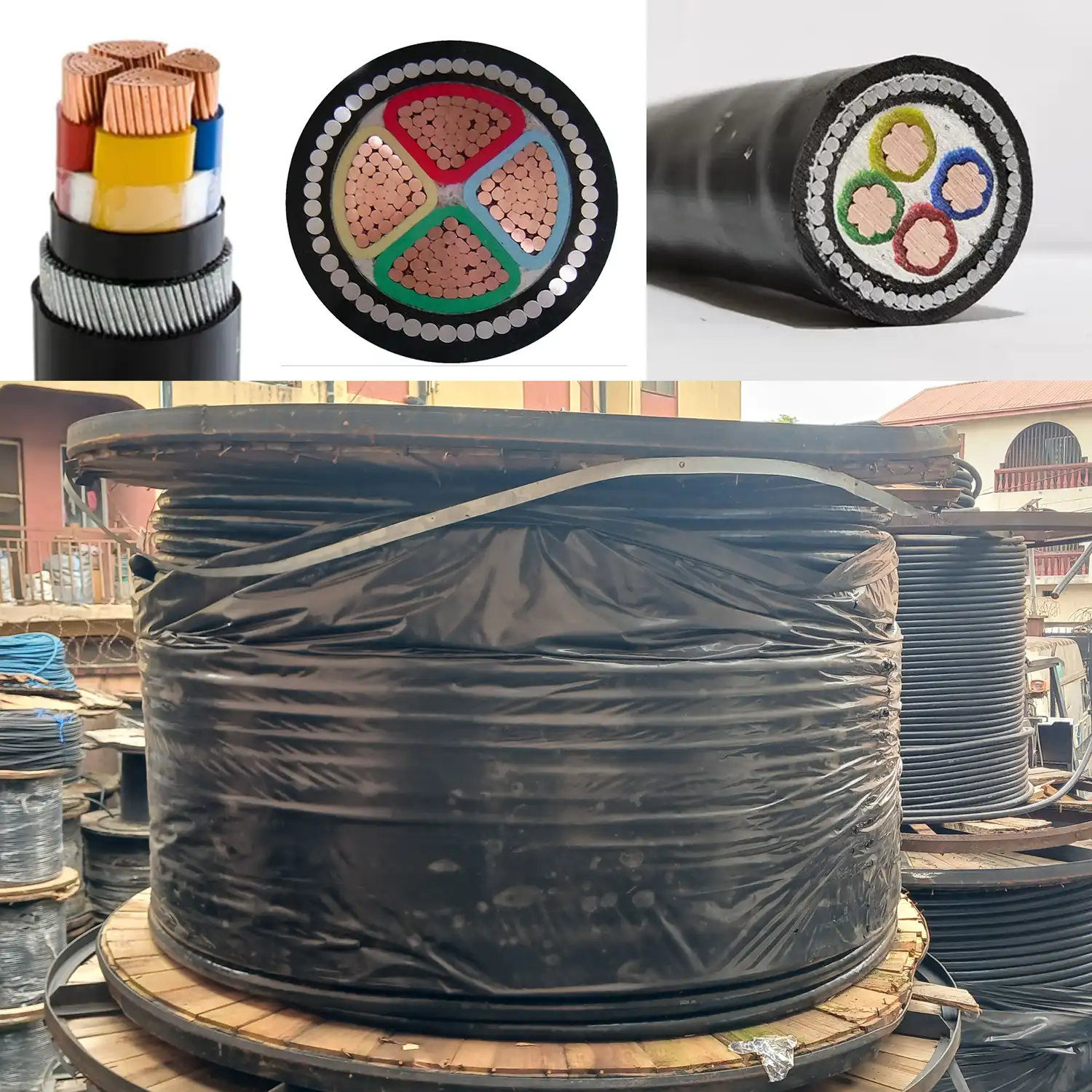

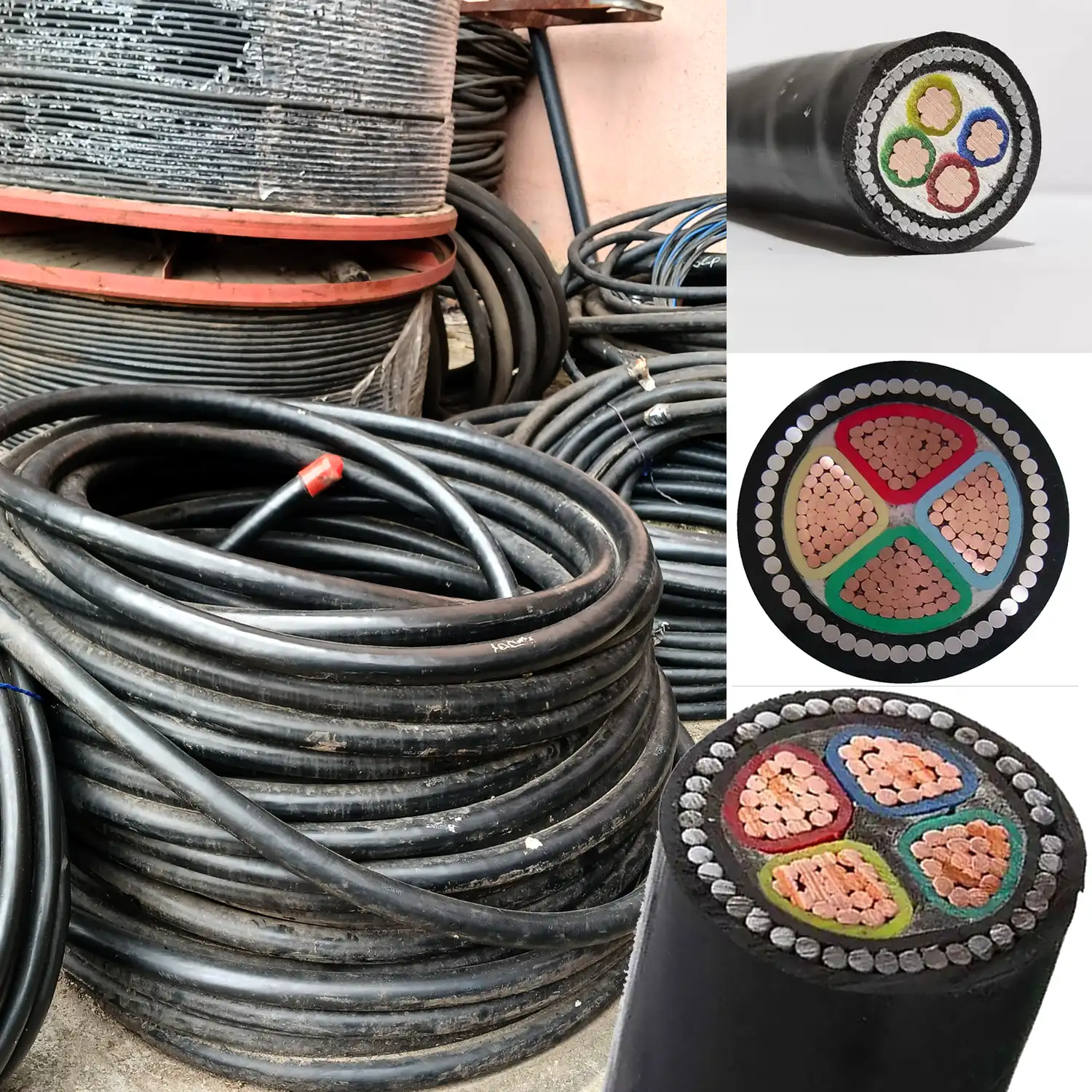

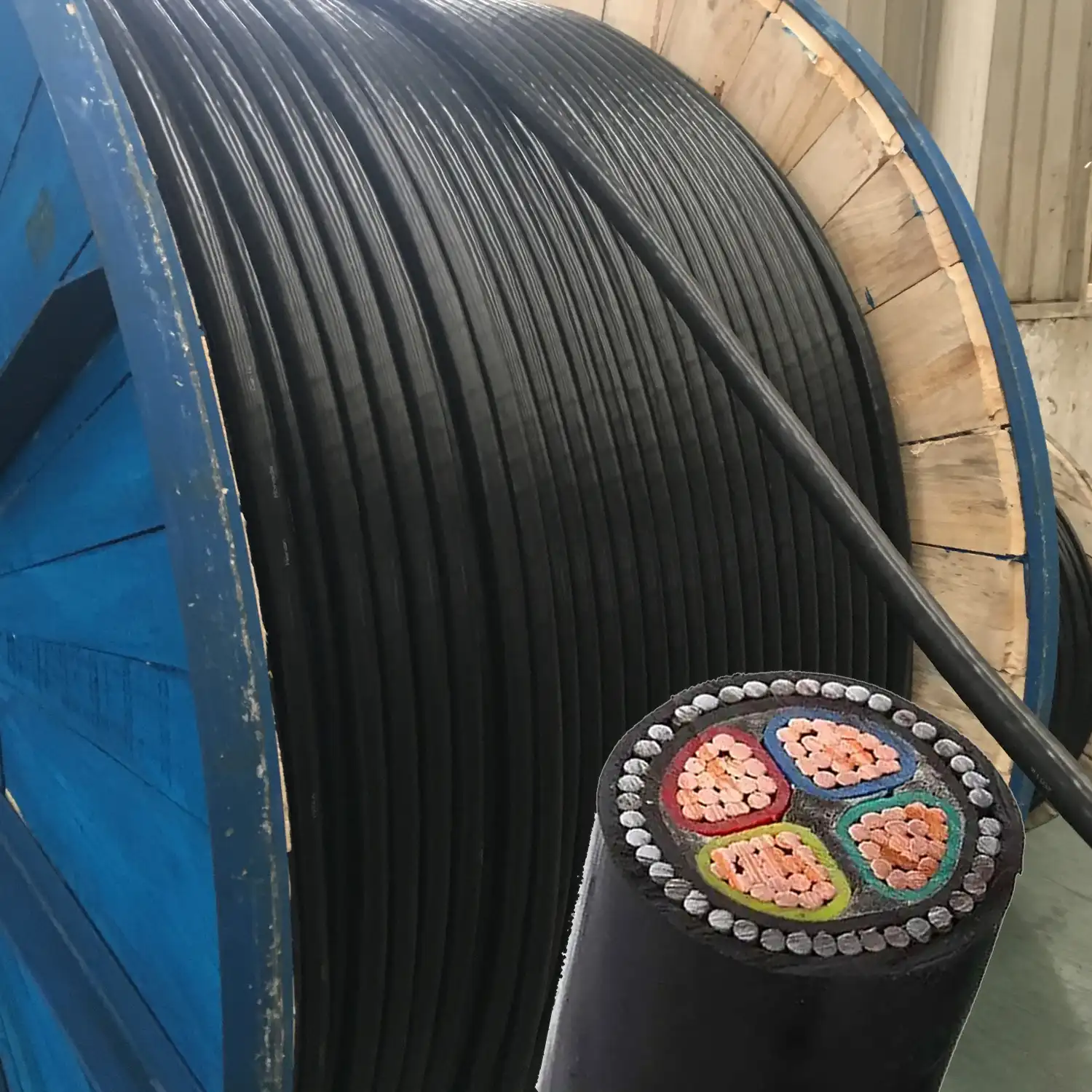

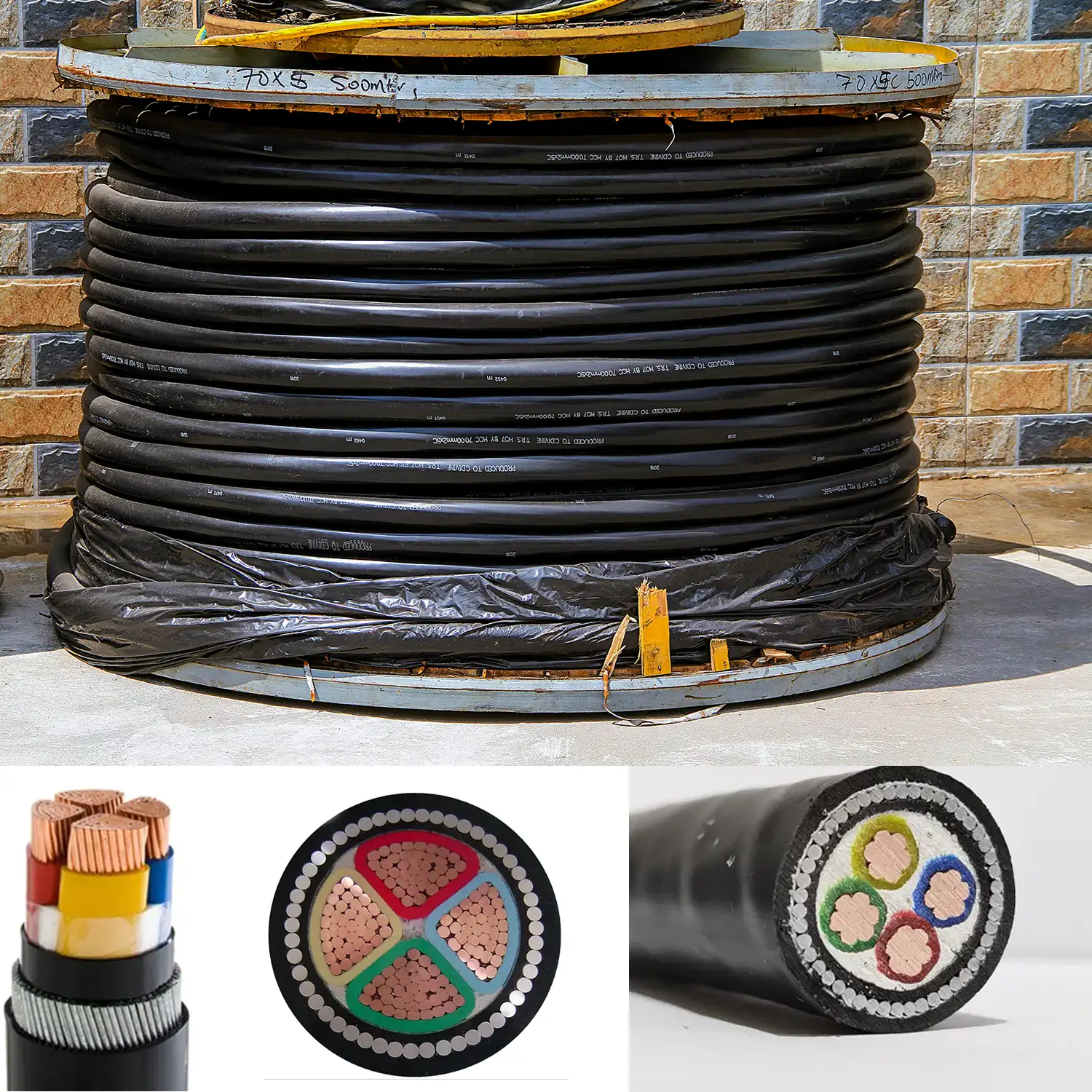

XLPE/SWA/PVC Cable Construction
The basic construction of this type of cable can be represented as:
Copper Conductor → XLPE Insulation → Bedding/Filler → Steel Wire Armour → PVC Outer Sheath
Copper Conductor
The copper conductor carries electrical current through the cable.
XLPE Insulation
XLPE provides electrical insulation around each individual conductor.
Steel Wire Armour
SWA provides an additional mechanical-protection layer around the cable assembly.
PVC Outer Sheath
The PVC sheath forms the external protective covering.
Together, these layers provide a robust construction for suitable fixed electrical power installations.
What Does SWA Mean?
SWA means Steel Wire Armour.
Steel wire armour surrounds the insulated cable assembly and provides additional mechanical protection.
This is particularly valuable in installations where the cable may be subjected to physical stresses.
SWA armoured cables are commonly considered for:
- Industrial facilities
- Factories
- Construction projects
- Generator installations
- Commercial buildings
- Warehouses
- Cable trenches
- Suitable underground installations
- Outdoor fixed installations
- Residential estates
- Infrastructure projects
The cable’s suitability depends on its exact specification and installation environment.
Dimension Characteristics
| Section | Insulation Thickness | Sheath Thickness | Overall Diameter | Cable Weight | DC. Electrical Resistance at 20°C | ||
| No.xmm2 | mm | mm | mm | Cu | Al | Cu | Al |
| kg/km | Ω/km | ||||||
| 2×4 | 0.7 | 1.8 | 16.8 | 447 | 397 | 4.61 | 7.41 |
| 2×6 | 0.7 | 1.8 | 17.8 | 520 | 444 | 3.08 | 4.61 |
| 2×10 | 0.7 | 1.8 | 21.3 | 835 | 708 | 1.83 | 3.08 |
| 2×16 | 0.7 | 1.8 | 23.3 | 1024 | 823 | 1.15 | 1.91 |
| 2×25 | 0.9 | 1.8 | 27.4 | 1512 | 1195 | 0.727 | 1.20 |
| 2×35 | 0.9 | 1.8 | 28.6 | 1740 | 1307 | 0.524 | 0.868 |
| 2×50 | 1.0 | 1.8 | 31.6 | 2136 | 1550 | 0.387 | 0.641 |
| 2×70 | 1.1 | 2.0 | 35.4 | 2735 | 1886 | 0.268 | 0.443 |
| 2×95 | 1.1 | 2.1 | 39.8 | 3697 | 2518 | 0.193 | 0.320 |
| 2×120 | 1.2 | 2.2 | 43.4 | 4396 | 2909 | 0.153 | 0.253 |
| 2×150 | 1.4 | 2.3 | 47.4 | 5208 | 3374 | 0.124 | 0.206 |
| 2×185 | 1.6 | 2.5 | 53.2 | 6747 | 4451 | 0.0991 | 0.164 |
| 2×240 | 1.7 | 2.7 | 58.6 | 8278 | 5261 | 0.0754 | 0.125 |
| 2×300 | 1.8 | 2.8 | 64.0 | 9912 | 6127 | 0.0601 | 0.100 |
| 2×400 | 2.0 | 3.1 | 71.2 | 12168 | 7328 | 0.0470 | 0.0778 |
| 2×500 | 2.2 | 3.3 | 80.1 | 15893 | 9678 | 0.0366 | 0.0605 |
| 3×4 | 0.7 | 1.8 | 17.4 | 505 | 430 | 4.61 | 7.41 |
| 3×6 | 0.7 | 1.8 | 18.5 | 598 | 485 | 3.08 | 4.61 |
| 3×10 | 0.7 | 1.8 | 22.2 | 966 | 776 | 1.83 | 3.08 |
| 3×16 | 0.7 | 1.8 | 24.3 | 1220 | 918 | 1.15 | 1.91 |
| 3×25 | 0.9 | 1.8 | 28.7 | 1803 | 1328 | 0.727 | 1.20 |
| 3×35 | 0.9 | 1.8 | 30.0 | 2133 | 1483 | 0.524 | 0.868 |
| 3×50 | 1.0 | 1.9 | 33.4 | 2658 | 1779 | 0.387 | 0.641 |
| 3×70 | 1.1 | 2.0 | 38.1 | 3716 | 2442 | 0.268 | 0.443 |
| 3×95 | 1.1 | 2.2 | 42.2 | 4692 | 2924 | 0.193 | 0.320 |
| 3×120 | 1.2 | 2.3 | 46.1 | 5649 | 3418 | 0.153 | 0.253 |
| 3×150 | 1.4 | 2.5 | 52.0 | 7239 | 4487 | 0.124 | 0.206 |
| 3×185 | 1.6 | 2.6 | 56.5 | 8634 | 5191 | 0.0991 | 0.164 |
| 3×240 | 1.7 | 2.8 | 62.7 | 10790 | 6265 | 0.0754 | 0.125 |
| 3×300 | 1.8 | 3.0 | 68.3 | 13016 | 7338 | 0.0601 | 0.100 |
| 3×400 | 2.0 | 3.2 | 75.8 | 16028 | 8768 | 0.0470 | 0.0778 |
| 3×500 | 2.2 | 3.5 | 85.4 | 20926 | 11603 | 0.0366 | 0.0605 |
| 4×4 | 0.7 | 1.8 | 18.4 | 580 | 480 | 4.61 | 7.41 |
| 4×6 | 0.7 | 1.8 | 20.5 | 839 | 688 | 3.08 | 4.61 |
| 4×10 | 0.7 | 1.8 | 23.6 | 1119 | 866 | 1.83 | 3.08 |
| 4×16 | 0.7 | 1.8 | 26.7 | 1599 | 1196 | 1.15 | 1.91 |
| 4×25 | 0.9 | 1.8 | 30.8 | 2151 | 1518 | 0.727 | 1.20 |
| 4×35 | 0.9 | 1.9 | 32.5 | 2584 | 1718 | 0.524 | 0.868 |
| 4×50 | 1.0 | 2.0 | 36.3 | 3254 | 2081 | 0.387 | 0.641 |
| 4×70 | 1.1 | 2.2 | 41.6 | 4558 | 2860 | 0.268 | 0.443 |
| 4×95 | 1.1 | 2.3 | 46.0 | 5827 | 3469 | 0.193 | 0.320 |
| 4×120 | 1.2 | 2.5 | 51.9 | 7540 | 4566 | 0.153 | 0.253 |
| 4×150 | 1.4 | 2.6 | 56.7 | 8993 | 5324 | 0.124 | 0.206 |
| 4×185 | 1.6 | 2.8 | 62.3 | 10871 | 6281 | 0.0991 | 0.164 |
| 4×240 | 1.7 | 3.0 | 68.8 | 13552 | 7519 | 0.0754 | 0.125 |
| 4×300 | 1.8 | 3.2 | 75.0 | 16379 | 8809 | 0.0601 | 0.100 |
| 4×400 | 2.0 | 3.5 | 85.3 | 21416 | 11736 | 0.0470 | 0.0778 |
| 4×500 | 2.2 | 3.8 | 94.1 | 26417 | 13986 | 0.0366 | 0.0605 |
PVC Outer Sheath
The outer PVC sheath provides an additional protective layer around the armoured cable.
PVC, or Polyvinyl Chloride, is commonly used for cable sheathing because it provides a durable external covering for many electrical applications.
The sheath helps protect the underlying cable components during:
- Transportation
- Handling
- Installation
- Cable routing
- Normal service
The resulting XLPE/SWA/PVC construction provides electrical insulation, mechanical protection, and external protection.
120mm² X 4Core Armoured Cable Applications
Industrial Power Distribution
The 120mm² 4-core cable can be considered for suitably designed industrial distribution systems.
Potential applications include:
- Factories
- Manufacturing plants
- Processing facilities
- Industrial workshops
- Warehouses
- Production plants
Generator Power Distribution
The cable may be used for suitable generator distribution systems when its current-carrying capacity, voltage drop, installation method, and protection requirements are confirmed.
Commercial Buildings
Large commercial facilities may require large copper armoured cables for selected distribution circuits.
Applications may include:
- Hotels
- Shopping centres
- Supermarkets
- Office complexes
- Event centres
- Restaurants
- Commercial warehouses
Residential Estates
Large estates and multi-building developments may require larger armoured power cables for suitable electrical distribution systems.
Construction Projects
The cable can be considered for permanent power-distribution infrastructure in appropriately designed construction projects.
Industrial Machinery
The cable may be suitable for fixed connections to appropriately rated machinery and electrical equipment.
C.DIVINE 4 Core Armoured Cable Size Chart
Customers looking for different C.DIVINE 4-core armoured cable sizes can compare the requested range below:
| Cable Size | Core Configuration | Voltage | Conductor | Insulation | Armour | Sheath |
|---|---|---|---|---|---|---|
| 4mm² X 4Core | 4 Core | 600/1000V | Copper | XLPE | SWA | PVC |
| 6mm² X 4Core | 4 Core | 600/1000V | Copper | XLPE | SWA | PVC |
| 25mm² X 4Core | 4 Core | 600/1000V | Copper | XLPE | SWA | PVC |
| 35mm² X 4Core | 4 Core | 600/1000V | Copper | XLPE | SWA | PVC |
| 50mm² X 4Core | 4 Core | 600/1000V | Copper | XLPE | SWA | PVC |
| 70mm² X 4Core | 4 Core | 600/1000V | Copper | XLPE | SWA | PVC |
| 95mm² X 4Core | 4 Core | 600/1000V | Copper | XLPE | SWA | PVC |
| 120mm² X 4Core | 4 Core | 600/1000V | Copper | XLPE | SWA | PVC |
Important: This is a size-reference table, not a cable ampacity table. Actual current-carrying capacity depends on the manufacturer’s data and installation conditions.
Why Choose 120mm² X 4Core C.DIVINE Armoured Cable?
1. Large 120mm² Copper Conductors
The 120mm² conductor provides a large cross-sectional area for applications requiring substantial power-distribution conductors.
2. Four-Core Construction
Four individually insulated conductors provide a convenient configuration for suitable multi-conductor power systems.
3. XLPE Insulation
XLPE provides electrical insulation around each copper conductor.
4. Steel Wire Armour
The SWA layer provides additional mechanical protection.
5. PVC Outer Sheath
PVC provides external protection for the cable assembly.
6. 600/1000V Specification
The stated voltage rating makes the cable suitable for compatible low-voltage systems within its specified operating limits.
7. Suitable for Large Electrical Projects
The cable can be considered for industrial, commercial, construction, generator, estate, and infrastructure projects where engineering calculations support its use.
120mm² SWA Cable for Generator Installation in Nigeria
Generators are widely used across Nigeria for residential, commercial, industrial, construction, hospitality, and infrastructure applications.
A 120mm² X 4Core armoured cable may be suitable for selected generator power-distribution systems.
However, the correct cable should be determined using engineering calculations.
Important factors include:
- Generator kVA/kW rating
- Operating voltage
- Full-load current
- Connected load
- Cable length
- Voltage drop
- Installation method
- Ambient temperature
- Cable grouping
- Protective-device rating
- Short-circuit requirements
- Earthing arrangement
For a long generator cable run, voltage drop should be checked carefully.
120mm² 4Core Armoured Cable for Industrial Applications
Industrial facilities can require substantial power distribution between:
- Transformers
- Generators
- Main distribution boards
- Sub-distribution boards
- Industrial machinery
- Pumps
- Production equipment
The C.DIVINE 120mm² X 4Core XLPE/SWA/PVC copper cable can be considered for appropriately engineered fixed electrical installations.
Potential applications include:
- Factory power distribution
- Manufacturing plants
- Industrial warehouses
- Processing facilities
- Heavy machinery
- Industrial pumping systems
- Main distribution systems
- Generator connections
- Commercial-industrial buildings
120mm² Armoured Cable for Commercial Buildings
Large commercial buildings may have significant electrical demand.
The cable can be considered for suitable distribution systems serving:
- Hotels
- Supermarkets
- Shopping complexes
- Office buildings
- Event centres
- Restaurants
- Commercial warehouses
- Business complexes
- Large residential developments
Professional cable sizing should be completed before installation.
120mm² Armoured Cable for Construction Projects
Construction projects often require robust permanent electrical infrastructure.
The C.DIVINE 120mm² 4-core SWA cable may be considered for:
- Main power distribution
- Building electrical infrastructure
- Estate development
- Industrial construction
- Commercial buildings
- Factory projects
- Infrastructure projects
Correct cable routing, support, termination, protection, and earthing are important during installation.
Where to Buy 120mm² 4Core Armoured Cable in Lagos Nigeria
If you are searching Google for:
- 120mm² X 4Core Armoured Cable Lagos
- 120mm² 4 Core SWA Cable Nigeria
- 120mm² XLPE Copper Cable
- 120mm² Copper Armoured Cable
- 120mm² PVC SWA Cable
- 120mm² Low Voltage Armoured Cable
- 120mm² Power Cable Nigeria
- 600/1000V Armoured Cable Lagos
- 4 Core Armoured Cable Supplier Lagos
- Original SWA Cable Nigeria
- Industrial Electrical Cable Lagos
- C.DIVINE Armoured Cable
verify the complete cable specification before purchasing.
For large electrical projects, buyers should confirm:
- Copper conductor
- 120mm² conductor size
- Four-core construction
- Voltage rating
- XLPE insulation
- SWA armour
- PVC outer sheath
- Cable diameter
- Cable length
- Manufacturer
- Applicable standard
- Test documentation
- Certification where applicable
120mm² vs 95mm² 4Core Armoured Cable
A 120mm² conductor has a larger cross-sectional area than a 95mm² conductor.
The choice between 95mm² and 120mm² should be based on engineering calculations.
Factors to consider include:
- Design current
- Voltage drop
- Cable length
- Installation method
- Ambient temperature
- Cable grouping
- Short-circuit requirements
- Protective-device coordination
Choosing the larger cable is not automatically better if the electrical design does not require it.
120mm² vs 70mm² 4Core Armoured Cable
The 120mm² conductor is significantly larger than 70mm².
For electrical systems with higher design currents or demanding voltage-drop requirements, a larger conductor may be necessary.
However, cable selection should always be based on the complete electrical design.
Professional Installation of 120mm² SWA Cable
Because 120mm² armoured cable is a large and heavy electrical cable, installation should be performed by qualified electrical professionals with suitable tools and equipment.
Use Correct Cable Glands
Select SWA glands appropriate for the cable construction and outside diameter.
Use Suitable Cable Lugs
Use appropriately rated lugs for the 120mm² copper conductors.
Armour Earthing
The steel armour should be correctly incorporated into the project’s earthing and bonding system.
Observe Minimum Bending Radius
Follow the manufacturer’s specified minimum bending radius.
Provide Proper Cable Support
The cable should be adequately supported to reduce mechanical strain.
Correct Circuit Protection
Protective devices must be properly coordinated with the cable and connected load.
Electrical Testing
The completed installation should be inspected and appropriately tested before energization.
Cable Sizing Considerations for 120mm² Armoured Cable
A 120mm² cable should not be selected based solely on the equipment’s stated power rating.
Current-Carrying Capacity
Determine the design current and compare it with the cable’s applicable ampacity under actual installation conditions.
Voltage Drop
Long cable runs can result in voltage drop. This should be calculated during the electrical design.
Installation Method
The cable rating can vary depending on whether it is installed underground, in ducts, on trays, or in another arrangement.
Ambient Temperature
Higher ambient temperatures can affect permissible cable loading.
Cable Grouping
Multiple cables installed together may require appropriate derating.
Short-Circuit Withstand
The cable must be suitable for the prospective fault current and protection-clearing time.
Protective Devices
Circuit breakers and other protection should be coordinated with the cable.
Benefits of XLPE/SWA/PVC Copper Power Cable
Copper Conductors
Provide good electrical conductivity for suitable power-distribution systems.
XLPE Insulation
Provides electrical insulation around each conductor.
Steel Wire Armour
Provides additional mechanical protection.
PVC Sheath
Provides external protection around the cable assembly.
Four-Core Construction
Provides four insulated conductors in a single cable.
Robust Fixed Installation
The XLPE/SWA/PVC construction is widely used for suitable fixed low-voltage power-distribution applications.
Frequently Asked Questions
What is a 120mm² X 4Core armoured cable?
It is a four-core armoured power cable with a nominal conductor cross-sectional area of 120mm² per core. The C.DIVINE product is specified with copper conductors, XLPE insulation, SWA armour, and PVC outer sheath.
What does 120mm² mean?
120mm² refers to the nominal cross-sectional area of each conductor.
What does 4Core mean?
4Core means the cable contains four individual insulated conductors.
Is the conductor copper?
Yes, the product specification identifies the conductor as CU copper.
What does SWA mean?
SWA means Steel Wire Armour, which provides additional mechanical protection around the insulated cable.
What does XLPE mean?
XLPE stands for Cross-Linked Polyethylene, a commonly used insulation material for power cables.
What does PVC mean?
PVC means Polyvinyl Chloride, commonly used as the external cable sheath.
Is 120mm² a low-voltage cable?
When specified as 600/1000V, it is a low-voltage power cable intended for compatible systems within its rated voltage.
Can 120mm² SWA cable be used underground?
SWA cables can be suitable for appropriate underground fixed installations, provided the cable construction, environmental conditions, installation method, and applicable requirements are suitable.
Can 120mm² 4Core SWA cable be used for generators?
It may be suitable for generator power distribution when calculations confirm compatibility with the generator’s output, connected load, cable length, voltage drop, installation method, and protection system.
Is 120mm² better than 95mm²?
Not automatically. The appropriate conductor size depends on the electrical design and installation conditions.
Where can I buy 120mm² 4Core Armoured Cable in Lagos?
Customers searching for 120mm² X 4Core Armoured Cable in Lagos Nigeria can contact C.DIVINE electrical cable suppliers to confirm availability, specifications, pricing, cable length, and delivery options.
Order 120mm² X 4Core Armoured Cable – C.DIVINE
The 120mm² X 4Core PVC SWA Armoured Cable 600/1000V XLPE CU Power Cable – C.DIVINE is a heavy-duty four-core copper armoured cable designed for suitable fixed low-voltage electrical power-distribution installations.
With its combination of 120mm² copper conductors, XLPE insulation, Steel Wire Armour, and PVC outer sheath, it provides a robust construction for appropriately engineered industrial, commercial, construction, generator, estate, infrastructure, and other fixed electrical applications.
For customers searching online for 120mm² 4 Core Armoured Cable, 120mm² SWA Cable Nigeria, 120mm² XLPE Copper Cable, 120mm² PVC Armoured Cable, 600/1000V Armoured Power Cable, or where to buy original electrical cables in Lagos Nigeria, C.DIVINE is a suitable product option to consider.
Before purchasing, confirm the exact manufacturer’s technical specifications, applicable standard, conductor material, cable construction, cable length, certification/test documentation, and installation requirements.
Cable sizing, installation, termination, earthing, circuit protection, and testing should be carried out by a qualified electrical professional.
